Поз.
Артикул
Описание
5

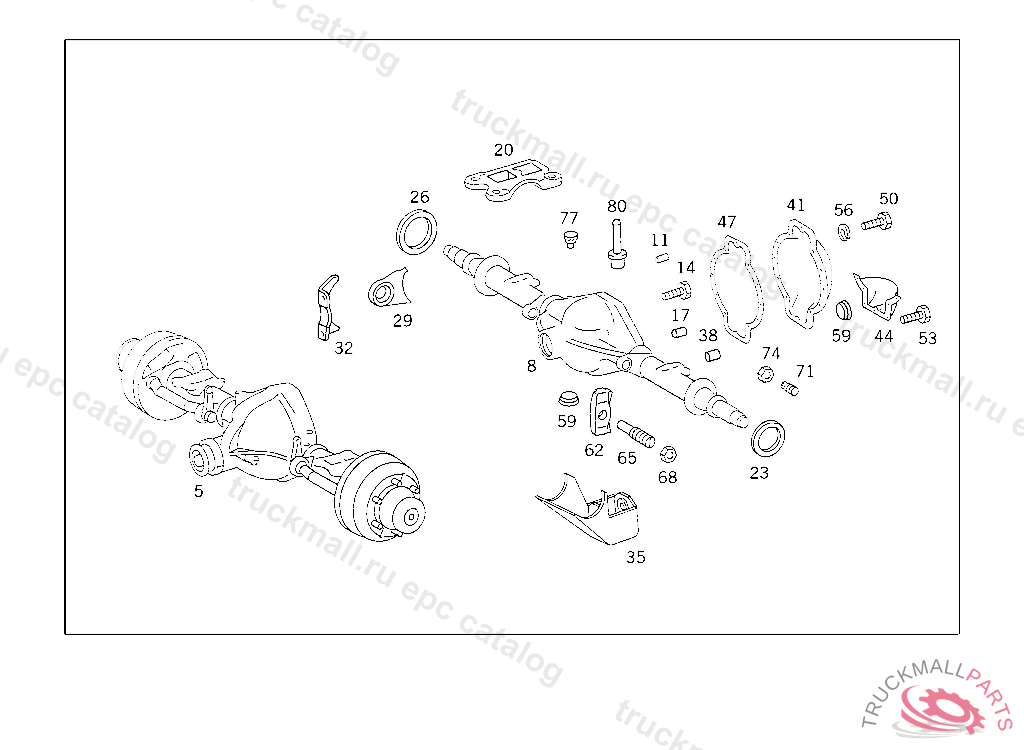

REAR AXLE WITH BRAKES 43:7
8
AXLE HOUSING WITH REAR AXLE TUBES
8
AXLE HOUSING WITH REAR AXLE TUBES
11
CYLINDRICAL PIN
14
SCREW BEARING COVER TO AXLE HOUSING M 16X95
14
SCREW BEARING COVER TO AXLE HOUSING
20
BEARING BRACKET
23
OIL COLLECTOR
26
THRUST RING
38
PIN AXLE TUBE TO AXLE HOUSING
41
COVER REAR AXLE HOUSING
41
COVER REAR AXLE HOUSING
47
GASKET
47
GASKET
53
SCREW COVER TO AXLE HOUSING M 10X20, TO 673 350 00 21, 02 21
53
SCREW COVER TO REAR AXLE HOUSING TO 615 350 04 21,615 351 07 08
59
SCREW PLUG HOUSING,BOTTOM,183596
59
SCREW PLUG HOUSING,BOTTOM,183596
62
SLIDE , NOT USED
65
SET SCREW RING GEAR CHECK
68
NUT SET SCREW
71
SCREW
74
NUT ELECTRONIC ACCELERATOR PEDAL
77
VALVE
80
FITTING ,347245
