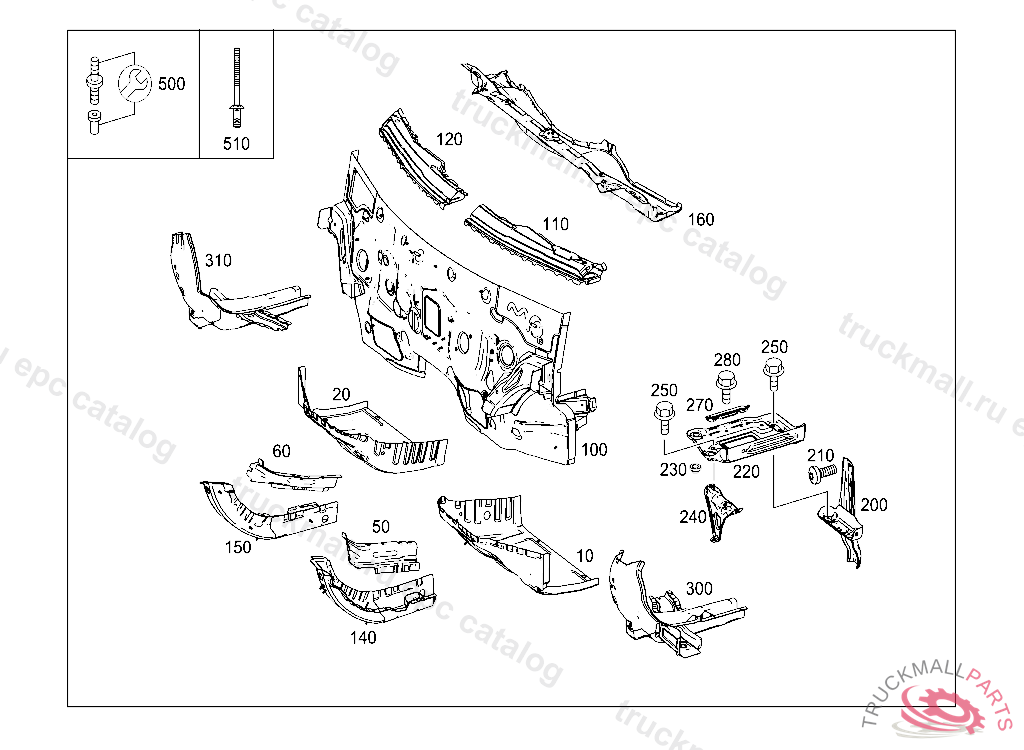

Mercedes N910105008008 - БОЛТ М8

10

FIREWALL BOTTOM LEFT

20

FIREWALL BOTTOM RIGHT

50

ATTACHMENT ANGLE BRACKET FIREWALL BOTTOM LEFT

60

ATTACHMENT ANGLE BRACKET FIREWALL BOTTOM RIGHT

100

FIREWALL

100

FIREWALL

110

CROSS MEMBER BELOW WINDSHIELD,LEFT

120

CROSS MEMBER BELOW WINDSHIELD,RIGHT

140

CONNECTING CARRIER FIRE WALL,INSIDE RIGHT

150

CONNECTING CARRIER FIREWALL, INSIDE RIGHT

160

AIR/WATER DUCT

200

SUPPORT BATTERY

210

HEXALOBULAR BOLTM8X16

220

BATTERY FRAME

230

ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808

240

BRACKET BATTERY FRAME

270

MOUNTING RAIL BATTERY

300

PEDAL FLOOR PANEL LEFT

310

PEDAL FLOOR PANEL RIGHT

500

SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE

510

BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
