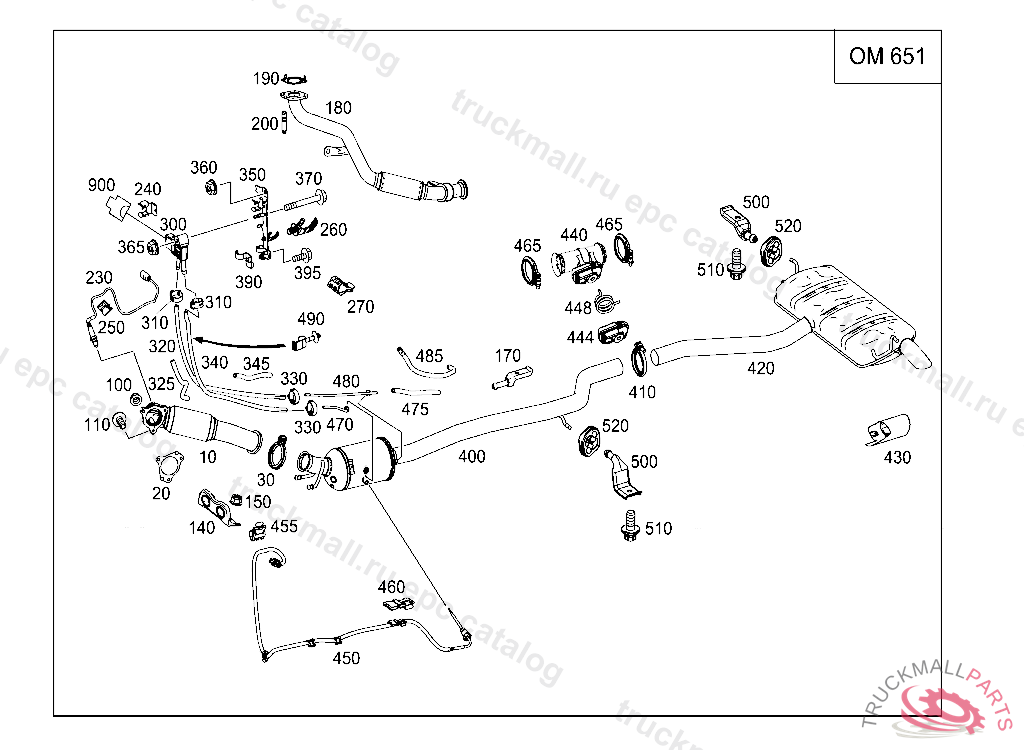

Поз.
Артикул
Описание
10
EXHAUST GAS LINE FRONT
20
FLANGE GASKET FRONT
30
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
30
PROFILE CLAMP F EXHAUST FRONT EXHAUST PIPE TO REAR EXHAUST PIPE, J 20130121 V 00000020130404
30
PROFILE CLAMP F EXHAUST EXHAUST LINE TO EXHAUST PIPE, FRONT
30
PROFILE CLAMP F EXHAUST FRONT EXHAUST PIPE TO REAR EXHAUST PIPE, J 20130121 V 00000120130404, Replaced By: A0009953433
100
HEXAGON NUT W FLANGE EXHAUST PIPE TO TURBOCHARGER
110
BOLT CATALYST TO BRACKET M8X20
140
BRACKET FRONT EXHAUST PIPE SUSPENSION
150
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
BRACKET FRONT
180
EXHAUST GAS LINE EXHAUST GAS RECIRCULATION LINE
190
METAL SEAL WITH BEAD EXHAUST GAS RECIRCULATION VALVE TO EXHAUST HEAT EXCHANGER
200
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
230
LAMBDA PROBE UPSTREAM CATALYTIC CONVERTER, J 20121221 V 00000120130404
230
LAMBDA PROBE UPSTREAM CATALYTIC CONVERTER, J 20121221 V 00000020130404
240
CLIP OXYGEN SENSOR LEAD MOUNTING
250
BRACKET SENSOR LINE FASTENING 18 X 24 MM, J 20121221 V 00000120130404
260
CLAMP
270
CLIP OXYGEN SENSOR
300
PRESSURE SENSOR AT SPLASH WALL
300
PRESSURE SENSOR TO ENGINE
310
HOSE CLAMP HOSE ATTACHMENT
320
EXHAUST GAS HOSE LONG
320
EXHAUST GAS HOSE LONG
325
EXHAUST GAS HOSE FRONT
330
HOSE CLAMP FUEL LINE TO FUEL FILTER
340
EXHAUST GAS HOSE SHORT
340
EXHAUST GAS HOSE SHORT
345
EXHAUST GAS HOSE REAR
350
BRACKET PRESSURE SENSOR
360
NUT , Replaced By: N913023006001
365
NUT , Replaced By: N913023006001
370
HEXALOBULAR BOLT. SCREW CYLINDER HEAD COVER TO CYLINDER HEAD M 6X30
390
BRACKET EXHAUST HOSE
395
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
400
EXHAUST GAS LINE CENTRAL, J 20099420131017
400
EXHAUST GAS LINE CENTRAL
400
EXHAUST GAS LINE CENTRAL, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
400
EXHAUST SYSTEM CENTRAL, J 20099520131016
400
EXHAUST SYSTEM CENTRAL
410
PIPE CLAMP F EXHAUST SYS.O 65 MM
420
EXHAUST GAS LINE REAR, Replaced By: A1764905381
420
EXHAUST GAS LINE REAR, Replaced By: A1764905281
420
EXHAUST SYSTEM
420
EXHAUST SYSTEM REAR, Replaced By: A1764909581
420
EXHAUST SYSTEM REAR
420
EXHAUST SYSTEM REAR
420
EXHAUST SYSTEM REAR
420
EXHAUST SYSTEM REAR
430
TAIL PIPE COVER LEFT
430
TAIL PIPE COVER RIGHT
440
THROTTLE VALVE FRONT EXHAUST PIPE TO REAR EXHAUST PIPE
444
EXHAUST FLAP CONTROLLER THROTTLE VALVE
448
SPIRAL SPRING FLAP CONTROL
450
TEMPERATURE SENSOR TEMPERATURE SENSOR TO CATALYTIC CONVERTER
450
TEMPERATURE SENSOR TEMPERATURE SENSOR IN CATALYTIC CONVERTER
450
TEMPERATURE SENSOR TEMPERATURE SENSOR TO CATALYTIC CONVERTER
455
CLAMP LINE MOUNTING
460
CLIP CABLE HARNESS TO ROOF RAIL
460
BRACKET
465
PROFILE CLAMP F EXHAUST EXHAUST LINE TO EXHAUST PIPE, FRONT
470
PRESSURE LINE SHORT, UPSTREAM OF PARTICULATE FILTER
470
PRESSURE LINE SHORT, UPSTREAM OF PARTICULATE FILTER
475
EXHAUST GAS HOSE SHORT
480
PRESSURE LINE LONG, DOWNSTREAM OF PARTICULATE FILTER
480
PRESSURE LINE LONG, DOWNSTREAM OF PARTICULATE FILTER
485
EXHAUST GAS HOSE SHORT
490
CABLE CLAMP LINE TO BRACKET
500
SUSPENSION F EXHAUST LINE REAR EXHAUST SYSTEM
500
BRACKET CENTRAL EXHAUST SYSTEM
510
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
520
SUSPENSION RING REAR MUFFLER ON FIXTURE
900
COUPLING HOUSING DIFFERENTIAL PRESSURE SENSOR 3-PIN SLK2.8,B28/17
