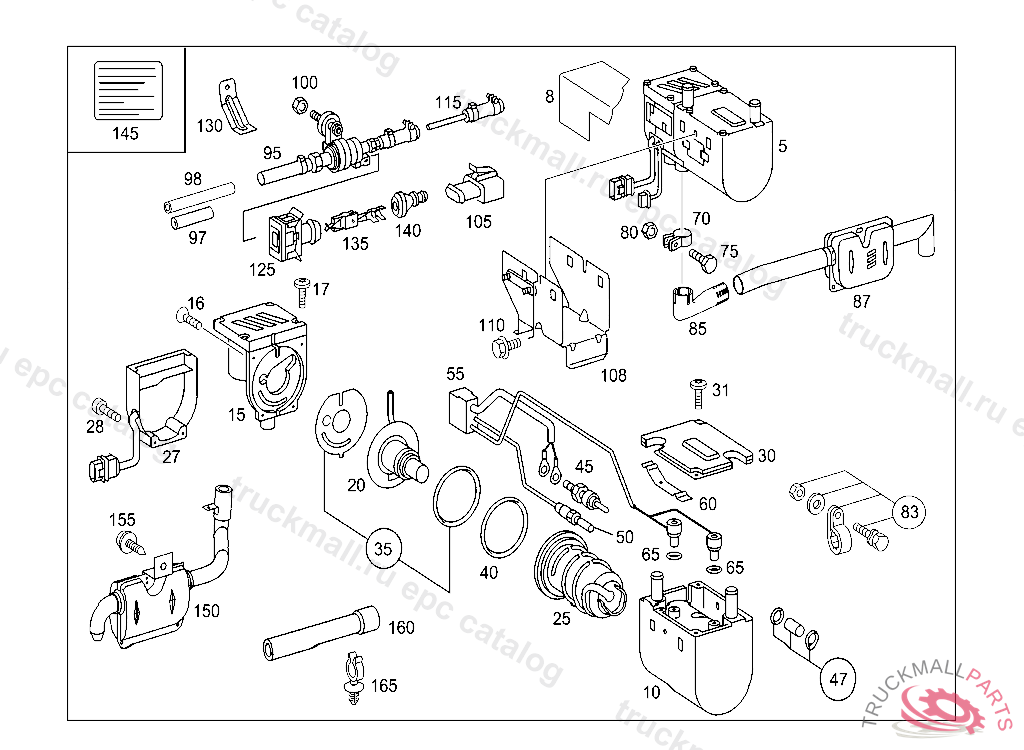

Поз.
Артикул
Описание
5
HEATER UNIT , R 57176520030829
5
HEATER UNIT. AUXILIARY HEATER
8
INSULATION LEFT
8
INSULATION AGAINST MOISTURE
10
HOUSING
15
BLOWERTO 638 835 12 01
16
SCREW MOUNTING OF INSTRUMENT PANEL
17
SCREW
20
PIPE LINE
25
HEAT EXCHANGER , Replaced By: A0038357101
27
CONTROL UNIT
27
CONTROL UNIT
28
SCREW MOUNTING OF INSTRUMENT PANEL
28
SCREW SOLENOID VALVE TO VALVE
28
CAP BOLT CONTROL UNIT TO BLOWER M5X65,M 5X65
28
SCREW NOZZLE TO COVERING
30
COVERTO 638 835 12 01,13 01
31
HEXALOBULAR BOLT ELECTRICAL COMPARTMENT M5X25
31
SCREW REFLECTOR TO BRACKET
35
SEAL
40
SEAL RING
45
HEATER PLUG
47
FILTERTO 638 835 13 01
50
TEMPERATURE SENSOR (FEELER),FLAME CONTROL
55
TEMPERATURE SENSOR HEAT EXCHANGER TEMPERATURE SENSOR
60
SPRING
65
SEAL RING
70
CLAMP PUMP TO BRACKET
70
CLAMP DRAG LINK END TO DRAG LINK
75
SCREW
80
HEXAGON NUT
80
NUT REINFORCEMENT TO BRACKET
83
BRACKET
85
PIPE LINE
87
MUFFLER
95
PUMP METERING PUMP
97
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
98
HOSE
100
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
100
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
105
PIN BUSHING HOUSING 8-POLE
108
BRACKET
110
HEXAGON HEAD BOLT LINE MOUNTING M6X10
115
PIPE LINE , Replaced By: A0004767326, +001A4639971782
125
PLUG INJECTION VALVE
130
BRACKET METERING PUMP
135
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
140
CAP. BOOT ,126372
145
OPERATING PLATE
150
PIPE LINE. PIPELINE HEATER BOOSTER
155
TAPPING SCREW BRACKET MOUNTING 6.3X13
160
AIR INTAKE PIPE AT HEATER
165
BRACKET VALVE TO BRACKET
