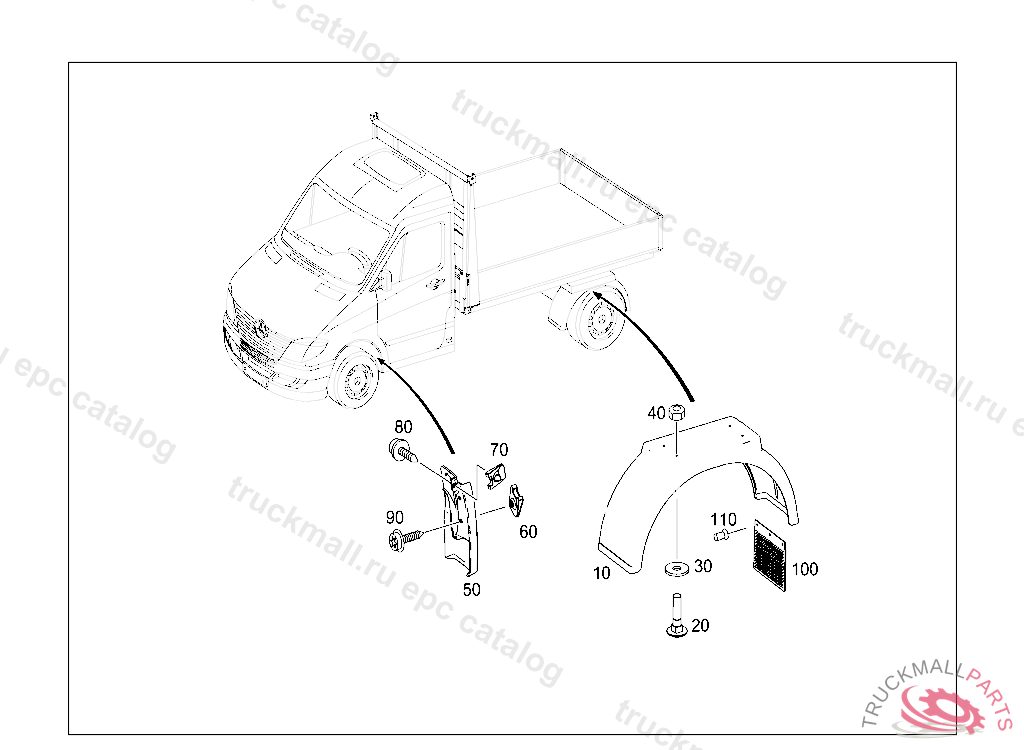

Поз.
Артикул
Описание
10
FENDER
20
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
20
BOLT FENDER TO PLATFORM
30
WASHER BRACKET TO CAB REAR PANEL
30
WASHER PUMP TO CONSOLE
40
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
40
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
50
SPLASH GUARD FRONT RIGHT, 9051QFT906A0100 BLACK
50
SPLASH GUARD FRONT LEFT, 9051QFT906A0100 BLACK
50
SPLASH GUARD FRONT LEFT, 9051QFT906A0100 BLACK
50
SPLASH GUARD FRONT RIGHT, 9051QFT906A0100 BLACK
60
LOCK NUT. LOCK
70
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
80
TAPPING SCREW MOUNTING PARTS 4.8X19
90
TAPPING SCREW MOUNTING PARTS 4.8X19
100
SPLASH GUARD REAR RIGHT, 9051QFT906A0100 BLACK
100
MUD APRON REAR
100
SPLASH GUARD REAR LEFT, 9051QFT906A0100 BLACK
110
RIVET
