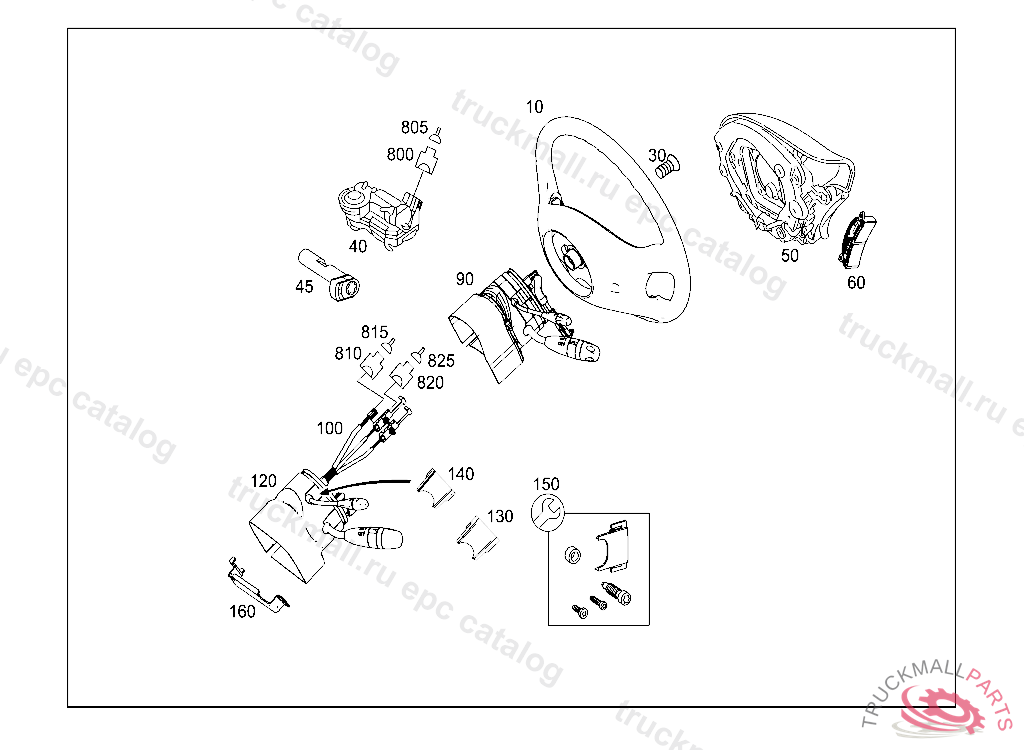

Поз.
Артикул
Описание
10
STEERING WHEEL , 9E37QFT906A0250 BLACK
10
STEERING WHEEL , Replaced By: A9064640201
10
STEERING WHEEL , Replaced By: A9064640101
10
STEERING WHEEL , 9E37QFT906A0250 BLACK
10
STEERING WHEEL
30
SCREW W HEXAGON SOCKET. SCREW STEERING WHEEL TO STEERING COLUMN
40
STEERING LOCK
40
STEERING LOCK STEER. COLUMN JACKET TUBE, E 00000120000101802 A 17199120010928802 THEFT-RELEVANT PART
40
STEERING LOCK , Replaced By: A9064620130
40
CTRL. UNIT STEERING LOCK STEER. COLUMN JACKET TUBE, E 00000120000101802 A 17199120010928802, Replaced By: A0375456132
45
PIN STEERING LOCK TO STEERING COLUMN JACKET TUBE
50
DRIVER AIRBAG , 9E84QFT906A0260 BLACK
50
INSULATION STEERING WHEEL LESS AIR BAG, 9E84QFT906A0260 BLACK
50
AIR BAG
50
AIR BAG
50
AIR BAG
50
AIR BAG
50
AIR BAG
50
PAD LESS AIR BAG
50
AIR BAG
60
PUSH-BUTTON SWITCH ONE PAIR
60
SWITCH ONE PAIR
90
LU CONTROL UNIT
90
STR. COLUMN TUBE SWITCH
90
STR. COLUMN TUBE SWITCH
100
CONTACT SPIRAL WITH STEERING ANGLE SENSOR
100
CONTACT SPIRAL , Replaced By: A9064640318
100
CONTACT SPIRAL
120
PANELING STEER. COLUMN JACKET TUBE
120
PANELING STEER. COLUMN JACKET TUBE
130
PANEL BLINKER SWITCH
140
PANEL TEMPOMAT SWITCH
150
REPAIR KIT COVERINGS AND SCREWS
160
LOCKING MECHANISM
800
PLUG FUSE AND RELAY BOX NEAR DRIVER'S SEAT, A 394036 X 001165 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 WITH CODE 808 EXCEPT CODE A 421718 A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
805
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
805
CONTACT SPRING. PIN BUSHING FRAME PLUG-CONNECTION
805
CONTACT SPRING0.5-1.0 MM2
810
PIN BUSHING HOUSING WARNING DEVICE
810
PLUGBUSKNOTEN (DACH)
815
CONTACT BUSHINGR 27, 0.75 MM2
820
LOCKING MECHANISM JACKET TUBE MODULE N80
820
PLUG JACKET COLUMN MODULE 14-PIN 14 PIN,N80
820
PLUG SOCKET JACKET TUBE MODULE 14 PIN,N80.2
825
FEMALE CONTACT CONTROL MODULE SAM/SRB FRONT 0.25-0.5 MM2 MLK1.2,(PIN 0,8 MM) N10/1
825
CRIMP RECEPTACLE CONTACT JACKET TUBE MODULE 0.5 MM2 MLK1.2S,N80
825
CONTACT SPRING CONTROL MODULE SAM/SRB FRONT 0.75-1.0 MM2 MLK1.2,(PIN 0,6 MM) N10/1
