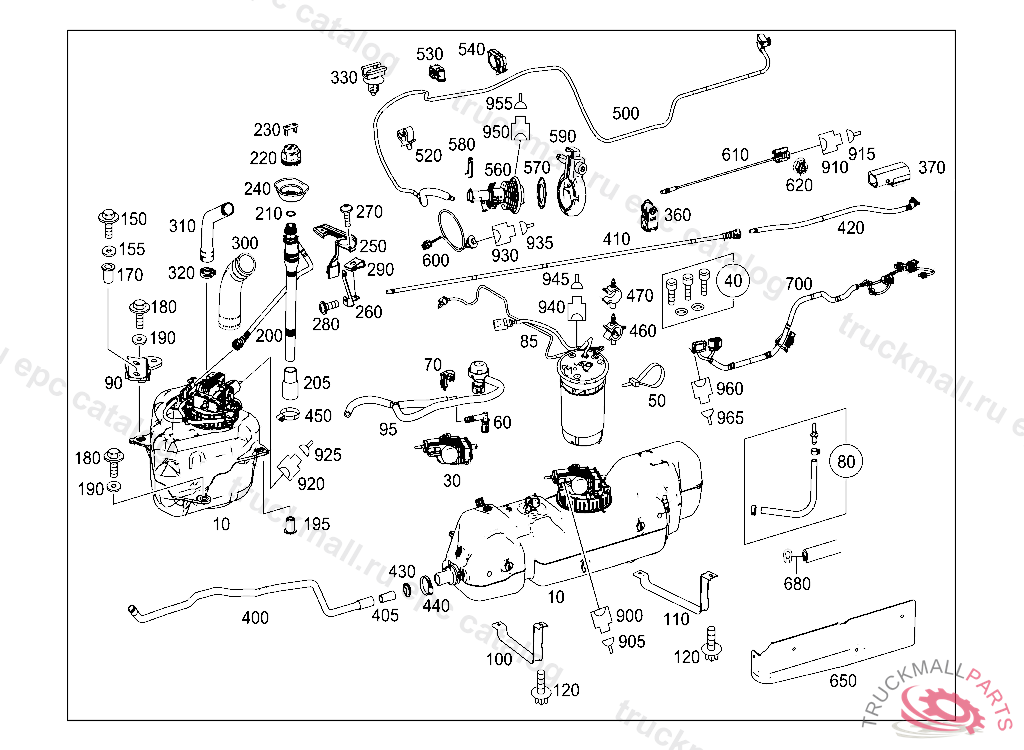

Поз.
Артикул
Описание
10
REDUCING AGENT TANK ADBLUE
10
NOX REDUCING AGENT TANK ADBLUE
10
NOX REDUCING AGENT TANK ADBLUE
30
RS FUEL DELIVERY MODULE REPAIR KIT
30
FUEL DELIVERY MODULE WITH SEALING RING REPAIR KIT, Replaced By: A0024706894
30
FUEL DELIVERY MODULE WITH SEALING RING REPAIR KIT, Replaced By: A0024705794
30
RS FUEL DELIVERY MODULE REPAIR KIT
40
DS FUEL DELIVERY MODULE SEAL RING, S 55051320101223
40
RS FUEL DELIVERY MODULE SEAL RING, N 47718620101231
50
CABLE STRAP LINE TO TANK
60
VENTILATION NECK
70
BRACKET VALVE
80
DRAIN VALVE
85
HEATING UNIT
85
HEATING UNIT
90
BRACKET RESERVOIR
90
BRACKET RESERVOIR
95
VENT LINE
95
VENT LINE
100
TENSIONING STRAP FRONT
110
TENSIONING STRAP REAR
120
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
150
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
150
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
150
SCREW BRACKET TO CROSS CONNECTION STRUT
155
WASHER BRACKET TO CAB REAR PANEL
170
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
180
SCREW BRACKET TO CROSS CONNECTION STRUT
180
HEXAGON HEAD BOLT TANK TO CROSS MEMBER M8X35
190
WASHER BRACKET TO CAB REAR PANEL
195
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
200
FILLER NECK
200
FILLER NECK
200
TANK FILLER NECK
200
FILLER NECK , Replaced By: A9064700520
205
FUEL HOSE BETWEEN FILLER NECK AND RESERVOIR
210
SEAL RING FILLER NECK
220
FUEL FILLER CAP , S 76930620130619 20440404, Replaced By: A9064700905
220
TANK FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. S 76930620130619 20440404, Replaced By: A9064701705
220
TANK FILLER CAP
220
TANK FILLER CAP
230
TANK FILLER CAP
240
COLLECTING PAN
240
COLLECTING BOWL
250
BRACKET FILLER NECK
260
BRACKET FILLER NECK
270
BOLT PANELLING TO DOOR, A 18446520080530 L 01087820080531 V 00067820080531 F 13037120080131 R 03697120080521
280
HEXALOBULAR BOLT BUMPER COVERING M6X20
290
LOCK NUT. SPRING NUT MOUNTING PARTS
300
MOLDED HOSE TO RESERVOIR
310
MOLDED HOSE TO RESERVOIR
310
MOLDED HOSE TO RESERVOIR
320
CLAMP25-40X13 MM
320
CLAMP
330
BRACKET PLUG MOUNTING 6.5 - 7 MM
360
LINE HOLDER FUEL LINE MOUNTING
370
PLUG AT BLOWER 2-PIN MCP2, A 02588520100630
400
FILLER PIPE
400
FILLER PIPE , Replaced By: A9064700926
405
FUEL HOSE
410
LINE BREATHER LINE, Replaced By: A9064704264
410
VENT LINE
420
LINE BREATHER LINE
430
GROMMET ANT-CHAFE PROTECTION TO LONGITUDINAL MEMBER
440
CLAMP
450
LOOM TIE
460
CLAMP. EXTENDABLE SPACER BREATHER LINE
470
BRACKET LINE MOUNTING 11 MM
500
FUEL LINE FEED LINE
500
ADDITIVE LINE FEED LINE
500
FUEL FEED LINE
520
LINE FASTENER FEED LINE FASTENING
530
LINE HOLDER FUEL LINE MOUNTING
530
LINE HOLDER FUEL LINE MOUNTING
540
LINE HOLDER
560
INJECTION NOZZLE , Replaced By: A1644900413
560
INJECTION NOZZLE ADDITIVE
560
INJECTION NOZZLE ADDITIVE , Replaced By: A1644900513
560
INJECTION NOZZLE ADDITIVE
570
PROFILE SEAL BETWEEN INJECTION NOZZLE AND FRONT OF EXHAUST PIPE
580
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
590
PROFILE CLAMP F EXHAUST INJECTION NOZZLE AT FRONT OF EXHAUST PIPE
590
PROFILE CLAMP F EXHAUST INJECTION NOZZLE, A 63173920100706
600
ADAPTER TO INJECTION NOZZLE
610
NOX SENSOR
610
NOX SENSOR , A 29529920100630, Replaced By: A0009057000
610
NOX SENSOR NOX SENSOR
610
NOX SENSOR
610
NOX SENSOR , Replaced By: A0009057000
610
NOX SENSOR
620
NUT BRACKET TO BODY SHELL M6
650
SCREENING PLATE
680
EDGE GUARD SECTION , ORDER BY THE METER
700
ELECTRICAL WIRING HARNESS , S 40654820090721
700
WIRING HARNESS , S 40654720090721
900
PIN BUSHING HOUSING BACK-UP LAMP SWITCH 2-PIN SLK2.8
900
PLUG PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 5-PIN SLK2.8,X36/3, ATTN.: FROM IDENT. A 237174, F 177685, R 028782 TO IDENT. A 30 4093, F 232212, R 045744, MIXED INSTALLATION POSSIBLE NOTE CONTACTING, NOT VALID FOR 4-PIN CONNECTOR
900
PIN BUSHING HOUSING. PLUG 4-POLE
900
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
900
PLUG4-PIN MLK1.2
905
CONTACT SPRINGTO A 038 545 76 28
905
GASKETTO 001 540 99 81
905
GASKET
905
CONTACT SPRING. PLUG SOCKET0,5-1,0
905
CRIMP RECEPTACLE CONTACT ,V 215932
905
CONTACT SPRING. PLUG SOCKET1,0-2,5
905
CONTACT SPRING0.22-0.5 MM2 SLK2.8
905
BLIND PLUG. GASKET WITHE ELB 4
905
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
905
GASKET ALTERNATOR 5.2 MM,G2
905
CONTACT BUSHING4.0-6.0 MM2 DFK3
905
CRIMP TML. PIN CONTACT WITH SINGLE-WIRE SEAL 0.5 MM2 MLK1.2
905
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
905
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
905
BLIND PLUG ORANGE,V 215932
905
CONTACT SPRING1.5-2.5 MM2
905
CRIMP RECEPTACLE CONTACT WITH SINGLE-WIRE SEAL 0.22-0.35 MM2 MLK1.2S
905
SEAL. GASKET YELLOW,V 215932
910
COUPLING HOUSING ACCELERATOR MODULE 5-PIN MLK1.2,A68
915
GASKETTO 001 540 99 81
915
CRIMP RECEPTACLE CONTACT WITH SINGLE-WIRE SEAL 0.22-0.35 MM2 MLK1.2S
915
BLIND PLUG ORANGE,V 215932
915
BLIND PLUG. GASKET WITHE ELB 4
915
CRIMP RECEPTACLE CONTACT ,V 215932
915
SEAL. GASKET YELLOW,V 215932
920
PLUG4-PIN MLK1.2
925
SEAL. GASKET YELLOW,V 215932
925
CRIMP TML. PIN CONTACT WITH SINGLE-WIRE SEAL 0.5 MM2 MLK1.2
925
BLIND PLUG ORANGE,V 215932
925
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
930
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
935
GASKETTO 001 540 99 81
935
CRIMP RECEPTACLE CONTACT ,V 215932
935
BLIND PLUG. GASKET WITHE ELB 4
940
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
945
GASKETTO 001 540 99 81
945
SEAL. GASKET YELLOW,V 215932
945
BLIND PLUG. GASKET WITHE ELB 4
945
CRIMP RECEPTACLE CONTACT ,V 215932
945
BLIND PLUG ORANGE,V 215932
945
CRIMP RECEPTACLE CONTACT WITH SINGLE-WIRE SEAL 0.22-0.35 MM2 MLK1.2S
945
CONTACT SPRING1.5-2.5 MM2
950
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
955
SEAL. GASKET YELLOW,V 215932
955
CONTACT SPRING1.5-2.5 MM2
955
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
955
CRIMP TML. PIN CONTACT WITH SINGLE-WIRE SEAL 0.5 MM2 MLK1.2
960
PIN BUSHING HOUSING 10-POLE
960
CLUTCH HOUSING CONNECTOR, PARKTRONIC, FRONT BUMPER 8-PIN MLK1.2,X26/27, J 53092220070910808
960
PLUG HOUSING LEFT FRONT LIGHTING UNIT 9 PIN SLK2.8,E1
965
WIRE SEAL
965
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
965
GASKET. BLIND PLUG
965
CONTACT SPRING WITH DETENT 1.0-2.5 MM2
965
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
965
FEMALE CONTACT OXYGEN SENSOR 0.22-0.5 MM2 MLK1.2,G3/1
965
GASKET ALTERNATOR 5.2 MM,G2
965
CONTACT SPRING. PLUG SOCKET0,5-1,0
965
CONTACT SPRING OXYGEN SENSOR 0.75-1.0 MM2 MLK1.2,G3/1
965
GASKETTO 001 540 99 81
965
CONTACT SPRING WITH DETENT 0.5-1.0 MM2
