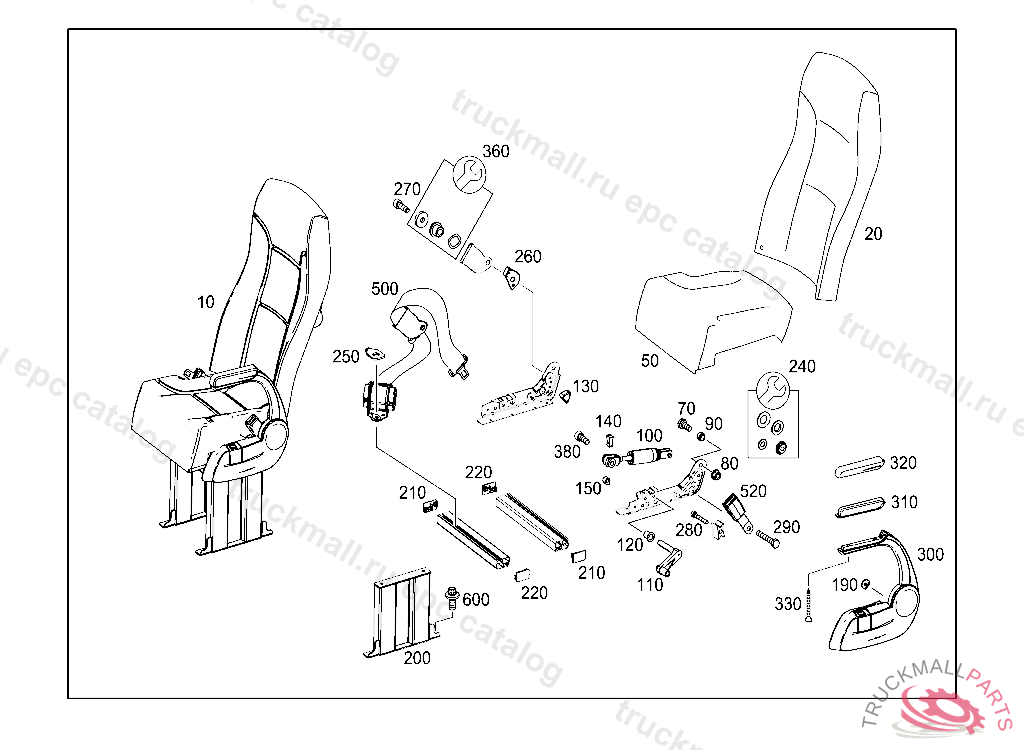

Поз.
Артикул
Описание
10
ONE SEATER BENCH 5TH SEAT ROW AT RIGHT, 20140214 9G66 VH5QFT906A0840 ANTHRACITE
10
ONE SEATER BENCH 2ND SEAT ROW, RIGHT, 20140214 9G66 VH5QFT906A0840 ANTHRACITE
10
ONE SEATER BENCH 5TH SEAT ROW AT RIGHT, 20140214 9G66 VH5QFT906A0840 ANTHRACITE
10
ONE SEATER BENCH 2ND SEAT ROW, RIGHT, 20140214 9G66 VH5QFT906A0840 ANTHRACITE
20
CUSHION COVER , 9J23QFT906A9013 ANTHRACITE
50
BACKREST COVER , 9J23QFT906A9013 ANTHRACITE
70
SCREW CLAMP TO EXHAUST PIPE
80
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
90
SPACER ELEMENT FRAME SEGMENT
100
GAS PRESSURE STRUT
110
NOTCH LEVER PNEUMATIC SPRING
120
BRACKET PNEUMATIC SPRING
130
SPACER ELEMENT FRAME SEGMENT
140
SPACER ELEMENT FRAME SEGMENT
150
SPACER ELEMENT PNEUMATIC SPRING
190
BRACKET SEAT BELT BUCKLE
200
BASE OF SEAT WALLWAY ON SIDE OF WALL
210
EDGE PROTECTION RETAINING RAIL
220
EDGE PROTECTION RETAINING RAIL
240
RS SEAT BELT LOCK BELT LOCK MOUNTING
250
GUIDE PLATE STRAP
260
FASTENING PLATE RIGHT
270
HEXALOBULAR BOLT HIGH-PRESSURE EXPANSION HOSE HOLDER M8X25, A 02352720090331, Replaced By: N000000003292
280
HEXALOBULAR BOLT BRACKET, TOP, TO BRACKET, BOTTOM
290
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
300
ARMREST
310
FILLING ARMREST
320
PROTECTIVE COVER ARMREST
330
RS COVER, ARMREST MOUNTING, COVER
360
RS SEAT BELT LOCK
380
HEXALOBULAR BOLT HOSE ATTACHMENT M8X20,M8X25, A 02352720090331
500
SEAT BELT
520
SEAT BELT LOCK
600
HEXALOBULAR BOLT FASTENING, 5TH SEAT ROW M10X20, 20140214
