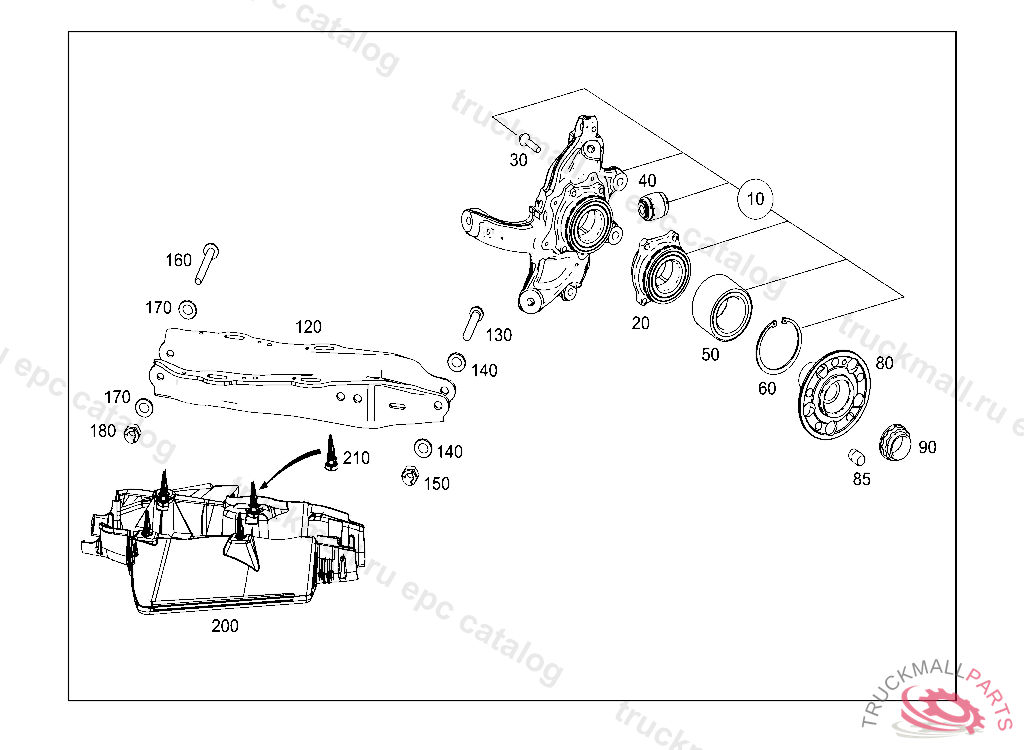

Поз.
Артикул
Описание
10
WHEEL CARRIER RIGHT
10
WHEEL CARRIER LEFT
20
WHEEL BEARING RIGHT WHEEL CARRIER, ALSO REPLACE REAR AXLE WHEEL FLANGE
30
BOLT WHEEL BEARING TO WHEEL CARRIER
40
JOINT SPRING CONTROL ARM TO WHEEL BEARING
50
WHEEL BEARING WHEEL CARRIER
60
LOCK RING DRIVE GEAR
80
REAR-AXLE WHEEL FLANGE RIGHT WHEEL CARRIER
80
FLANGE
85
PIN
90
COLLAR NUT REAR AXLE SHAFT TO HUB
90
NUT AXLE SHAFT TO REAR AXLE SHAFT FLANGE
120
SPRING LINK TO WHEEL CARRIER RIGHT
130
BOLT SPRING CONTROL ARM TO WHEEL BEARING M14X1.5X80
140
WASHER TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT
150
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
160
BOLT SPRING CONTROL ARM TO REAR SUBFRAME M12X1.5X110
160
CAP BOLT SPRING LINK TO REAR AXLE BRACKET RIGHT
170
WASHER TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT
180
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
180
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
200
COVER LEFT SPRING CONTROL ARM
200
COVER RIGHT SPRING CONTROL ARM
210
MOUNTING CLIP MOUNTING, COVERING SPRING LINK RIGHT
