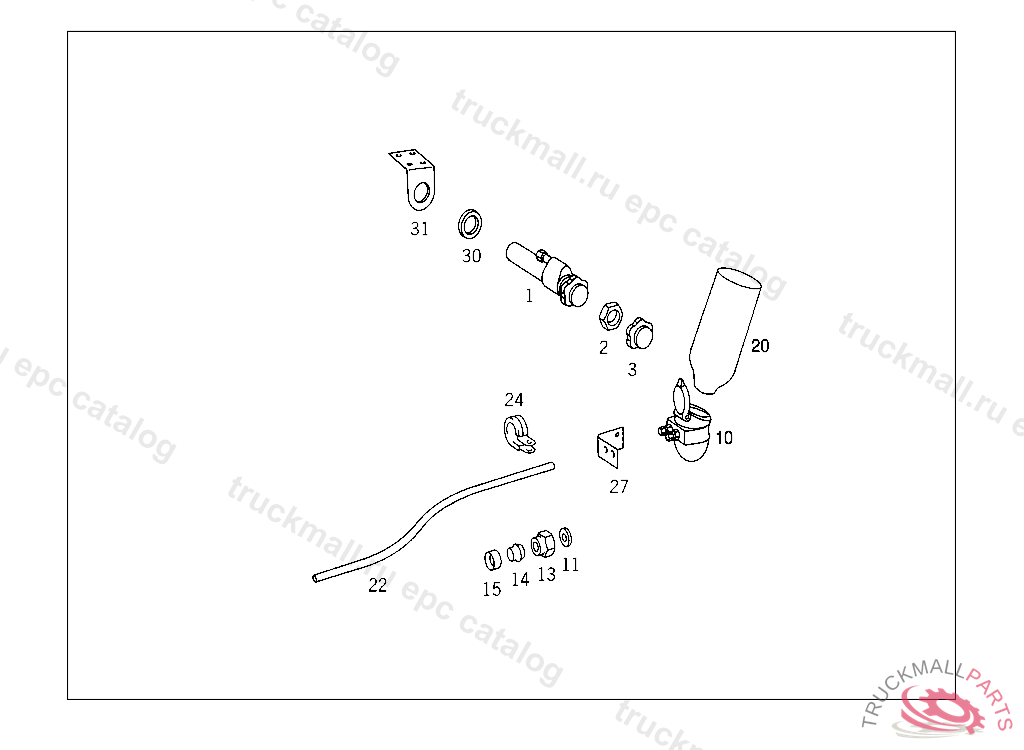

Поз.
Артикул
Описание
1
PUMP PRIMING FUEL
1
PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 162440, Replaced By: A0005502383
1
PUMP , Replaced By: A0005501083
2
NUT
2
NUT , Replaced By: A0005550372
3
HANDLE , Replaced By: A0005550440
3
HANDLE
10
PRIMER CAPSULE , Replaced By: A0005501404
10
PRIMER CAPSULE PRIMING FUEL
11
SERRATED WASHER
13
NUT
14
SEAL CONE , Replaced By: A0009949454
15
NUT , Replaced By: A0009949454
15
NUT REPAIR KIT
20
FILLING CYLINDER PRIMING FUEL
22
HOSE FUEL LINE, ORDER BY THE METER
22
HOSE FROM PRIMER CAPSULE TO SPRAY NOZZLE
22
HOSE FROM HAND PUMP TO PRIMER CAPSULE
24
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
24
CLAMP ,K 147121, Replaced By: N000000000319
24
CLAMP , Replaced By: N916016008200
27
BRACKET STARTER PILOT PUMP TO WINDOW SILL
30
WASHER , ON SPECIAL REQUEST
31
BRACKET STARTER PILOT PUMP TO WINDOW SILL
999
SHEET METAL SCREW FUEL LINE,324289
999
SHEET METAL SCREW STARTER PILOT PUMP TO WINDOW SILL
999
NUT TACHOGRAPH TO BRACKET
999
LOCK WASHER
999
SCREW STEERING COLUMN PANELLING M 5X12
999
CLIP
999
LOOM TIE LINE MOUNTING
