Поз.
Артикул
Описание
754

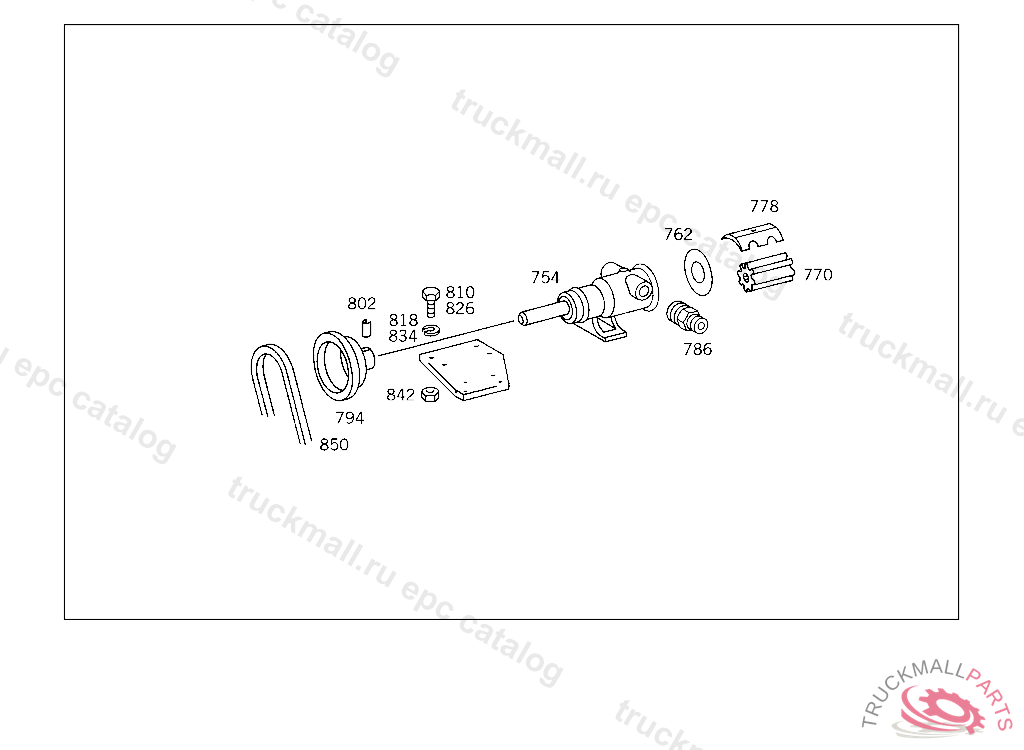

WATER PUMP *** JABSCO TYPE 6420-205
762
SEAL RING
770
IMPELLER
778
ECCENTRIC
786
FITTING
794
PULLEY
802
CLAMPING SLEEVE
810
SCREW BRACKET TO CROSS CONNECTION STRUT
810
SCREW , Replaced By: N304017008034
818
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
826
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
826
SCREW , Replaced By: A0099900101
826
SCREW , Replaced By: N000933008337
834
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
842
NUT
842
NUT , Replaced By: N304032008006
850
NARROW V-BELT
999
DRAIN COCK , Replaced By: A8469973836
999
PLUG , Replaced By: A8469970201
999
PLUG , Replaced By: A8469970101
999
NUT M14X1,5 MM
999
STUD BOLT
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SEAL RING OUTSIDE
999
SEAL RING MINOR
999
SEAL RING MAJOR
999
GASKET
999
SEAL RING
999
BEARING
999
SHAFT
999
SUPPORT
999
FLANGE
999
FLANGE
999
SCREW
