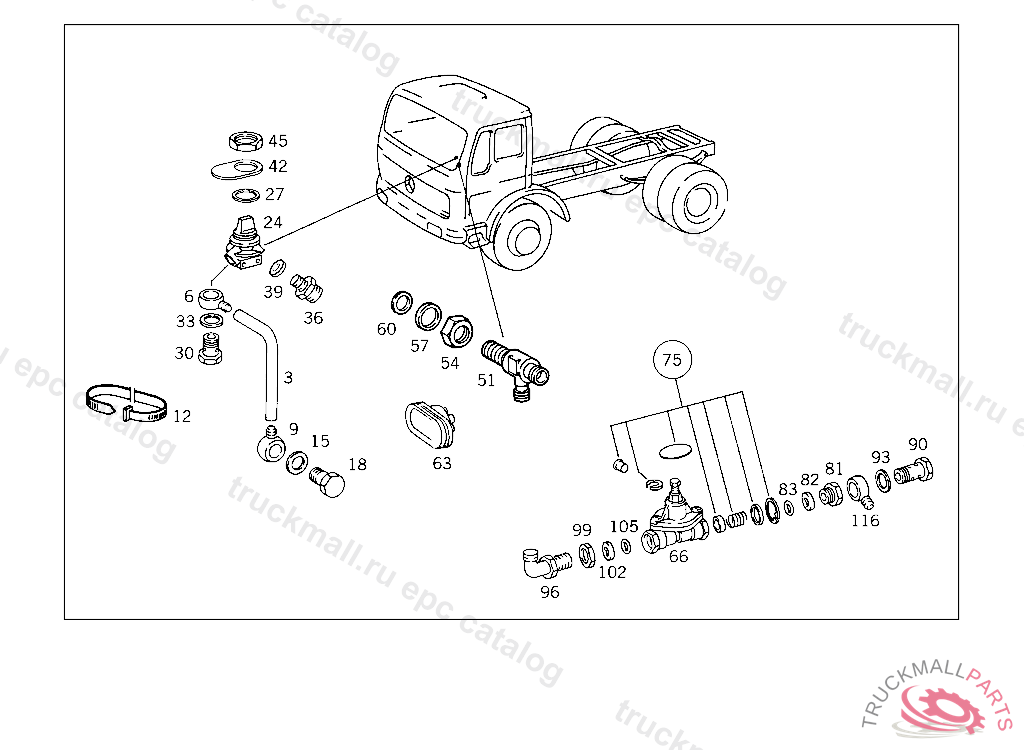

Поз.
Артикул
Описание
3
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
3
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
6
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
6
BANJO UNION , Replaced By: N915052004003
9
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
9
BANJO UNION , Replaced By: N915052004019
12
LOOM TIE
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
18
HOLLOW SCREW LINE TO OIL RADIATOR
18
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
24
VALVE 3/2-WAY BOSCH
27
WASHER 3/2-WAY VALVE TO BRACKET
30
HOLLOW SCREW LINE CONNECTION
33
SEAL RING PNEUMATIC VALVE
33
SEAL RING , Replaced By: N007603010110
36
HOLLOW SCREW FITTING AT P.T.O.SHIFTING CYLINDER
36
FITTING , Replaced By: N915039006100
39
SEAL RING PNEUMATIC VALVE
39
SEAL RING , Replaced By: N007603010110
42
SYMBOL PLATE P.T.O. I
45
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
51
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
54
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
57
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
57
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
60
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
63
GROMMET CAB FLOOR
66
VALVE (OVERFLOW VALVE) GRAU
66
VALVE , Replaced By: A0044293244
66
VALVE , Replaced By: A0044293144
66
VALVE (OVERFLOW VALVE) WABCO
66
VALVE , Replaced By: A0044293144
75
REPAIR KITTO 001 429 52 44
81
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
82
THRUST RING CHECK VALVE TO AIR RESERVOIR
82
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
83
O-RING CHECK VALVE TO AIR RESERVOIR
90
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
93
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
96
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
96
ELBOW FITTING , Replaced By: A0004294638
99
NUT CHECK VALVE TO AIR RESERVOIR
102
THRUST RING CHECK VALVE TO AIR RESERVOIR
102
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
105
O-RING CHECK VALVE TO AIR RESERVOIR
116
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
116
BANJO UNION , Replaced By: N915052004006
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
REPAIR KITBOSCH
999
VALVE 3/2-WAY WABCO
999
VALVE
999
VALVE 3/2-WAY KNORR
999
VALVE 3/2-WAY VOSS
999
SEAL RING TOP WABCO
999
SPRING INSIDE WABCO
999
SEAL RING INSIDE WABCO
999
GROMMET ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
GROMMET , Replaced By: A3469970081
999
SEAL RING LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
