Поз.
Артикул
Описание

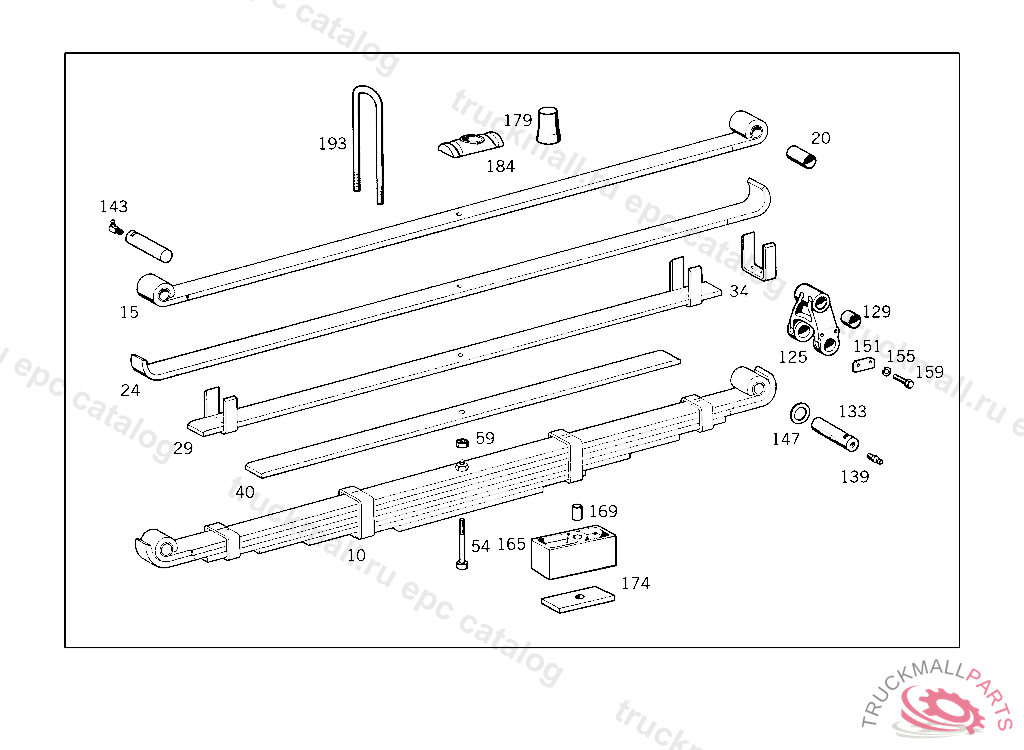

10
FRONT SPRING 7-LEAF, 020,021,022,023 UP TO CHASSIS 017274
15
SPRING LEAF WITH BUSHING NO.1, TO 312 320 41 02 FRONT SPRING
20
BUSHING
20
BUSHING
20
BUSHING ,A 006845
24
SPRING LEAFNO.2, TO 312 320 41 02 FRONT SPRING
29
SPRING LEAF WITH SPRING CLAMP NO.3, TO 312 320 41 02 FRONT SPRING
34
SPRING CLAMP TO SPRING LEAF NO.4
34
SPRING CLAMP AS REQUIRED,A 006845
40
SPRING LEAFNO.4, TO 312 320 41 02 FRONT SPRING
54
SPRING BOLT
59
NUT STRAP TO SUPPORT,5 149419
125
SHACKLE
129
BUSHING
133
SHACKLE PIN ,A 006845
139
GREASE NIPPLE PROTECTIVE TUBE
143
GREASE NIPPLE
147
SPACER WASHER
151
LOCK SPRING PIN LOCK
155
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
159
SCREW CLAMP TO BRACKET AND TO PIPE
165
PAD
169
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
174
SHIM , FOR USE WITH H.D. FRONT SPRINGS FROM CHASSIS 008842
179
RUBBER BUFFER
179
RUBBER BUFFER
184
SPACER ,A 006845
193
U-BOLT FRONT AND REAR 200 MM
193
U-BOLT , Replaced By: A3123313225
193
U-BOLT ,A 006845
999
SPACER TUBE , Replaced By: A0003213253
999
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
999
GUMMIHULSE. RUBBER MOUNTING TOP AND BOTTOM TO 675 323 06 00
999
SPACER TUBE , Replaced By: A0003232550
999
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
999
SPACER RINGTO 002 323 86 00,003 323 03 00,
999
SHOCK ABSORBER , FROM CHASSIS 008614, Replaced By: A0003239800
999
SHOCK ABSORBER REAR
999
SPRING CLAMP REAR AXLE TO TO REAR SPRINGS
999
SPRING CLAMP , Replaced By: A3123240633
999
STRAP LEFT REAR AXLE TUBE, UP TO REAR AXLE 013127
999
STRAP RIGHT REAR AXLE TUBE, UP TO REAR AXLE 013127
999
SPRING LEAFNO.1, UP TO CHASSIS 004433
999
HELPER SPRING WITH SPACER, UP TO CHASSIS 004433
999
REAR SPRING , UP TO CHASSIS 004433, Replaced By: A3283200008
999
REAR SPRING LESS HELPER SPRING, UP TO CHASSIS 004433
999
SPRING CLAMP ,4 811925, Replaced By: A3123240633
999
WASHER , Replaced By: A3379900540
999
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
999
SPRING CLAMP AT SPRING LEAF NO.5
999
BUSHING ,A 006845
999
SPACER HELPER SPRING, UP TO CHASSIS 004433
999
SPRING LEAFNO.3, UP TO CHASSIS 004433
999
BUSHING ,A 006845
999
SPRING LEAFNO.3, FROM CHASSIS 004434
999
SPRING LEAFNO.2, FROM CHASSIS 004434
999
SPRING LEAFNO.1, UP TO CHASSIS 004433
999
SPRING LEAFNO.2, UP TO CHASSIS 004433
999
SPRING LEAFNO.3, FROM CHASSIS 004434
999
SPRING LEAFNO.4, FROM CHASSIS 004434
999
CLAMP , UP TO REAR AXLE 013127
999
SCREW SHOCK ABSORBER TO FORK, UP TO REAR AXLE 013127
999
SCREW , Replaced By: A6749901204, +001N913004016005
999
SPRING LEAF WITH BUSHING NO.1
999
FRONT SPRING 9-LEAF
999
SPRING LEAFNO.2
999
SPRING LEAFNO.3
999
SPACER
999
SHIM ,A 006845
999
SHACKLE PIN PARTS KIT, ON RELOCATION OF SPRING SHACKLES,SUPPLEY ADDITIONALLY:4X 312 322 00 50
999
SPRING LEAFNO.1,A 006845
999
SPRING LEAF , Replaced By: A3223200794
999
SPRING LEAF WITH SPRING CLAMP NO.4
999
REPAIR KIT , Replaced By: A3225860132
999
REPAIR KIT , Replaced By: A3223200065
999
REAR SPRING 15-LEAF, ON SPECIAL REQUEST, BUS BODY
999
SPRING LEAFNO.1, ON SPECIAL REQUEST, BUS BODY
999
RUBBER BUFFER , FOR USE WITH H.D. FRONT SPRINGS FROM CHASSIS 008842
999
SPRING LEAFNO.2, ON SPECIAL REQUEST, BUS BODY
999
SPRING LEAFNO.3, ON SPECIAL REQUEST, BUS BODY
999
SPRING LEAFNO.4, ON SPECIAL REQUEST, BUS BODY
999
SPRING LEAF , Replaced By: A3123242112
999
BRACKET SHOCK ABSORBER TO FRAME, FROM REAR AXLE 013128
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
SHACKLE PIN PARTS KIT,6951988560068 000001 ON RELOCATION OF SPRING SHACKLES,DELIVER ADDITIONALLY ALSO: 4X 318 325 00 50
999
BRACKET ,A 006845
999
SCREW SHOCK ABSORBER TO BEARING BRACKET, 032,033,040,041 UP TO CAB 1405102
999
BUSHING
999
BUSHING
999
SCREW SHOCK ABSORBER TO CROSS MEMBER
999
COTTER PIN , ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
999
COTTER PIN , UP TO CHASSIS 910369 ALSO INSTALLED ON 500000-501414 FROM CHASSIS 501456-599999 AND FROM CHASSIS 910370 SEE UNIT MICROFICHE 744.300
999
COTTER PIN FRONT WHEEL HUB TO STEERING KNUCKLE,695198
999
NUT SPRING CLAMP
999
SCREW ,4 475130
999
RIVET , FROM CHASSIS 004434
999
RIVET TO SPRING LEAF NO. 6
999
RIVET FOR SPRING LEAF NO. 7, FROM CHASSIS 004434
999
RIVET FOR SPRING LEAF NO. 7, UP TO CHASSIS 004433
999
RIVET TO SPRING LEAF NO.3
999
SCREW , Replaced By: N304014008009
999
SCREW , Replaced By: N304017010002
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW BRACKET TO SIDE MEMBER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N308673010000
999
NUT BRAKE ANCHOR PLATE TO REAR AXLE
999
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
999
NUT DRAG LINK TO LEVER
999
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
999
NUT M14X1,5 MM
999
NUT , Replaced By: N000979016007
999
NUT SHOCK ABSORBER TO CROSS MEMBER
999
SPRING BOLT , Replaced By: N004626012272
999
SPRING BOLT FOR REAR SPRING WITH HELPER SPRING, FROM CHASSIS 004434
999
SPRING BOLT
999
SPRING BOLT
999
SPRING BOLTM 12X135
999
SCREW 3/2-WAY VALVE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
999
RIVET SPRING CLAMP TO SPRING LEAF
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
