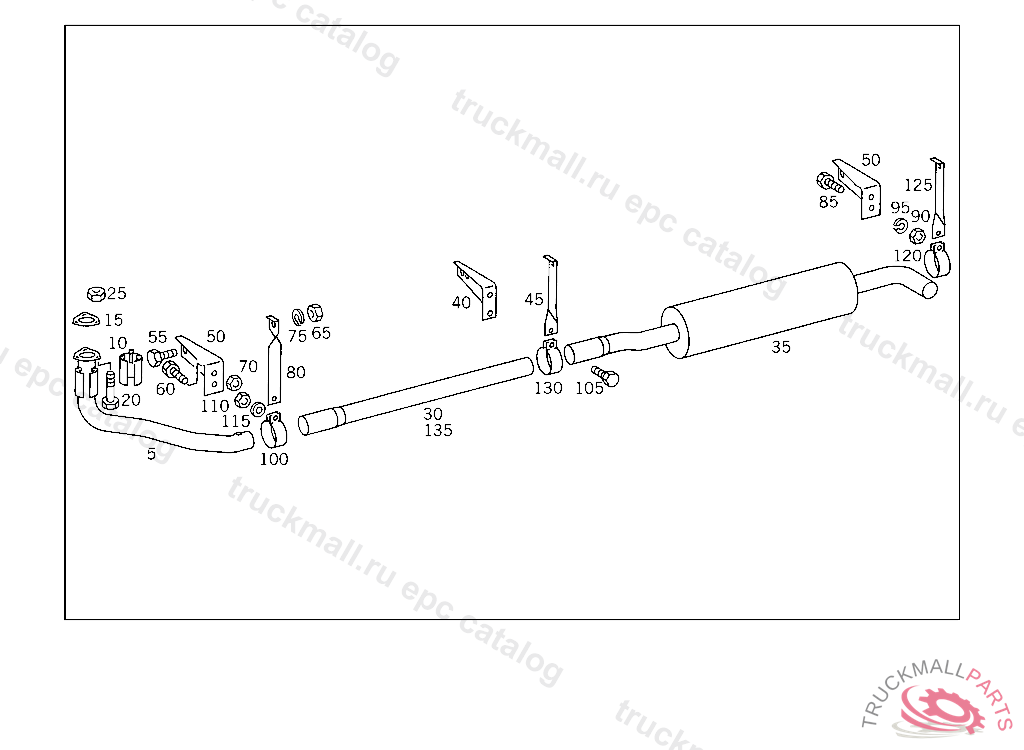

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
10
PROTECTIVE PLATE (HEAT SHIELD)
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
20
HEX. HEAD. SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
25
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
30
CONNECTOR ,A 088261
35
EXHAUST MUFFLER WITH PIPE
35
EXHAUST MUFFLER WITH PIPE , Replaced By: A3414909615
35
EXHAUST MUFFLER WITH PIPE , Replaced By: A3414909815
35
EXHAUST MUFFLER WITH PIPE
35
EXHAUST MUFFLER WITH PIPE
35
EXHAUST MUFFLER WITH PIPE , Replaced By: A3414909915
35
EXHAUST MUFFLER WITH PIPE , Replaced By: A3414909715
35
EXHAUST MUFFLER WITH PIPE
40
SUPPORT ,A 043054
45
BRACKET EXHAUST PIPE SUSPENSION
50
SUPPORT ,A 043054
50
SUPPORT EXHAUST MUFFLER SUSPENSION
55
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
60
SCREW
65
NUT , Replaced By: N910113010000
70
NUT LEVER TO SHIFTING SHAFT
75
LOCK WASHER
80
BRACKET
80
BRACKET
85
SCREW
90
NUT LEVER TO SHIFTING SHAFT
95
LOCK WASHER
100
CLAMP
100
CLAMP , UP TO CHASSIS A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
100
CLAMP EXHAUST MUFFLER,REAR 60,5MM
105
SCREW , Replaced By: N304017008034
110
NUT LEVER TO SHIFTING SHAFT
115
WASHER , Replaced By: N000125008443
120
CLAMP EXHAUST MUFFLER,REAR 60,5MM
125
BRACKET EXHAUST PIPE SUSPENSION
130
CLAMP PIPE LINE TO PIPE LINE
135
CONNECTOR
135
CONNECTOR ,A 088261A 043055
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE WITH TAIL PIPE,A 043055
