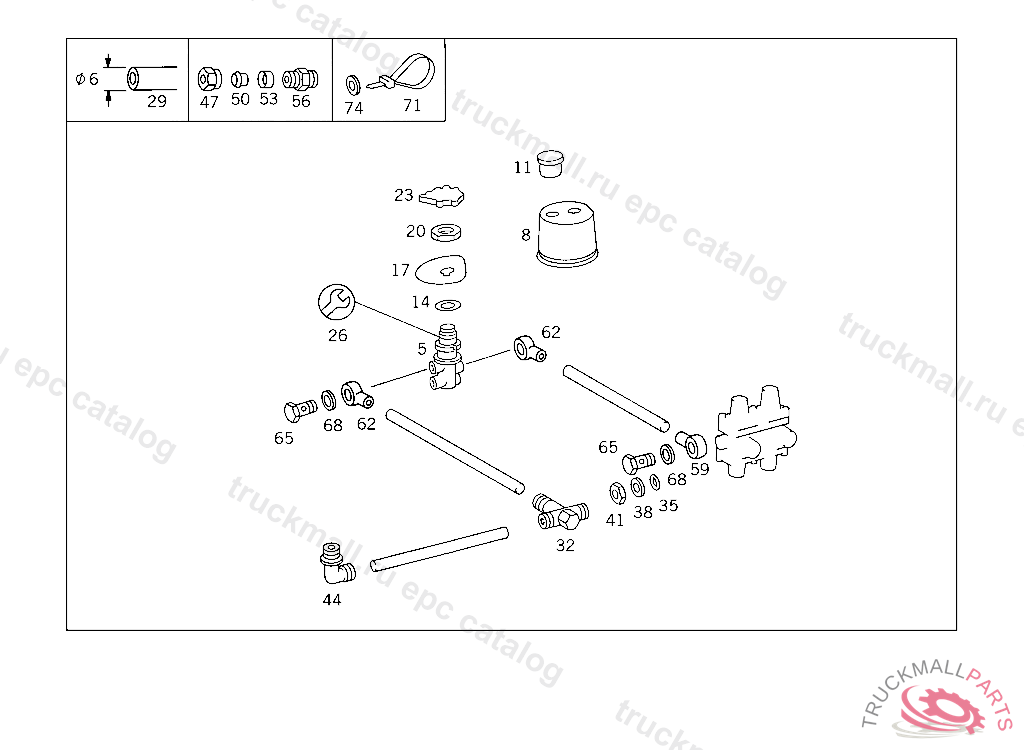

Поз.
Артикул
Описание
5
VALVE 4/3-WAY, TRANSFER CASE ACTUATION WABCO
8
COVERING
11
PLUG CAB FLOOR SEALING
14
SEAL RING PNEUMATIC VALVE TO CONSOLE
17
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
20
NUT PNEUMATIC VALVE TO CONSOLE
23
HANDLE VALVE
26
REPAIR KIT 4/3-WAY VALVE WABCO
29
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
32
T-FITTING AT THREE-WAY VALVE
32
32
35
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
38
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
38
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
41
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
44
ELBOW FITTING TEST CONNECTION TO BRACKET
44
ELBOW FITTING AT CYLINDER
47
UNION NUT
50
GLAND , Replaced By: A0019901667
53
SLEEVE LEAK LINE
56
CONNECTION FITTING , Replaced By: A0039979172
59
BANJO UNION
62
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
65
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
68
SEAL RINGTO 006 997 00 72
71
LOOM TIE LINE MOUNTING
71
LOOM TIE , Replaced By: A0019978490
74
WASHER BRACKET TO LEFT SIDE MEMBER
