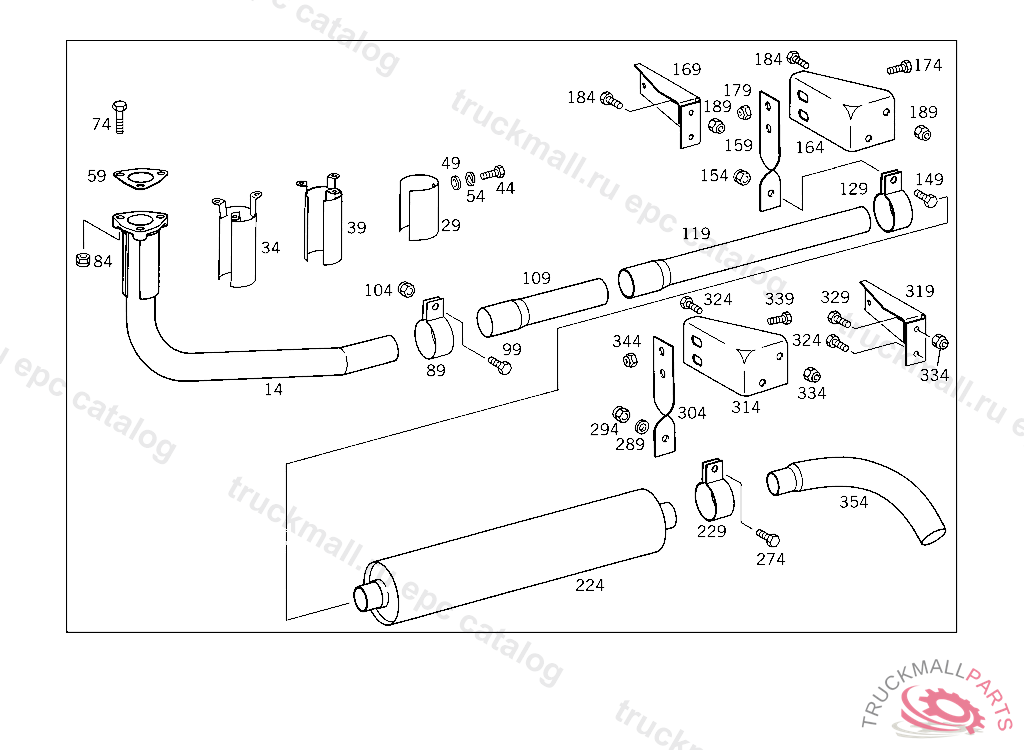

Поз.
Артикул
Описание
14
EXHAUST PIPE FRONT
14
EXHAUST PIPE FRONT,B 697179
14
EXHAUST PIPE FRONT, NUR GUELTIG BEI AUFLADUNG 345.005,006,007,008,033 FROM CHASSIS FB005930
29
PROTECTIVE PLATE , Replaced By: A3834900330
44
SCREWM 6X12
49
WASHER PLUG SOCKET TO BRACKET
54
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
59
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO SUPERCHARGING SYSTEM
74
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ONLY APPLICABLE TO SUPERCHARGING SYSTEM
84
NUT CONNECTOR TO EXHAUST MANIFOLD
89
CLAMP SUPPORT TO SIDE MEMBER 75.5 MM
99
SCREW , Replaced By: N304017010002
99
SCREW CROSS MEMBER TO SIDE MEMBERS
104
NUT BRACKET TO SIDE MEMBER,XB209706
109
CONNECTOR , Replaced By: A3024920509
119
FRONT EXHAUST PIPE FRONT, NUR GUELTIG BEI AUFLADUNGFB588185
119
FRONT EXHAUST PIPE FRONT,696639
129
CLAMP SUPPORT TO SIDE MEMBER 75.5 MM
149
SCREW CROSS MEMBER TO SIDE MEMBERS
154
NUT BRACKET TO SIDE MEMBER,XB209706
159
BRACKET EXHAUST PIPE,588186
164
SUPPORT EXHAUST PIPE,588185
169
SUPPORT ,588186
174
SCREW PLUG SOCKET TO FRAME
179
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
184
SCREW POWER CYLINDER TO BEARING BRACKET
184
SCREW LINES TO BRACKET
189
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
189
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
EXHAUST MUFFLER
224
EXHAUST MUFFLER
229
CLAMP SUPPORT TO SIDE MEMBER 75.5 MM
274
SCREW , Replaced By: N304017010002
294
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
294
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
294
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
304
BRACKET EXHAUST PIPE,588186
314
SUPPORT EXHAUST PIPE,588185
324
SCREW LINES TO BRACKET
329
SCREW POWER CYLINDER TO BEARING BRACKET
334
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
334
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
339
SCREW PLUG SOCKET TO FRAME
344
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
344
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
354
REAR EXHAUST PIPE REAR, NOT INCLUDED IN RANGE OF DELIVERY OF: 345 490 80 01
999
SUPPORT EXHAUST PIPE,4 613839
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
