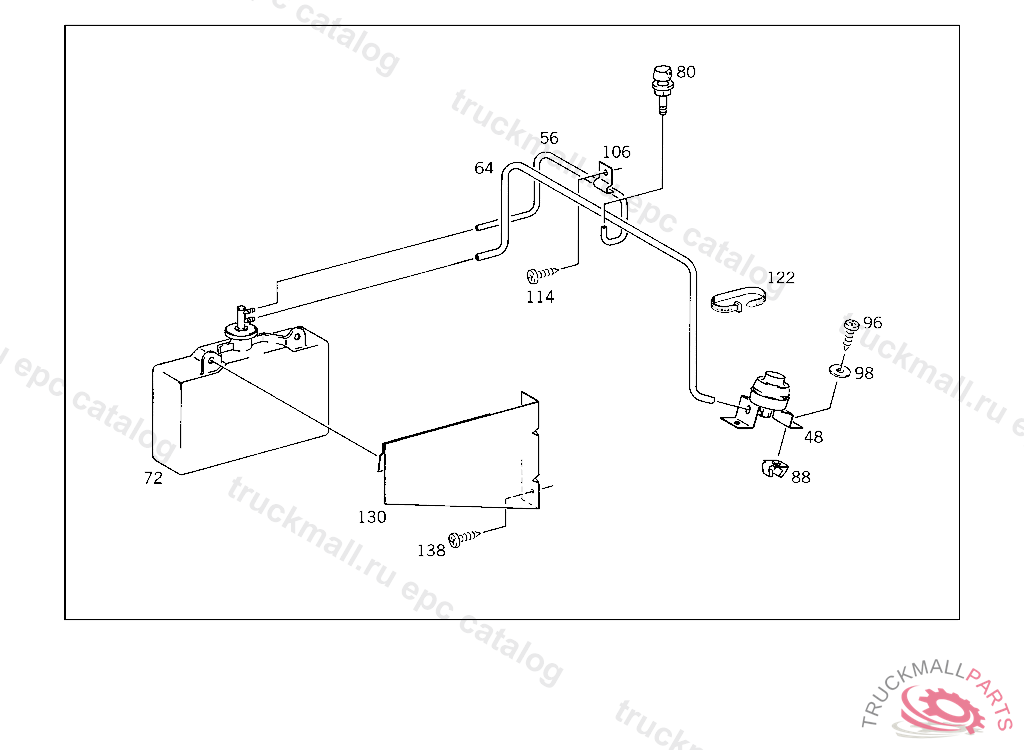

Поз.
Артикул
Описание
48
PUMP
56
HOSE , ORDER BY THE METER
64
HOSE , ORDER BY THE METER
72
RESERVOIR
80
NOZZLE
88
LOCK MAIN CABLE HARNESS TO LEFT SIDE PART
88
LOCK MAIN CABLE HARNESS TO LEFT SIDE PART
96
SHEET METAL SCREW FOOT PUMP TO BODY
98
WASHER , Replaced By: N009021005205
106
CLAMP HOSE TO BODY
114
SHEET METAL SCREW , Replaced By: N000000002062
114
SCREW
122
LOOM TIE LINE MOUNTING
122
LOOM TIE , Replaced By: A0019978490
130
BRACKET RESERVOIR
138
SHEET METAL SCREW BRACKET TO FRAME
