Поз.
Артикул
Описание

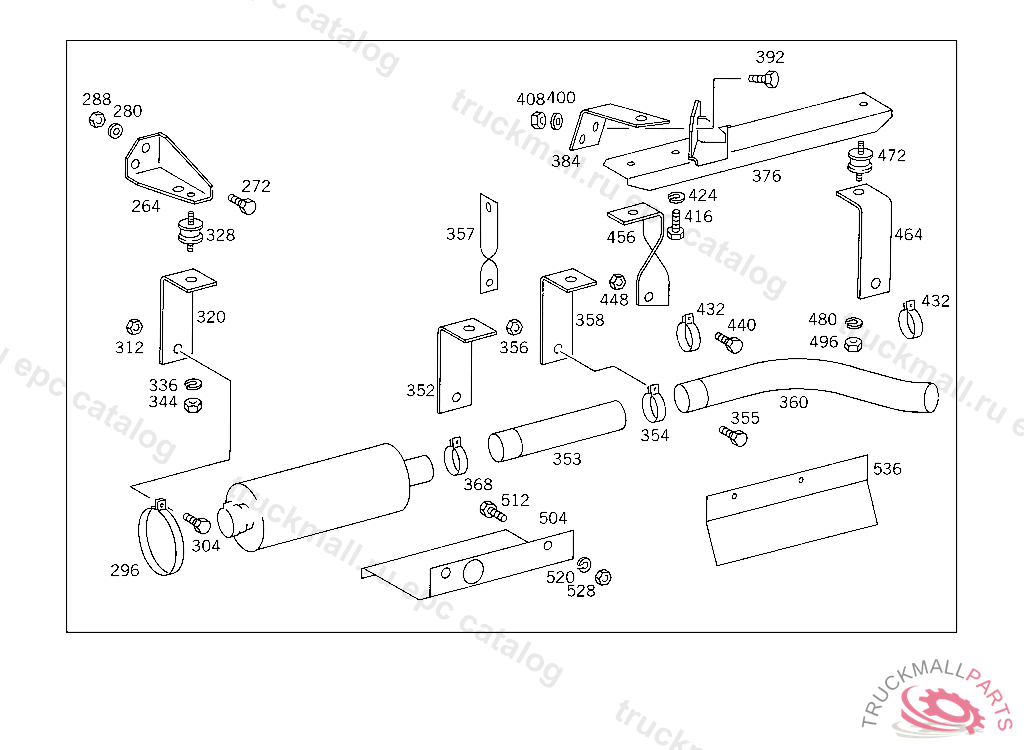

264
SUPPORT EXHAUST MUFFLER
264
SUPPORT EXHAUST MUFFLER
272
SCREW , Replaced By: N304017008034
272
SCREW PISTON ROD TO CLUTCH PEDAL
280
WASHER TRAILER PLUG SOCKET TO BRACKET
288
NUT , Replaced By: N913004008001
296
CLAMP EXHAUST MUFFLER
304
SCREW , Replaced By: N304017010002
312
NUT , Replaced By: N910113010000
320
BRACKET
328
RUBBER MOUNTING
336
LOCK WASHER , Replaced By: N912004010102
344
NUT BRACKET TO RETARDER
352
BRACKET
360
REAR EXHAUST PIPE REAR
368
CLAMP EXHAUST PIPE TO BRACKET
376
SUPPORT REAR EXHAUST PIPE
384
BRACKET SUPPORT TO SIDE MEMBER
392
SCREW BRACKET TO SIDE MEMBER
400
WASHER
408
NUT BRACKET TO LEFT SIDE MEMBER
416
SCREW , Replaced By: N304017010002
424
LOCK WASHER , Replaced By: N912004010102
432
CLAMP , Replaced By: N071555100501
440
SCREW , Replaced By: N304017010002
448
NUT , Replaced By: N910113010000
456
BRACKET EXHAUST,850818
464
BRACKET EXHAUST
472
RUBBER MOUNTING
480
LOCK WASHER , Replaced By: N912004010102
480
LOCK WASHER , Replaced By: N912004010102
496
NUT BRACKET TO RETARDER
504
PROTECTIVE PLATE AT SIDE MEMBER
512
SCREW , Replaced By: N304017010002
520
LOCK WASHER , Replaced By: N912004010102
528
NUT BRACKET TO FRAME
536
PROTECTIVE PLATE
999
SUPPORT BRACKET TO EXHAUST PIPE BRACKET, NOT USED
