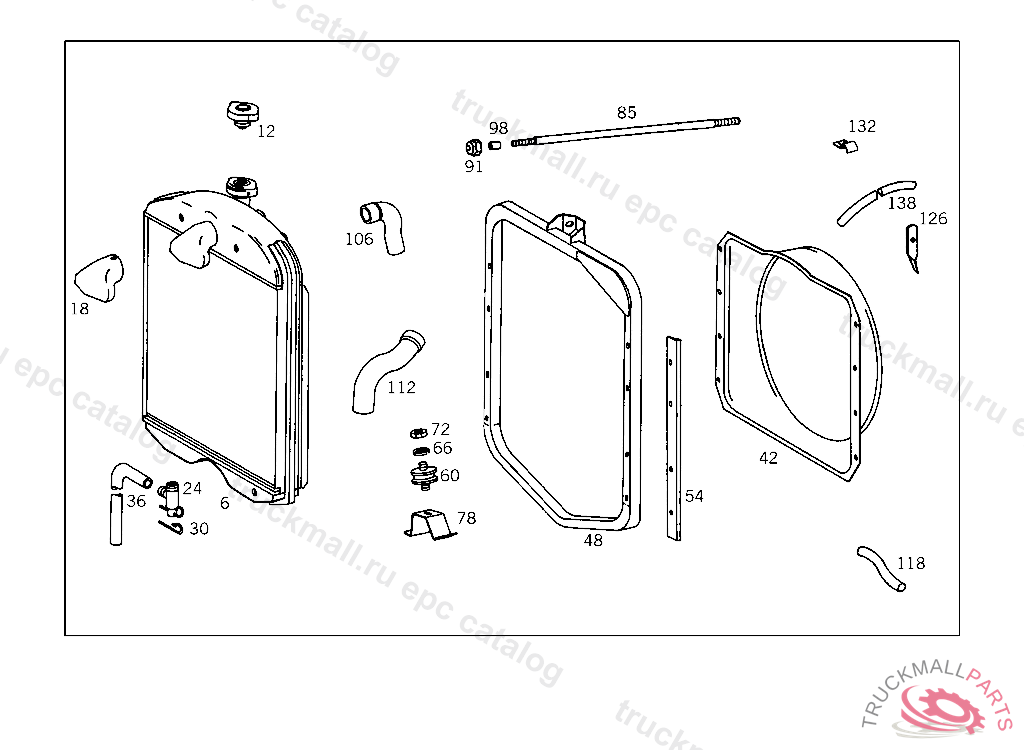

Поз.
Артикул
Описание
6
RADIATOR ,4 830413
6
RADIATORBEHR
6
RADIATOR , Replaced By: A3525011801
6
RADIATOR , Replaced By: A3525011801
12
RADIATOR CAP WITH PRESSURE RELIEF VALVE
12
RADIATOR FILLER CAP. RADIATOR CAP
18
PIPE ELBOW
24
VALVE ,4 263013
24
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
30
SPRING ,4 263013
36
HOSE
48
SUPPORT , 032-041 UP TO CHASSIS 248005, 132-141 UP TO CHASSIS 249671
54
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
60
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
60
RUBBER MOUNTING , Replaced By: A3605040012
66
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
72
NUT BATTERY CABLE
72
NUT BRACKET TO SUPPORT AND TO END PIECE
78
CLAMP ENGINE FRONT CROSS MEMBER
85
RADIATOR STRUT , 358.016,017,018 ON VEHICLES HAVING MERCEDES-BENZ PLATTFORM
85
RADIATOR STRUT , Replaced By: A3455007345
91
RUBBER RING SHOCK ABSORBER MOUNTING
98
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
106
HOSE FROM THERMOSTAT TO RADIATOR
112
HOSE FROM RADIATOR TO WATER PUMP
118
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
126
BRACKET , 773586
132
CLAMP FUEL LINE TO BRACKET
132
CLAMP , Replaced By: A1109950401
138
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
GASKET O.D., 37 MM
999
HOSE FROM UPPER LINE TO HEATING SHUT-OFF COCK, FROM IDENT NO. 944607-4 153178 ALSO INSTALLED ON 506224-514921
999
HOSE , Replaced By: A3355010782
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP
999
CLAMP
999
SCREW PROTECTION PLATE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER
999
SCREW , Replaced By: N304017008021
999
NUT BALL PIVOT TO LEVER
999
NUT STRAP TO SUPPORT
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012038
999
SHEET METAL SCREW
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
SCREW PIPE CLAMP
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW BRACKET TO TRANSMISSION
999
HOSE CLAMP. LOOM TIE FUEL LINE, TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
999
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
999
CLAMP , Replaced By: N000000000667
999
CLAMP , Replaced By: N000000000670
999
CLAMP , Replaced By: N000000000671
