Поз.
Артикул
Описание

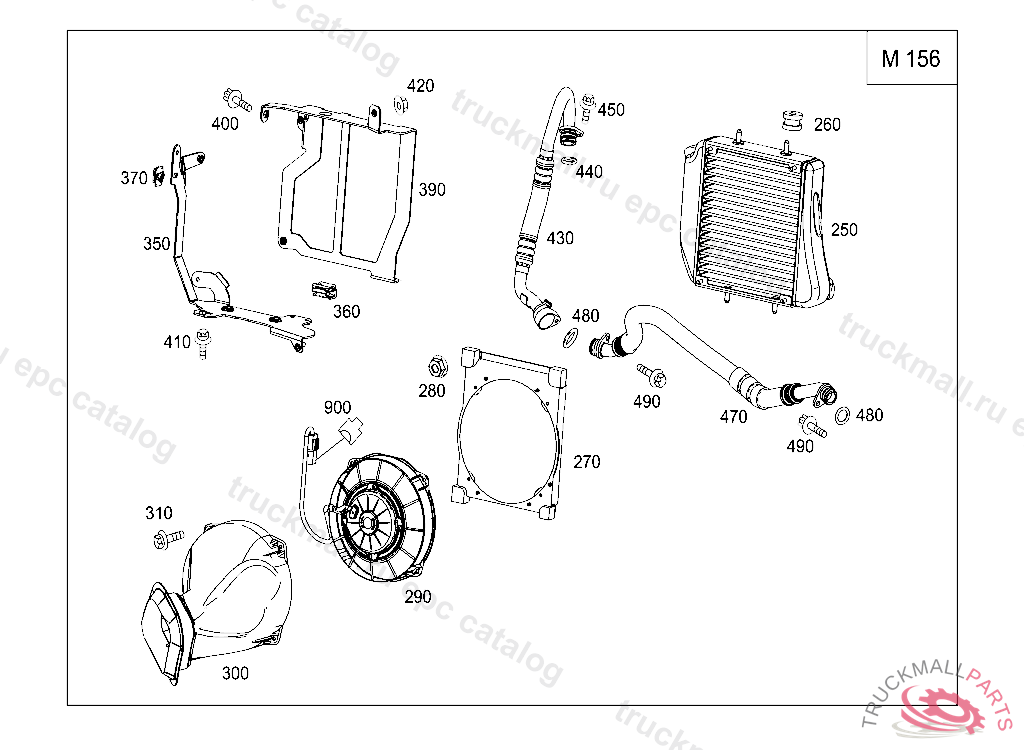

250
RADIATOR IN WHEEL ARCH RIGHT
260
GROMMET OIL COOLER TO BRACKET
270
AIR BAFFLE
280
NUT , Replaced By: N913023006001
290
BLOWER
290
AXIAL BLOWER , Replaced By: A0009063602
290
BLOWER , Replaced By: A0009066800
300
AIR BAFFLE
300
AIR DUCT , F 92165320120501
300
AIR DUCT , A 20120421 F 92165420120501
310
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
350
BRACKET RIGHT, F 92165420120501
350
BRACKET BOTTOM, A 20120421 F 92165320120501
350
BRACKET BOTTOM
360
RETAINING CLAMP18X19 MM
370
BRACKET CABLE HARNESS PLUG-CONNECTION
390
BRACKET TOP, A 20120421 F 92165420120501
390
BRACKET TOP, A 20120421 F 92165320120501
400
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
410
HEXALOBULAR BOLT. SCREW
420
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
430
OIL LINE OIL COOLER TO SEPARATION POINT, A 20120421 F 92165420120501
430
OIL LINE OIL COOLER TO SEPARATION POINT, F 92165320120501
440
SEAL RING OIL LINE TO OIL FILTER
450
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
470
OIL LINE ENGINE AT SEPARATION POINT
470
OIL LINE ENGINE AT SEPARATION POINT, A 20120421 F 92165420120501
470
OIL LINE ENGINE AT SEPARATION POINT, A 20120421 F 92165320120501
480
SEAL RING OIL LINE TO OIL FILTER
490
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
900
PIN BUSHING HOUSING BACK-UP LAMP SWITCH 2-PIN SLK2.8
