Поз.
Артикул
Описание

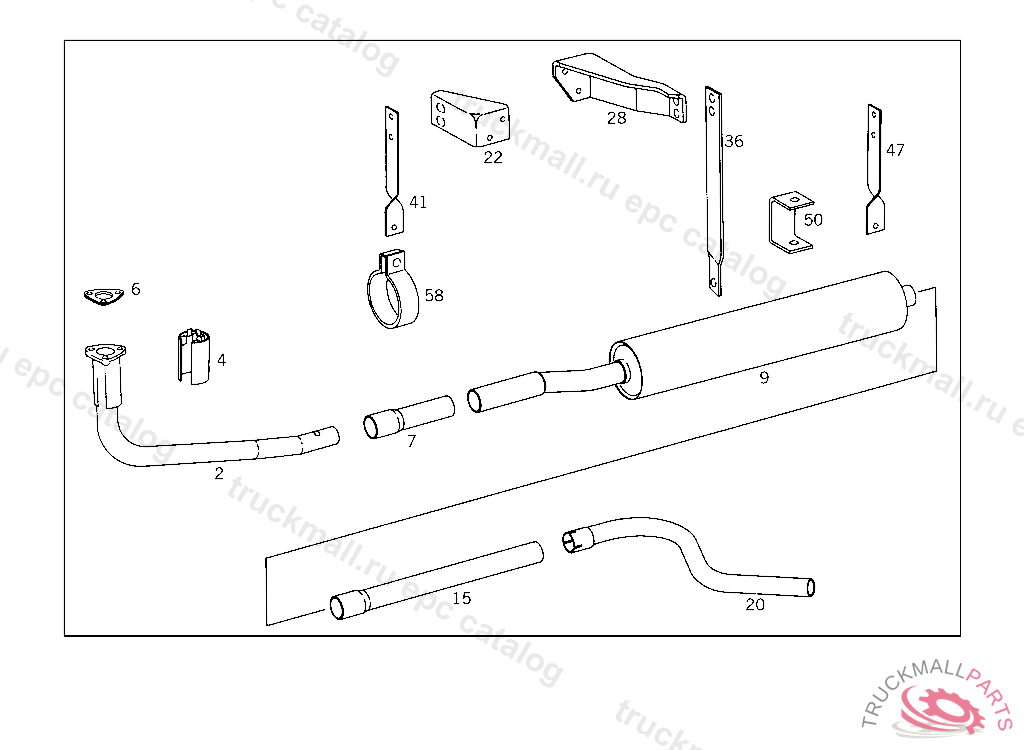

2
EXHAUST PIPE , Replaced By: A3604900619
2
EXHAUST PIPE FRONT,4 666521
4
PROTECTIVE PLATE FRONT EXHAUST PIPE
4
PROTECTIVE PLATE INTERMEDIATE PIECE
4
PROTECTIVE PLATE , Replaced By: A3834900130
4
PROTECTIVE PLATE ,FB377267
6
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
6
FLANGE GASKET , Replaced By: A4424920280
7
CONNECTOR FRONT,505802
7
CONNECTOR , Replaced By: A3224920207
7
CONNECTOR , Replaced By: A3224920207
9
EXHAUST MUFFLER WITH PIPE FRONT, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
9
EXHAUST MUFFLER WITH PIPE , Replaced By: A3604900515
15
CONNECTOR REAR
22
SUPPORT EXHAUST PIPE,4 613839
36
BRACKET EXHAUST PIPE SUSPENSION, 685037
41
BRACKET EXHAUST PIPE, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
47
BRACKET REAR CROSS MEMBER, FROM IDENT NO. 685038 ALSO INSTALLED ON IDENT NO. 500001-599999 UP TO IDENT NO. 872788 EXCEPT FOR IDENT NO. 500033-599999
50
BRACKET EXHAUST PIPE TO CROSS MEMBER
50
BRACKET , Replaced By: A3604924441
58
CLAMP60.5 MM,4 613839
58
CLAMP , Replaced By: N000000001642
58
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
58
CLAMP REAR EXHAUST PIPE TO BRACKET
999
RUBBER BUFFER EXHAUST MUFFLER
999
RUBBER BUFFER BRACKET TO SUPPORT
999
SUPPORT HELPER SPRING BRACKET, UP TO IDENT NO. 685037 EXCEPT FOR 500001-599999
999
SUPPORT REAR SPRING BRACKET
999
SUPPORT EXHAUST PIPE, 872788
999
BRACKET FRONT EXHAUST PIPE, 872788
999
REAR EXHAUST PIPE , Replaced By: A3604922605
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3834900001, +001A3814920001
999
EXHAUST PIPE FRONT
999
SUPPORT EXHAUST PIPE, FROM IDENT NO.872789 ALSO INSTALLED ON 500033-599999
999
REAR EXHAUST PIPE CENTRAL PART
999
BRACKET EXHAUST PIPE TO REAR CROSS MEMBER, FROM IDENT NO.872789-4 179813 ALSO INSTALLED ON 500033-507586
999
BRACKET , Replaced By: A3814923841
999
REAR EXHAUST PIPE , Replaced By: A3604922604
999
REAR EXHAUST PIPE REAR, UP TO IDENT NO. 685037 EXCEPT FOR:500001-599999
999
REAR EXHAUST PIPE , Replaced By: A3604922805, +001A3854920114, +001N007981006308
999
REAR EXHAUST PIPE REAR
999
BRACKET REAR EXHAUST PIPE, 872788
999
REAR EXHAUST PIPE , Replaced By: A3604923904
999
REAR EXHAUST PIPE REAR, UP TO IDENT NO. 685037 EXCEPT FOR:500001-599999
999
REAR EXHAUST PIPE CENTRAL PART, 872788
999
SUPPORT REAR EXHAUST PIPE TO FRAME
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT REAR EXHAUST PIPE,5 193594
999
BRACKET EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
EXHAUST MUFFLER
999
END PIECE REAR EXHAUST PIPE
999
SCREW STRAP TO BRACKET
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008016
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
