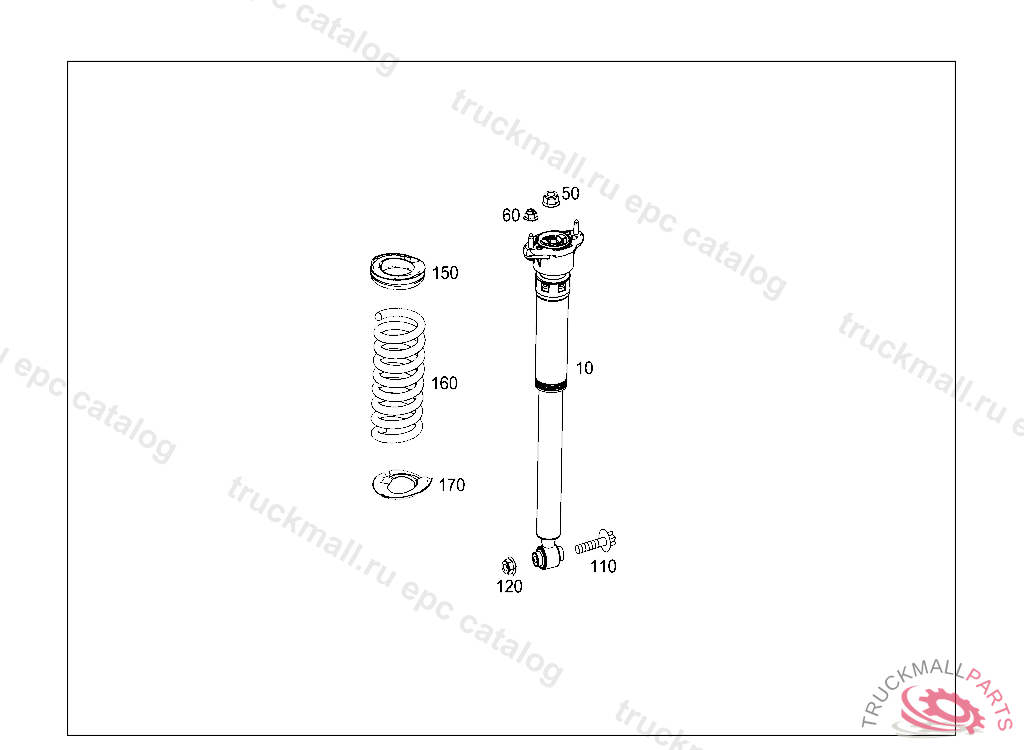

Поз.
Артикул
Описание
10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT
10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR RIGHT
50
HEXAGON NUT SHOCK ABSORBER TO BEARING M10X1
50
NUT REINFORCEMENT TO BRACKET
60
NUT SHOCK ABSORBER TO FRAME
110
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
120
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
150
SHIM TOP, STUD COUNT: 3 ( 13MM )
150
SHIM TOP, STUD COUNT: 4 ( 17MM )
150
SHIM TOP, STUD COUNT: 2 ( 9MM )
150
SHIM TOP, STUD COUNT: 1 ( 5MM )
160
REAR SPRING , UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
160
REAR SPRING COLOR CODING: 1 X VIOLET / 2 X YELLOW, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
170
SHIM BOTTOM
