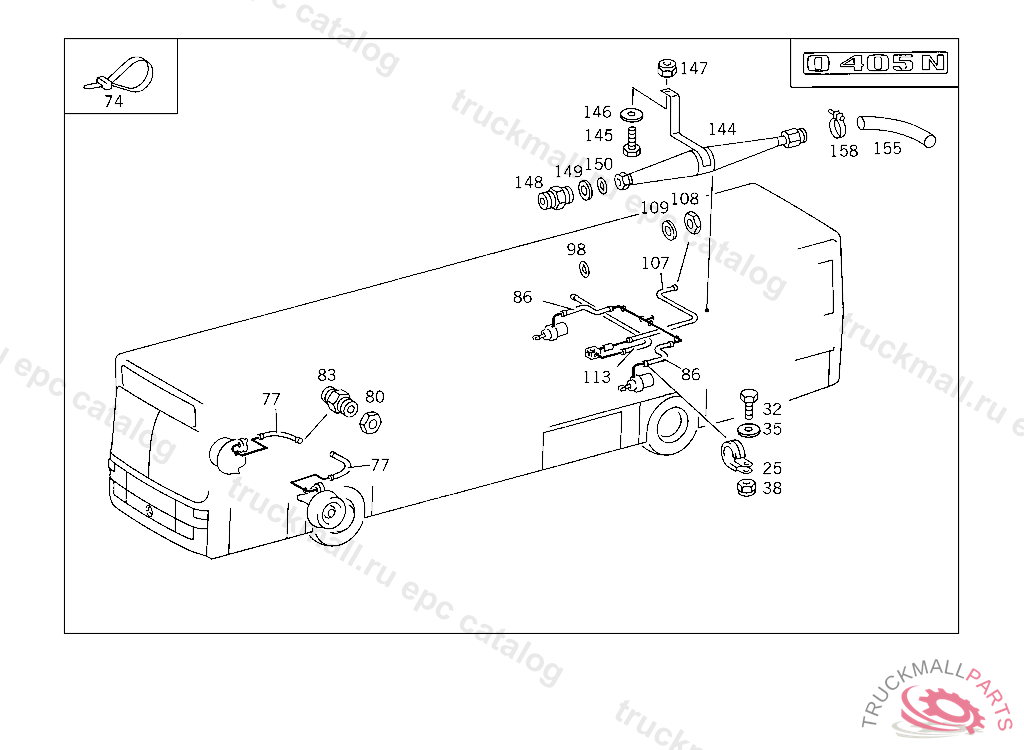

Поз.
Артикул
Описание
25
CLAMP SENSOR CABLE TO BRACKET
25
CLAMP CABLE HARNESS MOUNTING
25
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/9
25
CLAMP BRAKE HOSE BRACKET
25
CLAMP LINES TO BRACKET
25
CLAMP LINE MOUNTING
25
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
25
CLAMP ,K 147121, Replaced By: N000000000319
25
CLAMP , Replaced By: N916016010211
25
CLAMP , Replaced By: N000000001045
25
CLAMP HOSE TO FLANGE AND TO VALVE
25
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
25
CLAMP LINE MOUNTING
25
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
32
SCREW CAB FLOOR COVERING M 6X25
35
WASHER COMPRESSED AIR LINE TO BRACKET
35
WASHER , Replaced By: N009021006208
38
NUT , Replaced By: N913004006001
38
NUT , Replaced By: N913004008001
38
NUT PUMP TO BRACKET
74
LOOM TIE LINE MOUNTING
77
BRAKE HOSE FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
77
BRAKE HOSE , Replaced By: A0004299235
80
NUT BRACKET TO SIDE MEMBER
83
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
83
FITTING , Replaced By: A0029906171
83
FITTING (PARTS KIT),LINE RUPTURE
86
BRAKE HOSE BETWEEN THE LINES
98
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
107
BRAKE HOSE FROM RELAY VALVE TO TWO-WAY VALVE
108
NUT BRACKET TO SIDE MEMBER
109
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
113
BRAKE HOSE SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,LEFT
113
BRAKE HOSE RETARDER
144
MUFFLER , FROM IDENT NO.: 052097 WITH MERCEDES-BENZ BODY FROM IDENT NO.: 052032 LESS MERCEDES-BENZ BODY
145
SCREW , Replaced By: N304017008021
145
SCREW PIPE CLAMP
146
WASHER , Replaced By: N009021008213
146
WASHER BRACKET TO LEFT SIDE MEMBER
146
WASHER BRACKET TO CAB REAR PANEL
147
NUT , Replaced By: N913004008001
148
FITTING AIR RESERVOIR,CONNECTION: "13"
149
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
150
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
155
HOSE MUFFLER
158
CLAMP , Replaced By: N000000000667
158
CLAMP
158
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
