Поз.
Артикул
Описание

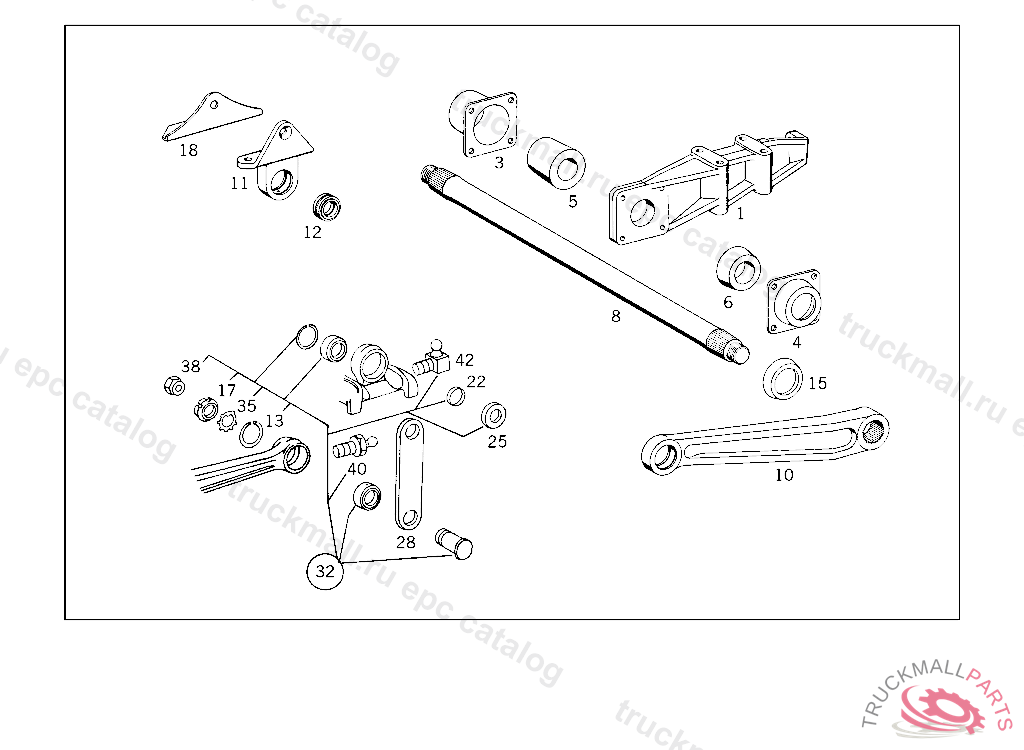

1
BRACKET RIGHT
1
BRACKET LEFT
3
HOUSING INSIDE
4
HOUSING OUTSIDE
5
RUBBER MOUNTING INSIDE
5
RUBBER MOUNTING INSIDE
6
RUBBER MOUNTING OUTSIDE
6
RUBBER MOUNTING OUTSIDE
8
TORSION BAR
8
TORSION BAR
10
LEVER AT TORSION BAR
10
LEVER AT TORSION BAR
11
BEARING BRACKET TORSION BAR,4 369363
11
BEARING BRACKET TORSION BAR,4 369363
12
JOINT BEARING TORSION BAR TO LINK,5 903513
12
JOINT BEARING TORSION BAR TO LINK,5 903513
13
LOCK RING TORSION BAR TO LINK,5 903513
15
SPACER RING LEVER TO TORSION BAR
15
SPACER RING LEVER TO TORSION BAR
17
NUT LEVER TO TORSION BAR
18
PLATE BEARING BRACKET TO FRAME
18
PLATE , Replaced By: A3803260025
22
SPACER TUBE LINK TO BEARING BRACKET,5 903513
25
SEAL RING LINK TO BEARING BRACKET,5 903513
28
LINK TORSION BAR TO BEARING BRACKET
28
LINK LEVER TO BEARING BRACKET, UP TO IDENT NO. 902202 EXCEPT FOR 501016-599999
32
REPAIR KIT REAR STABILIZER,D 005410
32
REPAIR KIT , Replaced By: A3603200341
35
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
38
NUT TORSION BAR TO BEARING BRACKET,5 904660
40
GREASE NIPPLE
40
GREASE NIPPLE , Replaced By: N071412008102
42
GREASE NIPPLE
999
STIFFENING ,KB860814
999
PIN TORSION BAR TO BEARING BRACKET,D 005410
999
STIFFENING HELPER SPRING BRACKET
999
LINK , Replaced By: A3853260016
999
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
999
SHIM BEARING BRACKET TO FRAME
999
LINK TORSION BAR TO BEARING BRACKET,D 005410
999
COTTER PIN PISTON ROD TO LIFTING ARM
999
COTTER PIN6.3X63 MM
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SCREW , Replaced By: N304017010030
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673014001
999
NUT LEVER TO TORSION BAR
999
SCREW , Replaced By: N000961012208
999
SCREW APPARATUS SUPPORT TO FRAME,REAR
999
SCREW SHOCK ABSORBER TO CONSOLE M 14X130,4 330046
999
SCREW BRACKET TO CONSOLE
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
