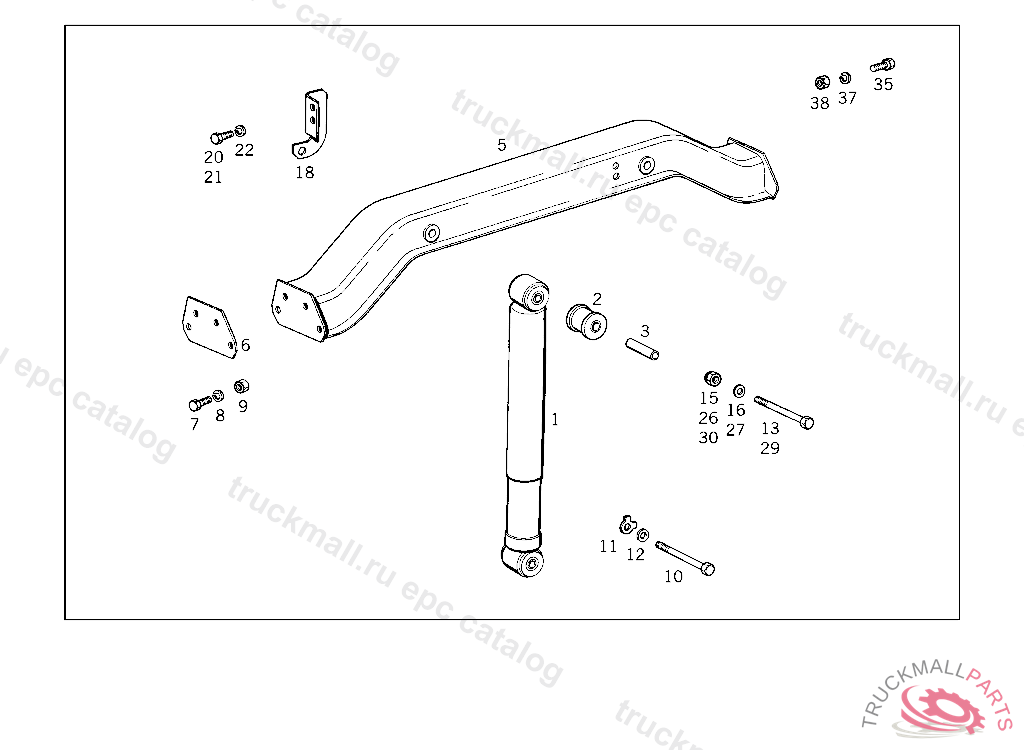

Поз.
Артикул
Описание
1
SHOCK ABSORBER SHOCK ABSORBER TO REAR AXLE
1
SHOCK ABSORBER SHOCK ABSORBER TO REAR AXLE
1
SHOCK ABSORBER SHOCK ABSORBER TO REAR AXLE
2
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
3
SPACER RINGTO 002 323 86 00,003 323 03 00,
3
SPACER TUBE , Replaced By: A0003232550
5
CROSS MEMBER REAR SHOCK ABSORBERS
6
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
6
SHIM , Replaced By: A3123121557
7
SCREW SUPPORT TO CROSS MEMBER M 10X28
8
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
9
NUT BRACKET TO SUPPORT AND TO END PIECE
10
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
11
LOCK SHOCK ABSORBER TO BOTTOM BRACKET
12
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
13
SCREW , Replaced By: A6749901204, +001N913004016005
13
SCREW SHOCK ABSORBER TO CROSS MEMBER
15
NUT , Replaced By: N000979016007
15
NUT SHOCK ABSORBER TO CROSS MEMBER
16
WASHER , Replaced By: A3379900540
16
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
18
BRACKET LEFT
18
BRACKET RIGHT
20
SCREW
21
SCREW BRACKET TO SPRING SADDLE M 14X48
22
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
26
NUT DRAG LINK TO LEVER
27
WASHER
29
SCREW SHOCK ABSORBER TO FORK, UP TO IDENT NO. 802164 EXCEPT FOR 500001-599999
30
NUT SHOCK ABSORBER TO CROSS MEMBER
30
NUT , Replaced By: N000979016007
35
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
35
SCREW , Replaced By: N304017010028
37
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
38
NUT BRACKET TO SUPPORT AND TO END PIECE
999
BRACKET , LP 353 UP TO CHASSIS 601308,LP 358 UP TO CHASSIS 604198
999
SUPPORT EXHAUST PIPE, 872788
999
BRACKET , NOT USED
999
COTTER PIN STRAP TO CONSOLE
999
COTTER PINTO 000 429 16 30
