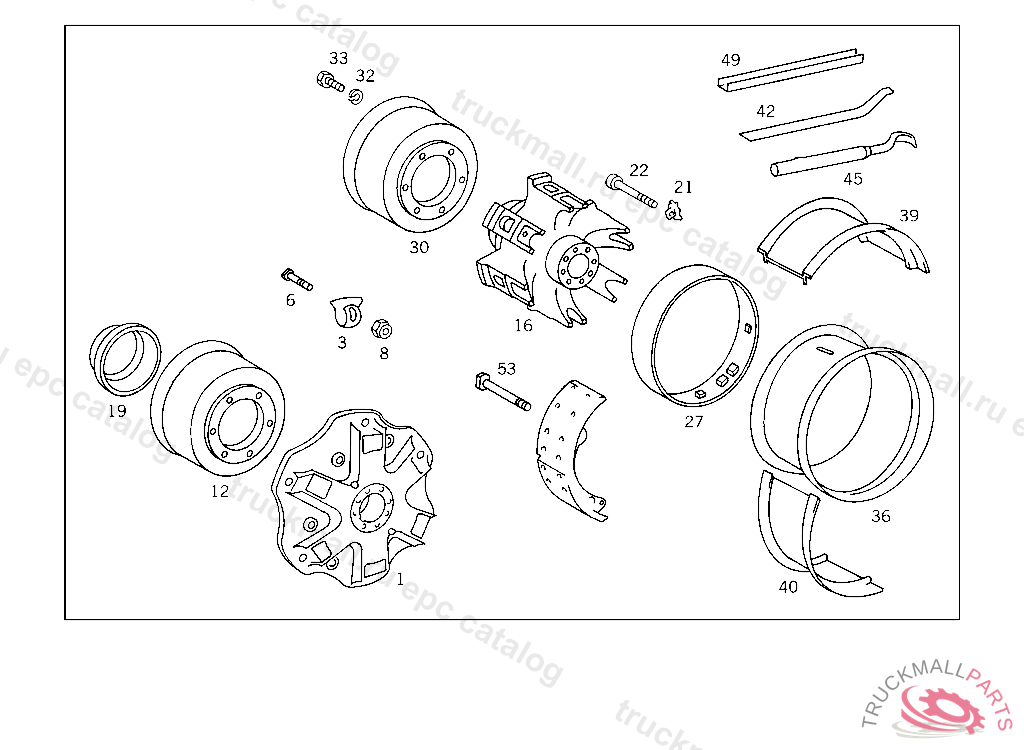

Поз.
Артикул
Описание
1
WHEEL SPIDER FRONT WHEEL
3
CLAMPING PLATE TRILEX WHEEL
6
SCREW RIM BOW TO WHEEL SPIDER,4 249811
8
NUT RIM BOW TO FRONT WHEEL SPIDER
8
NUT , Replaced By: A0009901450
12
BRAKE DRUM TRILEX RIM TO FRONT WHEEL SPIDER
16
WHEEL SPIDER , Replaced By: A3584020104
16
WHEEL SPIDER REAR AXLE,826881
19
OIL COLLECTOR
19
OIL COLLECTOR , Replaced By: A3523560382
21
CLAMPING SHOE ,5 142384
21
CLAMPING SHOE , Replaced By: A3874020268
22
SCREW TRILEX RIM TO REAR WHEEL SPIDER
27
RING104 MM
30
BRAKE DRUM REAR WHEEL BRAKE CYLINDER
32
LOCK WASHER SPARE WHEEL TO BRACKET
33
SCREW CROSS MEMBER TO REINFORCEMENT M 20X1.5X45
36
RIM6.5-20
39
RIM BOW LONG
42
TIRE LEVER
45
TIRE LEVER
49
CONNECTING RAIL
53
BRACKET BRAKE SHOE TO BRAKE ANCHOR PLATE
999
LOCK RIM BOW TO FRONT WHEEL SPIDER
999
NUT
999
RIM BOW SHORT
999
PIN
999
DRUM HUB
999
COTTER PIN
999
NUT , Replaced By: N308673020002
999
NUT , Replaced By: N308674020000
999
NUT REAR SPRING TO REAR AXLE
