Поз.
Артикул
Описание

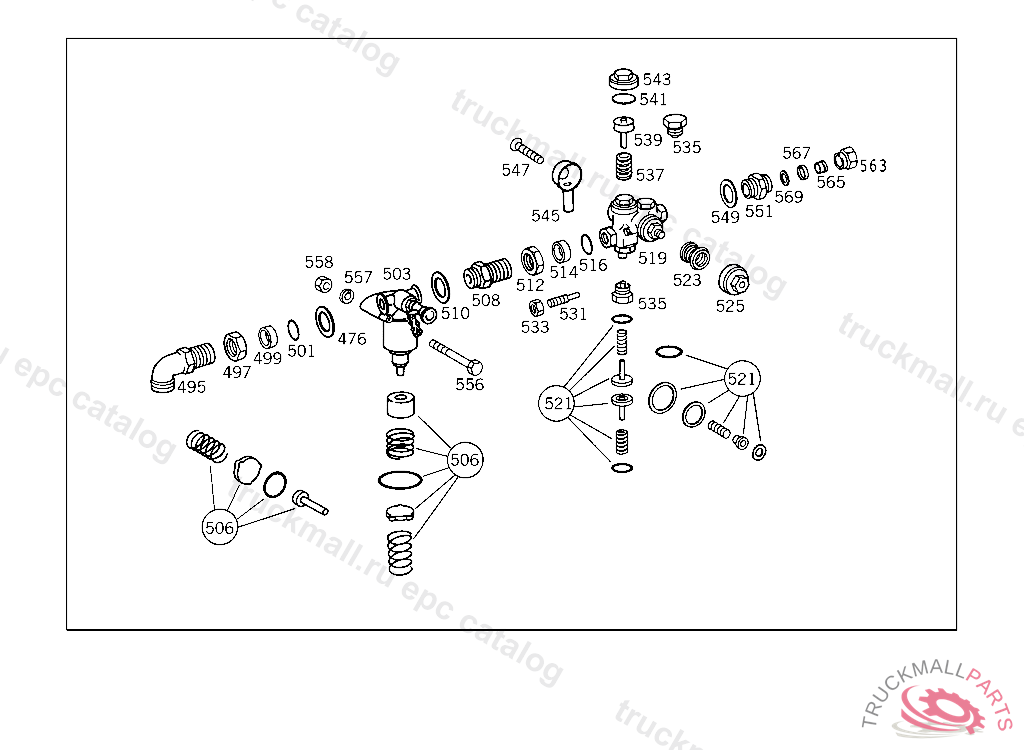

476
SEAL RING , Replaced By: N915045015100
476
SEAL RING LINE CONNECTION
495
ELBOW FITTING LINE CONNECTION
497
NUT CHECK VALVE TO AIR RESERVOIR
499
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
499
THRUST RING CHECK VALVE TO AIR RESERVOIR
501
O-RING CHECK VALVE TO AIR RESERVOIR
503
TIRE INFLATOR CYLINDER , Replaced By: A3445910019
503
AIR CLEANER. TIRE INFLATOR CYLINDER ,511032
506
REPAIR KIT
508
FITTING SHUTTLE VALVE,CONNECTION: "20"
508
FITTING , Replaced By: A0019972372
510
SEAL RING LINE CONNECTION
512
NUT CHECK VALVE TO AIR RESERVOIR
514
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
514
THRUST RING CHECK VALVE TO AIR RESERVOIR
516
O-RING CHECK VALVE TO AIR RESERVOIR
519
VALVE. PRESSURE REGULATOR ,FB486597
521
REPAIR KIT ,511032
523
COMPENSATOR
525
SCREW PLUG
531
STUD
533
NUT TACHOGRAPH TO BRACKET
535
SCREW PLUG
537
SPRING
539
PISTON
541
WASHER
543
SCREW PLUG
545
BREATHER PIPE
547
SCREW ,511032
549
SEAL RING LINE CONNECTION
551
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
556
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X55
557
LOCK WASHER RAIL TO BATTERY SUPPORT
558
NUT , Replaced By: N304032008006
563
UNION NUT BUTT SCREW CONNECTION
565
GLAND LINE CONNECTION
567
THRUST RING BUTT SCREW CONNECTION
569
SEAL RING , Replaced By: N007603012121
999
UNION NUT LINE CONNECTION
999
UNION NUT
999
999
CLAMP AS REQUIRED
999
COUNTERSUNK WASHER CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
FITTING
999
FITTING AIR RESERVOIR,CONNECTION: "2"
999
FITTING , Replaced By: A0009970171
999
ELBOW FITTING
999
ELBOW FITTING
999
DOUBLE FITTING ,306045
999
UNION SCREW , Replaced By: A0004280072
999
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
999
GREASE NIPPLE PROTECTIVE TUBE
999
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
CONNECTION FITTING ,880809
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901667
999
SCREW CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
SCREW VALVE TO FLOOR
999
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
NUT BRACKET TO SIDE MEMBER
999
NUT PULL ROD
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT
999
NUT LEVER TO SHIFTING SHAFT
999
NUT
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010040
999
SCREW , Replaced By: N304017010002
999
SCREW PLUG SOCKET TO FRAME
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW SCREENING PLATE TO BRACKET,K 142858
999
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
999
SCREW LINE TO BRACKET,B 891198
999
SCREW BRACKET MOUNTING
999
SCREW AT INSTRUMENT PANEL M 4X16,036897
999
SCREW BRACKET TO TRANSMISSION CASE
999
SCREW PLUG , Replaced By: N000908022011
999
WASHER PULL ROD TO SHIFT LEVER
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
LOCK WASHER , Replaced By: N912004010102
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
LOCK WASHER PLUG SOCKET
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER FUSE TO FUSE BOX
999
COTTER PIN STRAP TO SUPPORT
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
SCREW PLUG , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
REPAIR KIT , Replaced By: A0034301181
999
REPAIR KIT , Replaced By: A0004301708
999
REPAIR KITTO 000 431 21 14
999
REPAIR KIT , Replaced By: A0085861342
999
REPAIR KITTO 000 431 21 14
999
SPRING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRING , Replaced By: H983454310793
999
SPRINGTO 000 431 48 14
999
VALVE , Replaced By: A3454300281
999
999
999
999
999
999
999
LINE FROM T-FITTING TO T-FITTING 8X0.7 MM
999
999
999
999
999
LINE8X0.7 MM
999
999
999
999
999
999
999
999
LOOM TIE , Replaced By: A3509970290
999
PROTECTIVE CAP , Replaced By: A3446847027
999
VALVE AT OUTSIDE AIR RESERVOIR
999
BRAKE LINING , Replaced By: A3604232810
999
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE I 16.7 MM, WITH TWO-SPEED REAR AXLE
999
BRAKE LINING (BRAKE LINING SET),STANDARD 15.7 MM, WITH TWO-SPEED REAR AXLE
999
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE II 17.5 MM
999
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE I 16.5 MM
999
BRAKE LINING (BRAKE LINING SET),STANDARD 15.5 MM
999
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL 6X0.7 MM, 364.101 FROM CHASSIS 37068, -364.111 FROM CHASSIS 38388, -364.152 FROM CHASSIS 36730, -364.162 FROM CHASSIS 35746, -364.173 FROM CHASSIS 36749
999
BRAKE SHOE , FOR THE NEW PART NO.,SEE STANDARD VERSION
999
BRAKE SHOE ,100570, Replaced By: A3604209120, +001A3024210088
999
BRAKE SHOE ,044379044348, Replaced By: A3454207620, +001A3024210088
999
BRAKE SHOE WITH LINING, UP TO FRONT AXLE 1502306 AND REAR AXLE 00400
999
BRAKE SHOE WITH LINING, UP TO FRONT AXLE 1502306 AND REAR AXLE 00400
999
BRACKET HAND BRAKE VALVE,307004
999
HOSE , Replaced By: A3049972582
999
VALVE , Replaced By: A0004320807
999
YOKE , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
999
SCREW PLUG AT TANK
999
REPAIR KIT , Replaced By: A3644230510
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644230510
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644210810
999
REPAIR KIT , Replaced By: A3644210710
999
REPAIR KIT , Replaced By: A3644210810
999
REPAIR KIT , Replaced By: A3644210710
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230510
999
REPAIR KIT , Replaced By: A3644210610
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644210610
999
REPAIR KIT MINOR TO 345 430 78 01
999
SPRING
999
LOCKTO 345 430 77 01
999
BRAKE MASTER CYLINDER"TEVES", NOT USED
999
BRAKE MASTER CYLINDER"VARGA", USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
CONNECTOR AT AIR RESERVOIR, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
RESERVOIRTO 344 430 78 01,345 430 78 01, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004320807
999
CONNECTOR AT TWO-WAY VALVE
999
SCREW PLUG AT TWO-WAY VALVE, B03543/06/08 UP TO IDENT NO.: 549429
999
ELBOW FITTING AT BRAKE VALVE
999
DISTRIBUTORTO 002 430 27 01, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185 NOT USED
999
DISTRIBUTOR
999
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
999
SPRINGTO 003 420 80 18
999
FITTINGTO 345 430 78 01
999
PISTONTO 345 420 71 18
999
WHEEL BRAKE CYLINDER46.83 MM,"VARGA", UP TO CHASSIS 588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIS T,BM 732.7
999
BRAKE ANCHOR PLATE , Replaced By: A3024203117
999
999
PLATE EMERGENCY RELEASE VALVE,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
REPAIR KITTO 000 429 28 44
999
999
BRACKET LINE MOUNTING
999
999
999
999
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL 6X0.7 MM,D 037447
999
999
SPACER TUBE AS REQUIRED 16.0 MM
999
SPACER TUBE AS REQUIRED 15.5 MM
999
SPACER TUBE AS REQUIRED 15.0 MM
999
SPACER TUBE AS REQUIRED 14.5 MM
999
FITTING AIR BRAKE CYLINDER,549430
999
SEAL RING TIRE INFLATOR CYLINDER TO BODY
999
SHIM TIRE INFLATOR CYLINDER TO BODY
999
SHIM2.00 MM
999
CONSOLE
999
SHIM0.5 MM
