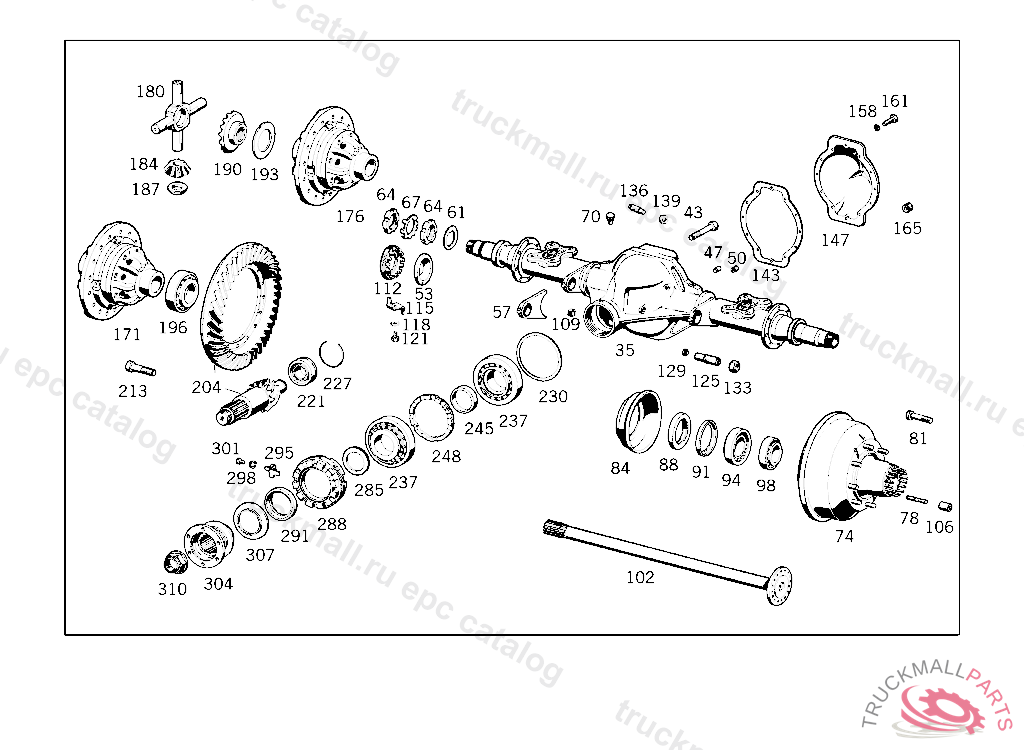

Поз.
Артикул
Описание
35
AXLE HOUSING WITH DIFFERENTIAL CASE BESARING CAPS, FROM REAR AXLE 322.0/1-001127 TO 007860 AND FOOTNOTE 10
35
AXLE HOUSING WITH DIFFERENTIAL CASE BESARING CAPS, UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
43
SCREW BEARING COVER TO AXLE HOUSING
47
PIN , Replaced By: A3523510174
47
PIN
50
PLUG
53
OIL COLLECTOR
57
BEARING BRACKET
61
SPACER WASHER
64
GROOVED NUT
67
LOCK PLATE
70
VALVE
70
FITTING BLEEDING
74
DRUM HUB REAR, 024,025,026,027,044 UP TO CHASSIS 017866, 028,829 UP TO CHASSIS 027946
74
WHEEL HUB , 017866,027946, Replaced By: A3213560302, +001A3213560082, +008A3524020171, +008A3129901605
74
DRUM HUB , Replaced By: A3223560302
78
STUD
81
WHEEL MOUNTING BOLT , Replaced By: A0004015271
81
WHEEL MOUNTING BOLT
84
OIL COLLECTOR
88
SEAL RING
88
REPAIR KIT
91
SPACER RING
94
TAPERED ROLLER BEARING
94
TAPERED ROLLER BEARING INSIDE
94
TAPERED ROLLER BEARING
98
TAPERED ROLLER BEARING
98
TAPERED ROLLER BEARING
102
REAR AXLE SHAFT
109
SCREW PLUG , Replaced By: A0009972632
112
SCREW COLLAR DIFFERENTIAL GEAR
115
LOCK
118
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
118
TOOTHED WASHER SCREW COLLAR
121
SCREW , Replaced By: N304017008016
121
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
SET SCREW
125
SET SCREW , Replaced By: A6703530276
125
SET SCREW , Replaced By: A3833530276, +001A3853530149
125
SET SCREW , Replaced By: A6743530076
125
SET SCREW , UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
129
SLIDE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3853530149, +001A3833530276
129
SLIDE , NOT USED
129
SLIDE
133
HEX. NUT. NUT
133
NUT SET SCREW
136
SCREW
139
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
143
GASKET , UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
143
GASKET , Replaced By: A3223510180
143
GASKET , UP TO REAR AXLE WITH CAST-IN NO.352 351 05 05
147
COVER , Replaced By: A6153500421, +012N914112010016
158
WASHER HORN TO ENGINE CROSS MEMBER
161
SCREW , Replaced By: N304017010028
161
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
165
SCREW PLUG , Replaced By: A0009972632
171
DIFFERENTIAL GEAR
176
DIFFERENTIAL CASE , Replaced By: A3223503823
180
DIFFERENTIAL SPIDER
184
DIFFERENTIAL PINION
187
SPHERICAL WASHER
190
SIDE GEARTO 322 353 03 14, ONLY REPLACEABLE BY THE SET
190
SIDE GEAR
193
THRUST WASHER2 MM
196
TAPERED ROLLER BEARING
196
TAPERED ROLLER BEARING
204
RING GEAR AND PINION RATIO 7:40, 797910
204
RING GEAR AND PINION RATIO: 48:7, GIEASON
204
RING GEAR AND PINION , Replaced By: A3833500039
204
RING GEAR AND PINION , Replaced By: A3833500139
204
RING GEAR AND PINION , Replaced By: A6163500139
213
SCREW , Replaced By: A3839900801
213
SCREW , Replaced By: A3839900301
213
SCREW
221
CYLINDR. ROLLER BEARING , 024901
221
CYLINDR. ROLLER BEARING
221
CYLINDR. ROLLER BEARING
221
CYLINDR. ROLLER BEARING , 024901
221
CYLINDR. ROLLER BEARING , Replaced By: A0029817901
221
CYLINDR. ROLLER BEARING , Replaced By: A0029818201
221
CYLINDR. ROLLER BEARING , Replaced By: A0029819501
221
CYLINDR. ROLLER BEARING
227
SNAP RING
227
SNAP RING TO FIX CYLINDRICAL ROLLER BEARING IN REAR AXLE HOUSING, 024901
230
SPACER WASHER0.15 MM
230
SPACER WASHER1.50 MM
230
SPACER WASHER0.5 MM
230
SPACER WASHER0.1 MM
230
SPACER WASHER0.20 MM
230
THRUST WASHER , Replaced By: A6703530752
230
THRUST WASHER , Replaced By: A6703533752
230
SPACER WASHER AS REQUIRED 0.10 MM
230
SPACER WASHER , Replaced By: A6703530652
230
SPACER WASHER , Replaced By: A6703530552
237
TAPERED ROLLER BEARING
237
TAPERED ROLLER BEARING
237
TAPERED ROLLER BEARING
245
SPACER RING15.7 MM, 004135
245
SPACER RING15 MM, 004135
245
SPACER RING
245
SPACER RING , Replaced By: A3273530551
248
SPACER WASHER AS REQUIRED 10.42 MM
248
SPACER WASHER AS REQUIRED, BRASS 10.26 MM
248
SPACER WASHER11.0 MM, 005804
248
SPACER WASHER AS REQUIRED, BRASS 10.18 MM
248
SPACER WASHER AS REQUIRED 10.38 MM
248
SPACER WASHER AS REQUIRED 10.30 MM
248
SPACER WASHER AS REQUIRED, BRASS 10.50 MM
248
SPACER WASHER AS REQUIRED, BRASS 10.10 MM
248
SPACER WASHER AS REQUIRED 10.34 MM
248
SPACER WASHER10.55 MM, 005804
248
SPACER WASHER AS REQUIRED, BRASS 10.46 MM
248
SPACER WASHER AS REQUIRED 10.14 MM
248
SPACER WASHER AS REQUIRED 10.22 MM
285
THRUST WASHER
288
SCREW COLLAR
291
SEAL RING , Replaced By: A0089970747
291
SEAL RING , Replaced By: A0169976847
291
SEAL RING
295
LOCK
295
LOCK SCREW COLLAR
298
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
301
SCREW
304
FLANGE
304
FLANGE , Replaced By: A3583500045
307
PROTECTIVE PLATE
310
NUT COUPLING FLANGE TO DRIVE SHAFT,5 298189
310
NUT FOLLOWER FLANGE TO PROPELLER SHAFT TO 384 410 70 30
310
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
999
REPAIR KIT DIFFERENTIAL GEAR
999
LOCK WELDED TO DIFFERENTIAL CASE, TO SECURE THE HEX. HEAD SCREWS, 019739
999
BRAKE DRUM REAR
999
REAR AXLE7:48 GLEASON
999
REAR AXLE7:48 KLINGENBERG
999
LOCK
999
THRUST RING LEFT
999
THRUST RING RIGHT
999
CYLINDRICAL PIN
999
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
999
GREASE NIPPLE PROTECTIVE TUBE
