Поз.
Артикул
Описание
50

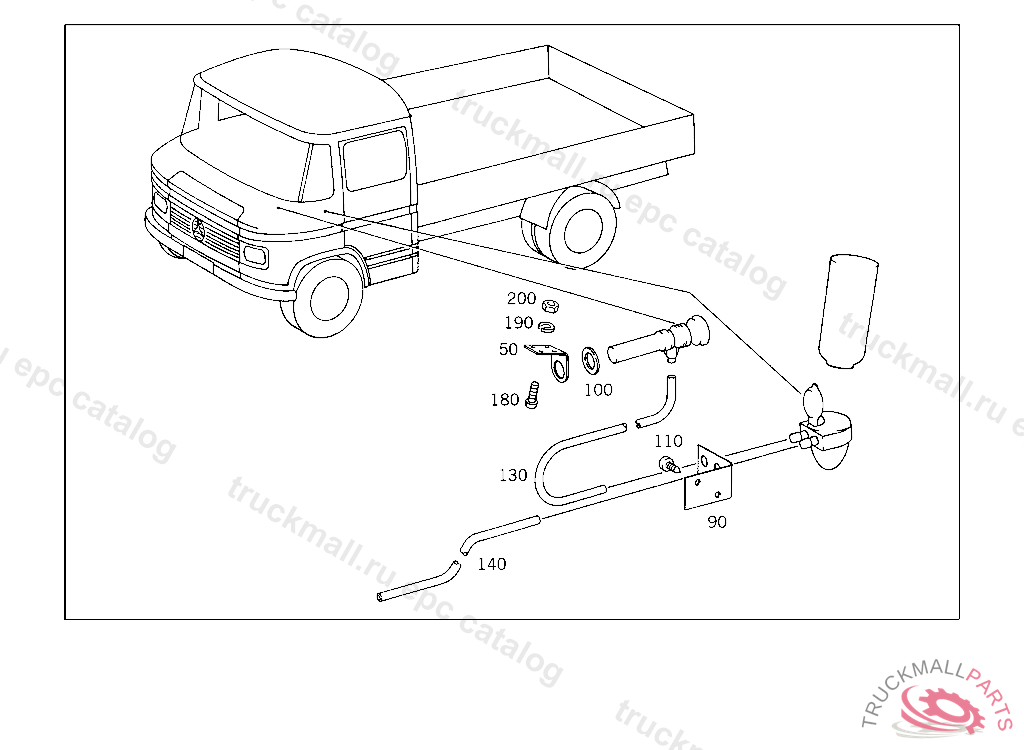

BRACKET STARTER PILOT PUMP TO WINDOW SILL
90
BRACKET STARTER PILOT PUMP TO WINDOW SILL
100
WASHER , ON SPECIAL REQUEST
110
SHEET METAL SCREW STARTER PILOT PUMP TO WINDOW SILL
130
HOSE FROM HAND PUMP TO PRIMER CAPSULE
140
HOSE FROM PRIMER CAPSULE TO SPRAY NOZZLE
180
SCREW CONTACTOR
190
LOCK WASHER LINE MOUNTING
200
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
999
PUMP , Replaced By: A0005501083
999
FILLING CYLINDER PRIMING FUEL
999
NUT , Replaced By: A0005550372
999
HANDLE , Replaced By: A0005550440
999
NUT , Replaced By: A0009949454
999
SEAL CONE , Replaced By: A0005550618
999
SCREW RIGHT COVERING
999
NUT LEVER TO SHIFTING SHAFT
999
NUT
999
SERRATED WASHER
999
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
999
LOCK WASHER
