Поз.
Артикул
Описание

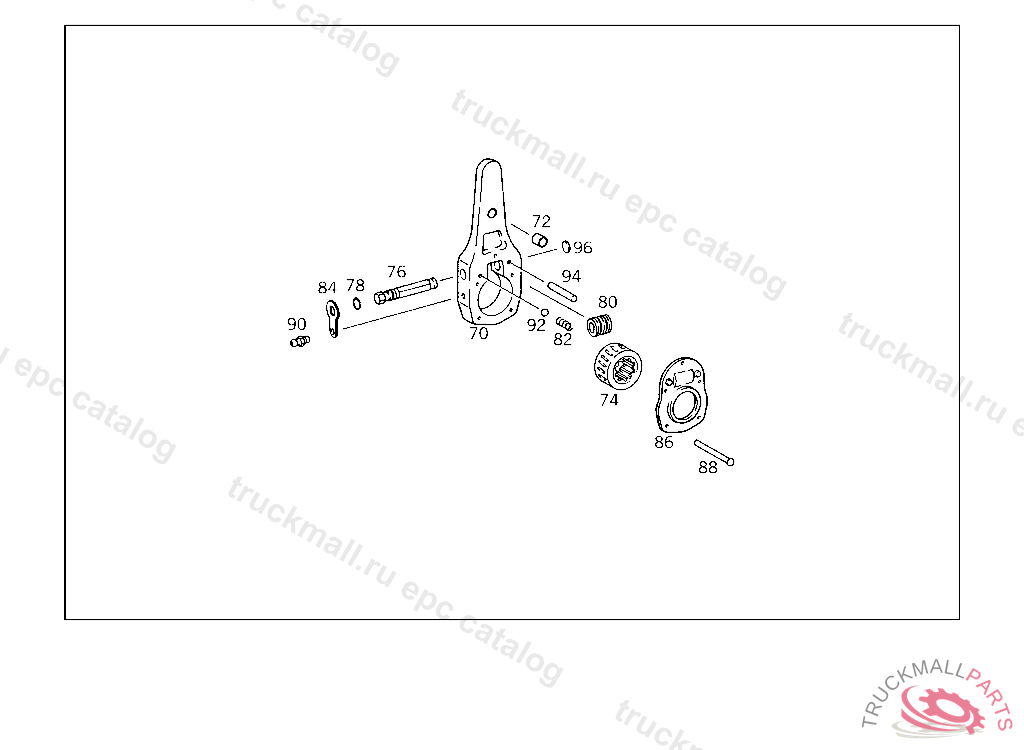

70
ADJUSTER
72
BUSHING
74
SLIDE
76
PIN
78
GROOVED RING
80
SLIDE
82
SPRING
84
LOCK
86
EXPANSION PLUG
88
CLINCH-PIN
90
GREASE NIPPLE
92
BALL
94
PIN
96
EXPANSION PLUG
999
NUT
999
YOKETO 341 420 70 24,341 420 71 24
999
SCREW
999
PIN
999
CUPTO 341 420 70 24,341 420 71 24
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BREMSSCHLAUCHHALTER. LOCK , Replaced By: A0004280473
999
BRAKE HOSE FRONT
999
DIAPHRAGMTO 344 429 73 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
BRAKE BOOSTER , Replaced By: A3444317014
999
SWITCH ADDITIONAL GEAR CLUSTER
999
SWITCH , Replaced By: A0015450809
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KIT , Replaced By: A0004301407
999
BRAKE MASTER CYLINDER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3444307901, +001A3454287024, +001A0004280026, +002A0004311602, +002N007603014106, +002N007603022102
999
REPAIR KIT , UP TO 625
999
WHEEL BRAKE CYLINDER ,A 006670
999
BRAKE HOSE , Replaced By: A0004289935
999
PROTECTIVE PLATE , FOR 002 420 77 18,003 420 78 18
999
SLIDE IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 302 421 01 29
999
WASHER , USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
THRUST PIN
999
WASHER
999
LOCK
999
PIN , 001,002,003,021 024 FROM FRONT AXLE 150307 AND REAR AXLE 1500816,005,006,007,008,0025,033 FROM REAR AXLE 1500401078417, Replaced By: A3464211174, +002A3649947009
999
ADJUSTING PIN , USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185 UP TO CHASSIS FB588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIST 743.0
999
NUT
999
SPRING
999
LOCK , Replaced By: A3469940209
999
LOCK BRAKE SHOE TO BRAKE ANCHOR PLATE, 001,002,003,021 024 FROM FRONT AXLE 150307 AND REAR AXLE 1500816,005,006,007,008,0025,033 FROM REAR AXLE 1500401078417
999
SEAL RING BRAKE SHOE TO BRAKE ANCHOR PLATE
999
PLUG , FROM REAR AXLE 060666 UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
999
SEAL WASHER
999
BUSHING
999
BEARING TUBE
999
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
BRACKET , THE OLD PART MUST NO LONGER BE INSJTALLED, Replaced By: A3834280140
999
ANGLE , USED WITH HYDRAULIC BRAKE,UP TO IDENT NO. A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
BRACKET
999
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
ROD
999
SCREW
999
SPRING , Replaced By: A3649937010
999
CLAMP LINE TO HOSE
999
CLAMP BRAKE LINE MOUNTING
999
CLAMP BREATHER LINE TO REAR AXLE
999
HOSE
999
HOSE BRAKE LINE TO REAR AXLE,4 644238
999
PAD BRAKE AND CLUTCH LEVERS
999
PEDAL PLATE
999
PEDAL
999
LINE , Replaced By: A3214291202
999
CONSOLE AIR RESERVOIR
999
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEM
999
WASHER PEDAL TO PEDAL LEVER
999
DIFFERENTIAL GEAR
999
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL
999
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL,A 059728
999
BEARING BRACKET REAR
999
REAR AXLE
999
WEB
999
WEB
999
BRACKET
999
ADJUSTER RIGHT
999
WHEEL BRAKE CYLINDER"TENSA"
999
ADJUSTER RIGHT
999
BRAKE ANCHOR PLATE
999
BRAKE ANCHOR PLATE LEFT
999
BEARING BRACKET LEFT
999
BRAKE ANCHOR PLATE RIGHT
999
BEARING BRACKET RIGHT
999
BRAKE ANCHOR PLATE RIGHT
999
BEARING BRACKET RIGHT
999
FRONT WHEEL BRAKE LEFT
999
LINE FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL,A 071619
999
FRONT WHEEL BRAKE RIGHT
999
LINE FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL,A 071619
999
BRAKE SHOE
999
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE
999
LINE FROM BRAKE MASTER CYLINDER TO REAR AXLE
999
LINE
999
LINE FROM AIR RESERVOIR TO T-FITTING
999
BRAKE SHOE
999
BRAKE SHOE
999
BRAKE SHOE
999
BRAKE CYLINDER RIGHT
999
SPRING , Replaced By: A3524210192
999
BRAKE CAMSHAFT RIGHT
999
BRAKE ANCHOR PLATE RIGHT
999
BRAKE BAND
999
LEVER
999
BRAKE ANCHOR LEFT
999
BRAKE ANCHOR RIGHT
999
BRAKE ANCHOR PLATE LEFT
999
ADJUSTING LEVER
999
BRAKE ANCHOR PLATE RIGHT
999
ADJUSTING LEVER
999
BRAKE CAMSHAFT RIGHT
999
BRAKE ANCHOR
999
BRACKET RIGHT
999
BEARING BRACKET RIGHT
999
BRAKE HOSE
999
THRUST RING COMPRESSED AIR LINE TO ELBOW FITTING
999
CONNECTOR FROM COMPRESSED AIR HOSE TO RELAY VALVE
999
SHACKLE
999
BRAKE VALVE TRAILER BRAKE VALVE
999
SEAL RINGTO 341 431 70 65
999
DIAPHRAGMTO 341 431 70 65
999
ELECTRIC CABLE FROM T-FITTING TO DOUBLE FITTING
999
ELECTRIC CABLE FROM T-FITTING TO DOUBLE FITTING
999
THRUST RING BUTT SCREW CONNECTION
999
SEAL RING , Replaced By: N007603012121
999
PULL ROD
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
999
UNION NUT
999
UNION NUT
999
SEAL RING COMPRESSED AIR LINE TO ELBOW FITTING
999
YOKE , Replaced By: A0009961501
999
GLAND LINE CONNECTION
999
COTTER PIN4X32, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
BRACKETTO 99 000 420 00 18
999
NUTTO 99 000 420 00 18
999
DIAPHRAGMTO 341 431 00 65
999
PART NAME MISSING , Replaced By: A0004231271
999
PART NAME MISSING , Replaced By: A0004230543
999
PART NAME MISSING , Replaced By: A0004231874
999
NUT , Replaced By: A0004230072
999
THRUST WASHERTO 99 000 420 00 18
999
CROSS STRUTTO 99 000 420 00 18
999
BRAKE MASTER CYLINDER , Replaced By: A3414310005
999
WHEEL BRAKE CYLINDER , Replaced By: A3414200421
999
T-FITTING
999
RESERVOIR
999
YOKE , Replaced By: A3419967001
999
FLOOR FLOOR BELOW FRONT SEATS
999
FLOOR FLOOR BELOW FRONT SEATS
999
FLOOR
