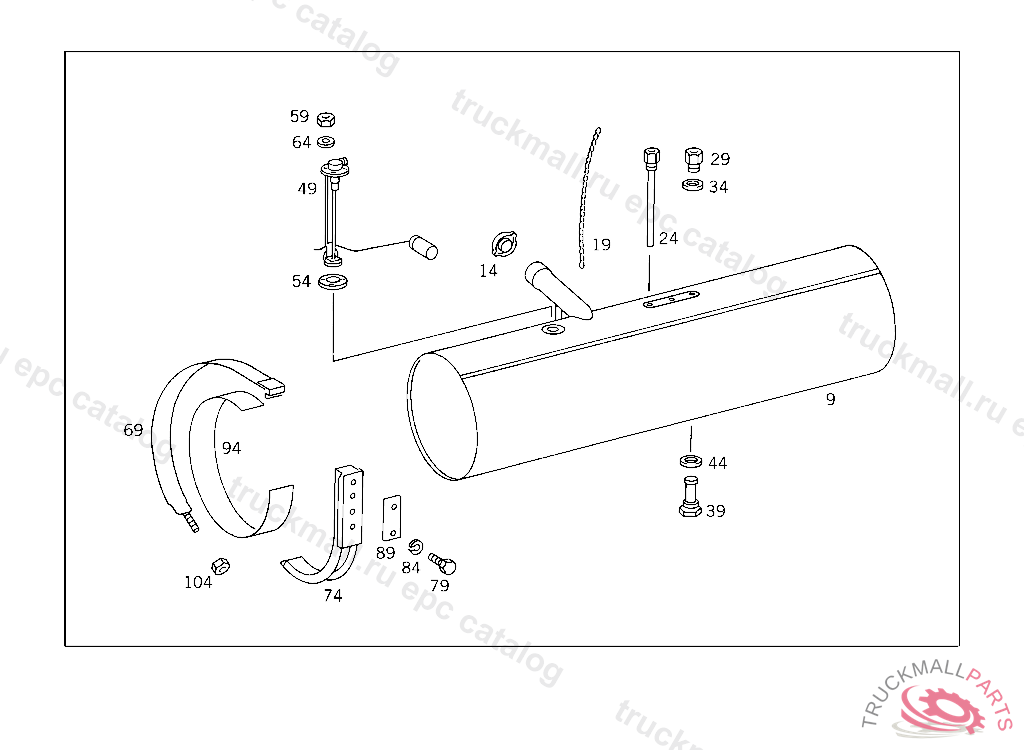

Поз.
Артикул
Описание
9
FUEL TANK
14
FILLER CAP
19
CHAIN FILLER CAP
24
RISING PIPE ,A 069205
29
FITTING
34
SEAL RING CONNECTION: 1,4 719029
39
FUEL STRAINER AT TANK
39
FUEL STRAINER AT TANK
44
SEAL RING
49
SENDER UNIT , FROM CHASSIS A 002288
54
GASKET SENDER UNIT AND COVER TO FUEL TANK
54
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
59
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
64
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
69
STRAP FUEL TANK TO SUPPORT
74
SUPPORT FUEL TANK
79
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
84
LOCK WASHER RAIL TO SUBSTRUCTURE
89
BASE SUPPORT TO SIDE MEMBER
89
SHIM CONSOLE TO SIDE MEMBER,KB860814
94
RUBBER STRIP , Replaced By: A3459837391
104
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
