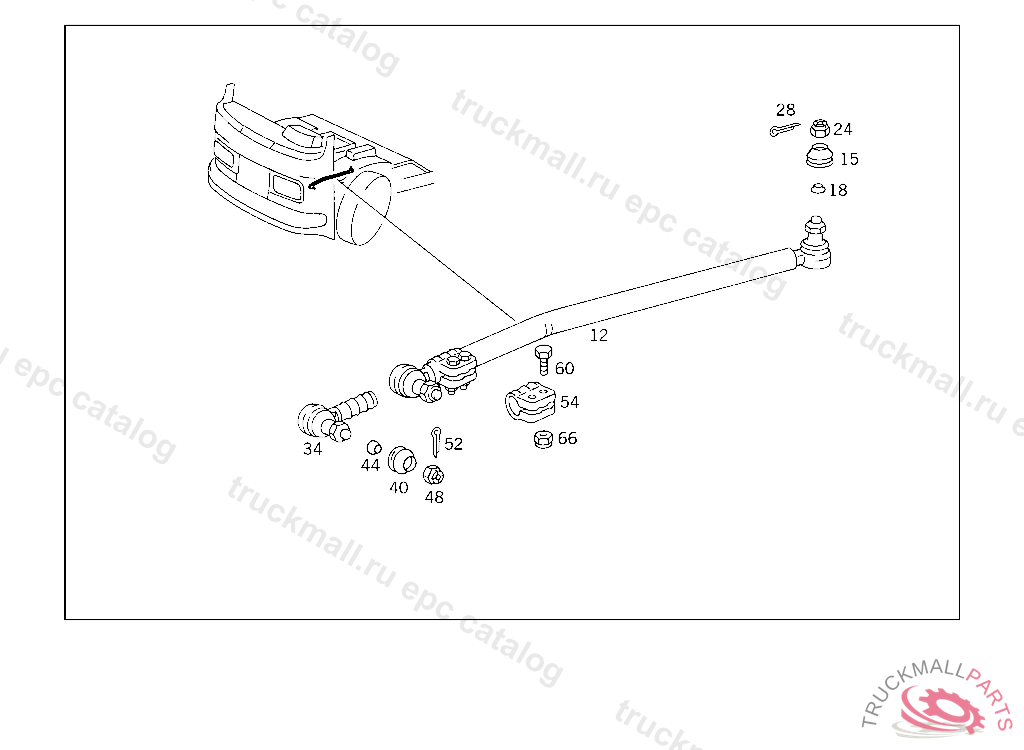

Поз.
Артикул
Описание
12
DRAG LINK
15
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
24
NUT DRAG LINK TO LEVER
28
COTTER PIN
34
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0003309335
40
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
48
NUT DRAG LINK TO LEVER
52
COTTER PIN
54
CLAMP , Replaced By: A0009954944
54
CLAMPTO 360 460 02 05
60
SCREW CLAMP TO DRAG LINK M 12X1.5X55 TO 3503387045,3763387045
66
NUT SUPPORT TO SIDE MEMBER
