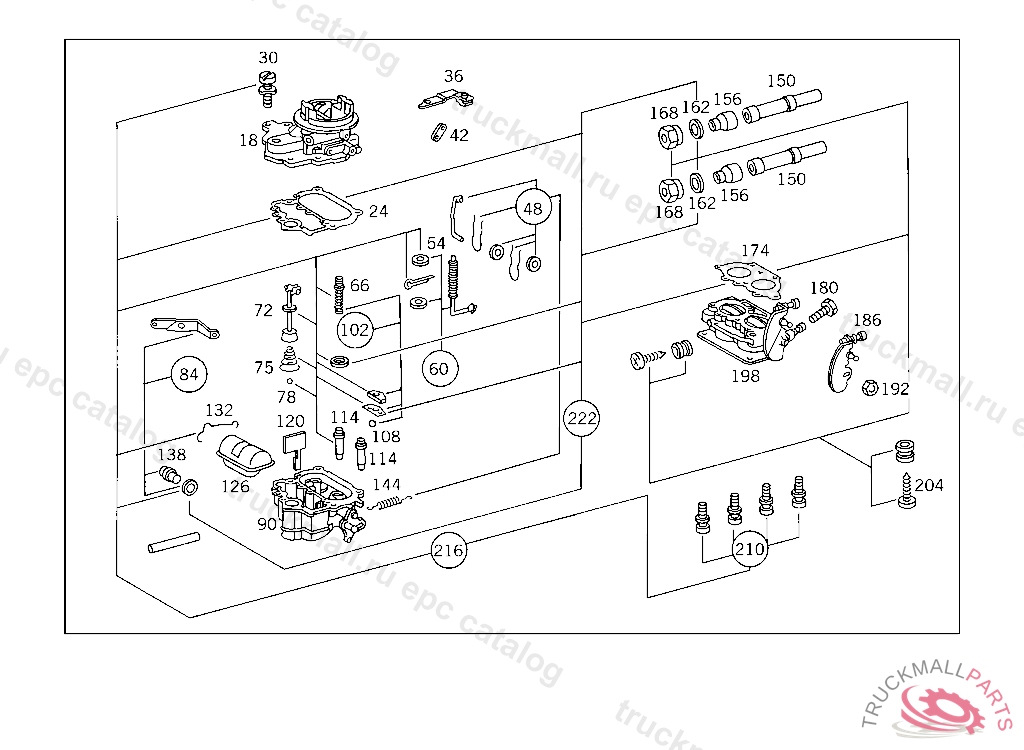

OM 352 - 344.920 - 07 CARBURETOR
Поз.
Артикул
Описание
18
COVER ,836105
18
COVER ,836104, Replaced By: A0000718404, +001A0000711418
24
GASKET
30
SCREW
36
BRACKET
42
LEVER CHOKE LEVER
48
LINK
54
WASHER , NOT USED
60
LINK
66
PLUNGER , NOT USED
72
PLUNGER ,836105
72
PLUNGER ,836104
75
SPRING
78
BALL
84
LEVER
90
CARBURETOR BODY
102
NOZZLE
108
BALL , NOT USED
114
NOZZLE
120
COVERING
126
FLOAT
132
SPRING , NOT USED
138
VALVE
144
SPRING , NOT USED
150
MIXING TUBE
156
NOZZLE
162
SEAL RING
168
SCREW PLUG
174
GASKET
180
SCREW
180
SCREW
186
LEVER
192
NUT
198
THROTTLE BODY
204
STUD
210
SCREW
216
REPAIR KIT ,836105
216
REPAIR KIT CARBURETOR,836104
222
GASKET KIT CARBURETOR
999
NOZZLE , NOT USED
