Поз.
Артикул
Описание

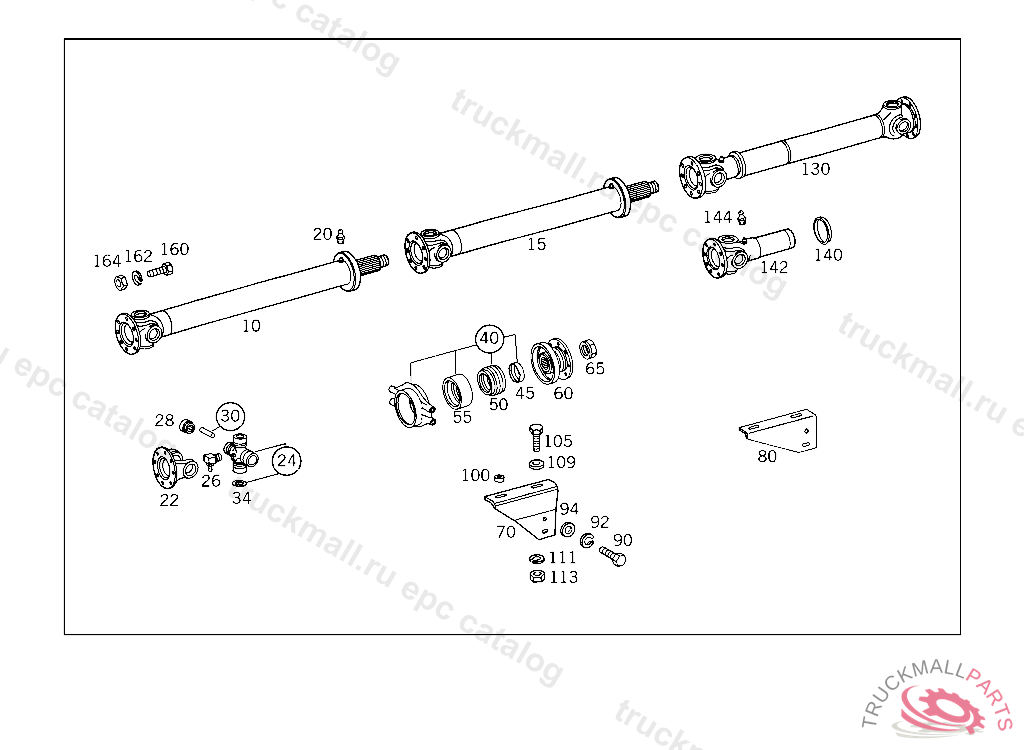

10
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I 905 MM,4 398114, 10/20
10
PROPELLER SHAFT FROM TRANSMISSION TO TELMA BRAKE 900 MM
20
GREASE NIPPLE PROTECTIVE TUBE
22
DRIVE FLANGE ,4 398114, 10/20
22
DRIVE FLANGE
24
UNIVERSAL JOINT CROSS WITH BUSHINGS
24
UNIVERSAL JOINT , Replaced By: A9424100131
24
UNIVERSAL JOINT CROSS , Replaced By: A0004101628
24
UNIVERSAL JOINT CROSS , Replaced By: A0004100231
24
UNIVERSAL JOINT CROSS , Replaced By: A6204100131
24
UNIVERSAL JOINT CROSS WITH BUSHINGS
24
UNIVERSAL JOINT CROSS WITH BUSHINGS
26
GREASE NIPPLE
28
BEARING BUSHING
28
BEARING BUSHING , WITH 10/20 UP TO CHASSIS 4 398113
30
NEEDLE SET164 PIECES TO 363 410 06 31,36.25 MM
34
LOCK AS REQUIRED 2.20 MM
34
LOCK , Replaced By: A0069942741
34
LOCK AS REQUIRED 2.10 MM
34
LOCK , Replaced By: A0069942341
34
LOCK AS REQUIRED 2.00 MM
34
LOCK , Replaced By: A0069941941
34
LOCK RING52X2 MM
34
LOCK2.075 MM
34
LOCK RING52X2 MM
34
LOCK2.000 MM
40
REPAIR KIT PROPELLER SHAFT BEARING,5 091917
40
HOUSING , Replaced By: A3874100010
45
BEARING RING INTERMEDIATE BEARING NO.1
50
BALL BEARING PROPELLER SHAFT BEARING,5 091917
50
BALL BEARING , Replaced By: A3844100051, +002A9734110052
55
RUBBER MOUNTING PROPELLER SHAFT BEARING,5 091917
55
RUBBER MOUNTING INTERMEDIATE BEARING NO.1
60
CENTERING FLANGE , WITH 10/20 FROM CHASSIS 4 398114
60
CENTERING FLANGE INTERMEDIATE BEARING NO.1
65
NUT PROPELLER SHAFT TO FOLLOWER FLANGE,5 091917
65
NUT , Replaced By: A3853510672
65
NUT COUPLING FLANGE TO DRIVE SHAFT,5 298189
65
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
65
NUT FOLLOWER FLANGE TO PROPELLER SHAFT TO 384 410 70 30
90
HEXAGON HEAD BOLT , Replaced By: A0029902704
90
SCREW , Replaced By: N308676012013
92
LOCK WASHER FITTING TO BRACKET
94
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
94
WASHER , Replaced By: N007349013003
94
WASHER , Replaced By: A3879900040
100
REINFORCEMENT
105
SCREW BRACKET TO FRAME M 12X35
105
SCREW BRACKET TO FRAME M 12X35
109
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
109
WASHER , Replaced By: N007349013003
109
WASHER , Replaced By: A3879900040
111
LOCK WASHER FITTING TO BRACKET
113
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
113
NUT , Replaced By: N910113012003
130
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE 1246 MM, THE SPECIFIED LENGTH DIMENSION IS THE DISTANCE BETWEEN BOTH OUTER FLANGE FACES WHEN FULLY TELESCOPED WITH 10/20 FROM CHASSIS 4 398114
130
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE 1247 MM
130
PROPELLER SHAFT INTERMEDIATE BEARING TO REAR AXLE 1354 MM, THE SPECIFIED LENGTH DIMENSION IS THE DISTANCE BETWEEN BOTH OUTER FLANGE FACES WHEN FULLY TELESCOPED
140
GASKET
142
UNIVERSAL JOINT ,4 398113, 10/20
144
GREASE NIPPLE
144
GREASE NIPPLE , Replaced By: N071412008102
160
SCREW
160
SCREW PROPELLER SHAFT TO TELMA BRAKE
162
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
164
NUT BRACKET TO SIDE MEMBER
999
NEEDLE
999
WASHER BRACKET TO PROPELLER SHAFT BEARING HOUSING
999
DISK , Replaced By: A1232420366
999
HOUSING INTERMEDIATE BEARING NO.1
999
REPAIR KIT INTERMEDIATE SHAFT BEARING,4 398113, 10/20
999
BRACKET RIGHT,PROPELLER SHAFT BEARING,4 951162
999
BRACKET LEFT,PROPELLER SHAFT BEARING,4 951162
999
BRACKET LEFT, WITH 10/20 UP TO CHASSIS 4 398113
999
BRACKET RIGHT, WITH 10/20 UP TO CHASSIS 4 398113
999
REPAIR KIT INTERMEDIATE SHAFT BEARING
999
BALL BEARING INTERMEDIATE BEARING NO.1
999
GASKETTO 363 410 06 31
999
REPAIR KIT , Replaced By: A3874100010
999
NUT STRAP TO SUPPORT
999
SCREW ,5 903514, Replaced By: N000961012205
999
SCREW , Replaced By: N308676012015
999
SCREW , Replaced By: N308676012012
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW TORSION BAR TO BEARING BRACKET M 12X50,5 903514
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
PLUG
