Поз.
Артикул
Описание

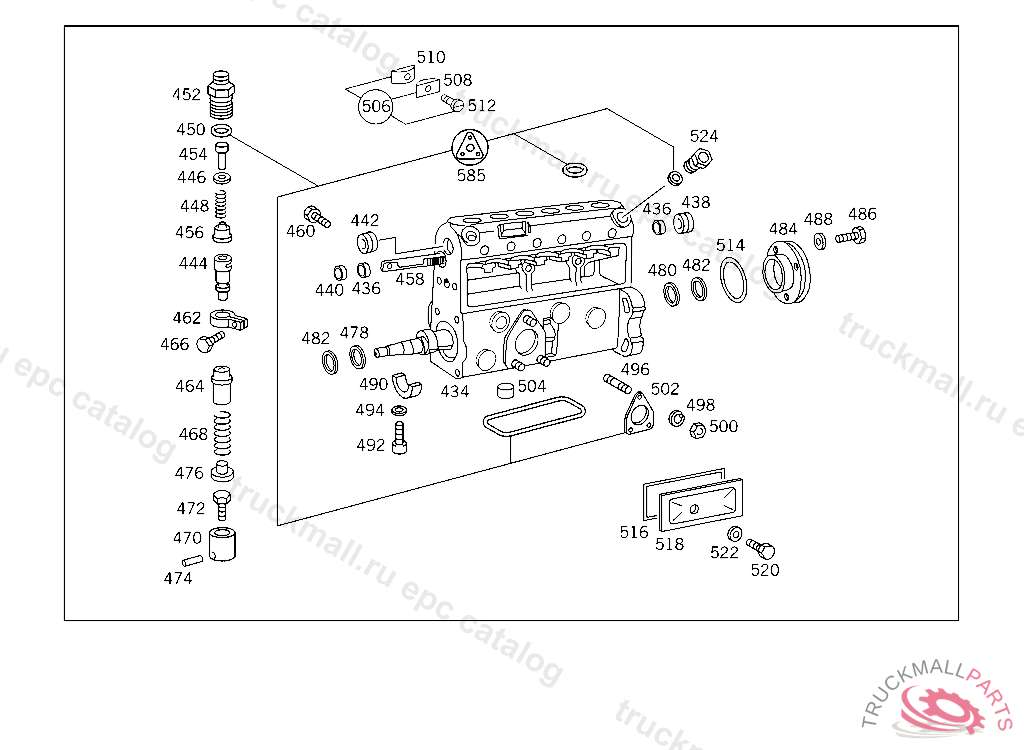

434
INJECTION PUMP
434
INJECTION PUMP
436
BUSHING CONTROL RACK
438
SCREW
440
BUSHING CONTROL RACK
442
SCREW
444
PUMP ELEMENT
446
SEALING RING. SEAL RING
448
SPRING
450
SEAL RING , FROM ENGINE 392484 YEAR OF MANUFACTURE 1995
452
FITTING , FROM ENGINE 392484 YEAR OF MANUFACTURE 1995
454
ELEMENT
456
VALVE
458
CONTROL RACK
460
SCREW
462
TOOTHED SEGMENT22.70 MM
462
TOOTHED SEGMENT
464
CONTROL SLEEVE
466
SCREW
468
SPRING
470
TAPPET
472
SCREW
474
PIN
476
SPRING RETAINER
478
GOVERNOR SPINDLE
480
SPACER WASHER
482
SPACER WASHER0.16 MM
482
SPACER WASHER0.12 MM
482
SPACER WASHER0.14 MM
482
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.10 MM
482
SPACER WASHER0.18 MM
482
SPACER WASHER AS REQUIRED 0.30 MM
482
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.30 MM
482
SPACER WASHER0.16 MM
482
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.10 MM
482
SPACER WASHER0.12 MM
482
SPACER WASHER1.00 MM
482
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.14 MM
482
SPACER WASHER AS REQUIRED 0.50 MM
482
SPACER WASHER0.18 MM
482
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 1.00 MM
482
SPACER WASHER0.50 MM
484
COVER
486
SCREW (OPERATING MAGNET)
488
SEAL RING
490
BEARING
492
SCREW
494
SEAL RING
496
STUD , Replaced By: A0009909505
498
LOCK WASHER
500
NUT
502
GASKET FUEL PUMP TO INJECTION PUMP, FROM ENGINE 399032 YEAR OF MANUFACTURE 1995
504
EXPANSION PLUG
506
CLAMPING PIECE PARTS KIT
508
CLAMPING PIECE WITH THRU HOLE
510
CLAMPING PIECE THREADED
512
SCREW
514
SEAL RING
516
GASKET
518
COVER
520
SCREW
522
SEAL RING ,295837/93
524
VALVE ,295838/93
585
SEAL RING PUMP ELEMENT
999
PIN , NOT USED
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE III, HEIGHT: 61.9 MM,97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE II, HEIGHT: 62.2 MM,97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM,METAL LEVE
999
PISTON STANDARD 97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 61.6 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.2 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM, MAHLE
999
PISTON STANDARD 97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE III, HEIGHT: 61.9 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE II, HEIGHT: 62.2 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM, MAHLE
999
COVER
