Поз.
Артикул
Описание

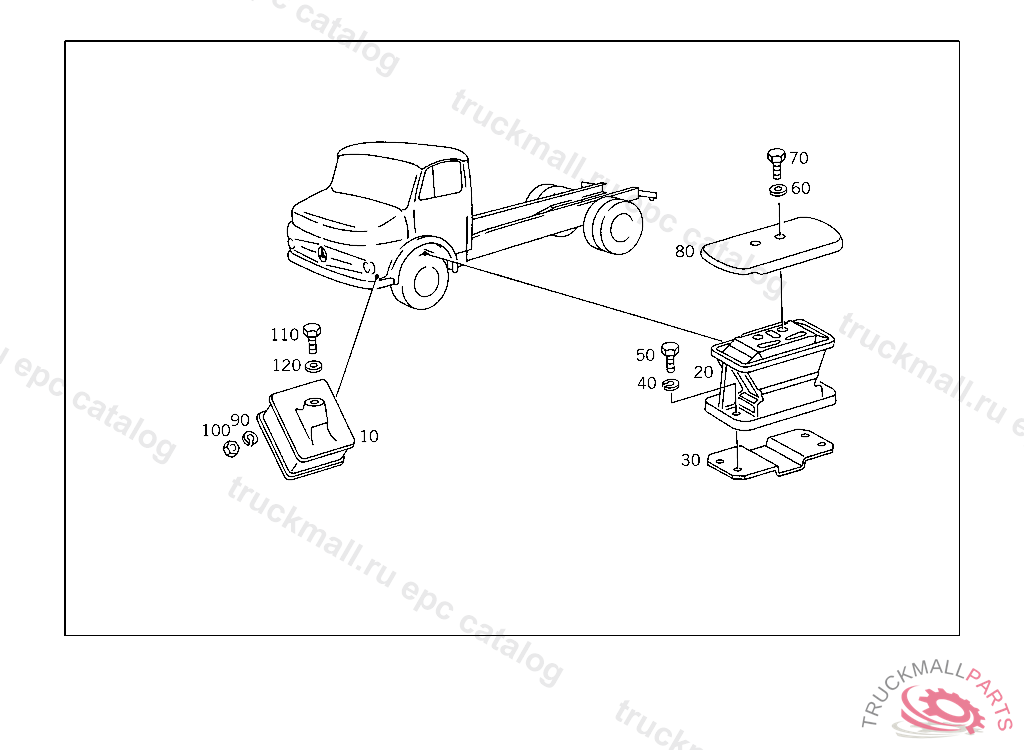

10
RUBBER MOUNTING FRONT
20
RUBBER MOUNTING CLUTCH END,D 351492 350.033 UP TO IDENT NO. 680088
30
SHIM
40
LOCK WASHER BRACKET TO SUPPORTING ARM
50
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
60
WASHER CONSOLE TO FRAME
70
SCREW REAR RUBBER MOUNTING
80
DUST CAP RIGHT
80
DUST CAP REAR LEFT RUBBER MOUNTING
90
LOCK WASHER BRACKET TO SUPPORTING ARM
100
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
110
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS M 16X55
120
WASHER CONSOLE TO FRAME
