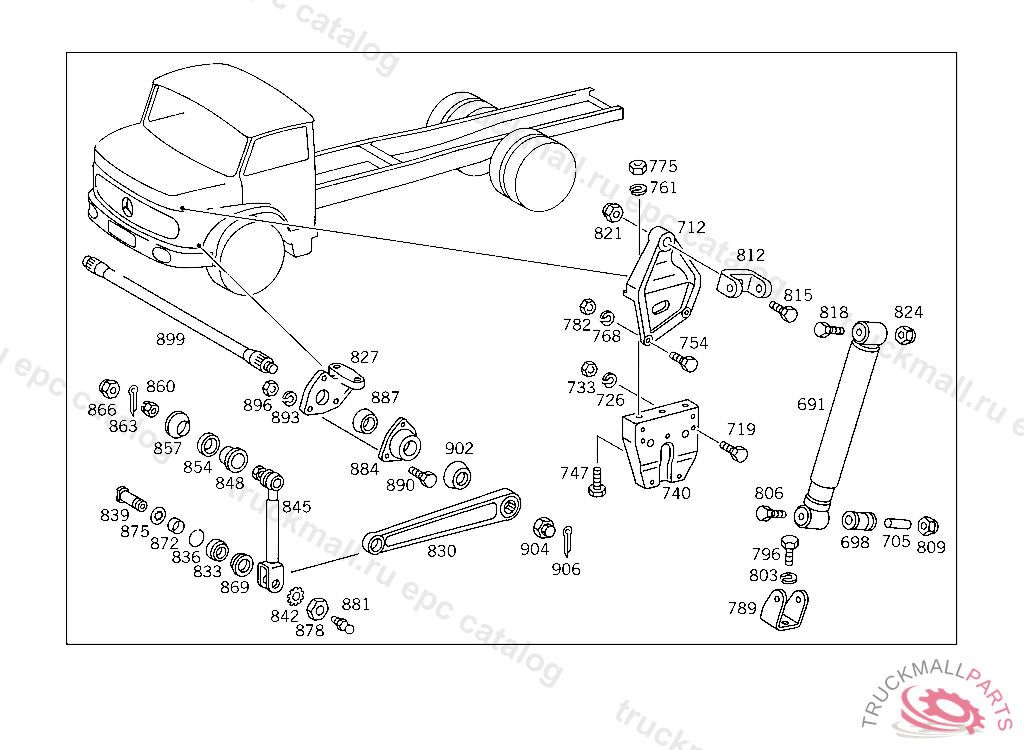

Поз.
Артикул
Описание
691
SHOCK ABSORBER"FRIC-ROT"
691
SHOCK ABSORBER , Replaced By: A3513237100
691
SHOCK ABSORBER ,1B 868785, Replaced By: A3843237000
698
RUBBER MOUNTING , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
698
RUBBER MOUNTINGTO 351 320 70 30
698
RUBBER BUFFERTO 351 323 71 00
705
BUSHINGTO 351 320 70 30
705
SPACER TUBE , Replaced By: A0003232550
705
BUSHINGTO 351 323 71 00
712
BEARING BRACKET SHOCK ABSORBER,TOP, FROM IDENT NO. 802165 ALSO INSTALLED ON:500001-599999
719
SCREW INTERMEDIATE PIECE,ADAPTER HOUSING
726
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
733
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
740
REINFORCEMENT
747
SCREW , Replaced By: N304017010002
754
SCREW
754
SCREW ,A 006846
761
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
768
LOCK WASHER BRACKET TO SUPPORTING ARM
775
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
782
NUT FUEL TANK TO CONSOLE
789
BEARING BRACKET BOTTOM LEFT,AT SHOCK ABSORBER
789
BEARING BRACKET BOTTOM RIGHT, AT SHOCK ABSORBER
796
SCREW , Replaced By: N000961012051
803
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
806
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET
809
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
812
BRACKET SHOCK ABSORBER, 030,032,033,040,041 FROM CHASSIS 488608, 132,133,140,141 FROM CHASSIS 522569
815
SCREW SHOCK ABSORBER TO TOP BRACKET, FROM IDENT NO. 802165 ALSO INSTALLED ON:500001-599999
818
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET
821
NUT , Replaced By: N913004020003
824
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
827
BEARING BRACKET TORSION BAR,FRONT
830
LEVER FRONT AXLE STABILIZER
833
JOINT BEARING , Replaced By: A0009817231
833
JOINT BEARING , Replaced By: A0009817331
833
JOINT BEARING FRONT AXLE STABILIZER
836
SNAP RING FRONT AXLE STABILIZER
839
PIN ARTICULATED ROD TO LEVER,D 012295
842
TOOTHED WASHER ROD TO TORSION BAR
845
ROD TORSION BAR TO FRAME SKF
845
ROD
845
ROD TORSION BAR TO FRAME LEMFOERDER
848
SPACER RINGTO 345 320 73 89
854
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300785
857
DUST CAPTO 345 320 73 89
860
NUT TORSION BAR TO FRAME
863
COTTER PINTO 360 320 01 89
866
NUT BRACKET TO BATTERY CASE
869
SEAL RING ROD TO TORSION BAR
872
SPACER TUBE
875
TOOTHED WASHER ROD TO TORSION BAR
878
NUT ARTICULATED ROD TO LEVER
881
GREASE NIPPLE PROTECTIVE TUBE
884
HOUSING STABILIZER,D 012295
887
RUBBER MOUNTING FRONT STABILIZER
890
SCREW REAR EXHAUST PIPE TO MUFFLER
893
LOCK WASHER , Replaced By: N912004010102
896
NUT BRACKET TO FRAME
899
TORSION BAR BODY MOUNTING
902
SPACER RING FRONT AXLE STABILIZER
904
NUT LEVER TO TORSION BAR
906
COTTER PIN6.3X63 MM
