Поз.
Артикул
Описание

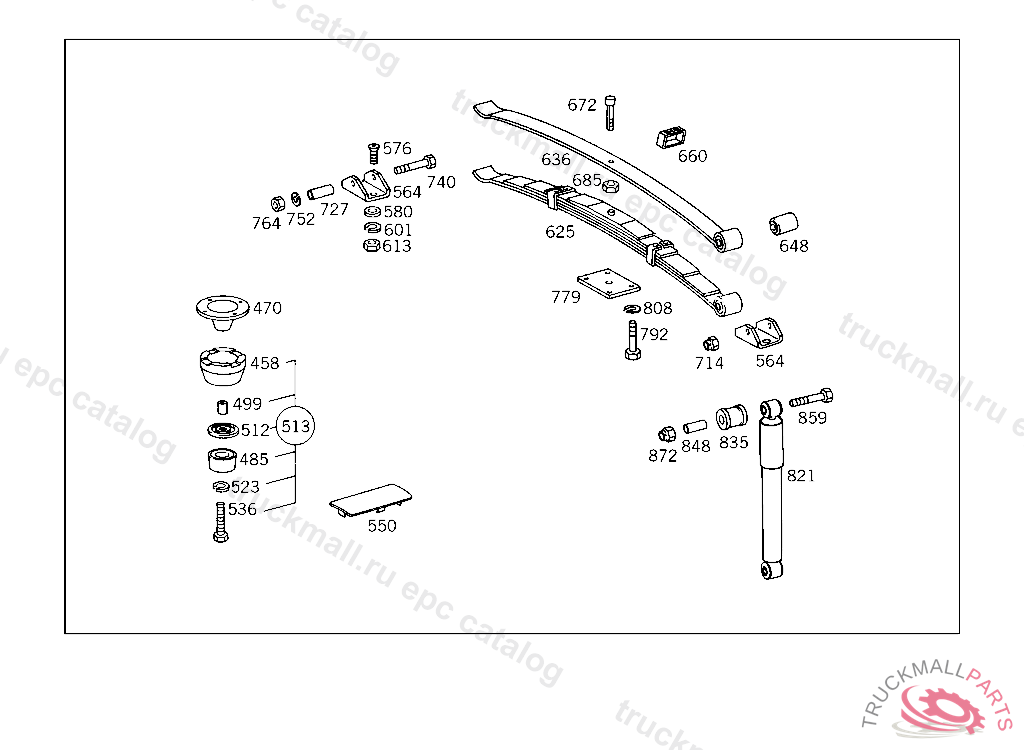

458
RUBBER MOUNTING CAB MOUNTING,FRONT
470
MOUNTING CENTRAL, FROM CAB 112552, UP TO CAB 112551 SEE MICROFICHE
485
RUBBER BUFFER, BOTTOM. RUBBER BUFFER CAB MOUNTING,FRONT
499
SPACER TUBE HYDRAULIC LINE TO BELL HOUSING
512
RETAINER CAB MOUNTING,FRONT
512
WASHER , Replaced By: A1203330567
513
REPAIR KIT CAB MOUNTING,FRONT
523
LOCK WASHER FITTING TO BRACKET
536
SCREW CONSOLE TO SIDE MEMBER
536
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
536
HEX.-HD.SCREW. SCREW , Replaced By: N000961012079
550
PLATE COVERING TO FRAME, FROM CAB 112552, UP TO CAB 112551 SEE MICROFICHE
564
BRACKET CAB SUSPENSION
576
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT M10X25
576
SCREW , Replaced By: N000000000011
580
WASHER RADIATOR TO RUBBER MOUNTING
580
WASHER , Replaced By: N000125010532
601
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
613
NUT BRACKET TO SUPPORT AND TO END PIECE
625
SPRING
636
SPRINGNO.1
648
RUBBER MOUNTING
660
SPRING CLAMP
660
SPRING CLAMP , Replaced By: A0033211933
672
SPRING BOLT
685
NUT
714
NUT PLATFORM MOUNTING
727
SPACER TUBE LEAF SPRING TO CONSOLE
740
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
752
LOCK WASHER FITTING TO BRACKET
764
NUT PLATFORM MOUNTING
779
PLATE LEAF SPRING TO CAB
779
PLATE , Replaced By: A3358910411
792
SCREW MOUNTING AND RAIL TO LEAF SPRING
808
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
821
SHOCK ABSORBER
821
SHOCK ABSORBER , Replaced By: A3448910005
835
RUBBER MOUNTING ,4 330046
835
RUBBER MOUNTINGFICHTEL&SACHS
835
RUBBER BUFFER , Replaced By: A0003234385
848
BUSHINGFICHTEL&SACHS
848
BUSHING
848
BUSHINGTO 682 317 71 03
859
SCREW , Replaced By: N000960012384
859
SCREW , Replaced By: N000960012197
859
SCREW , Replaced By: N000960012062
872
NUT PLATFORM MOUNTING
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: N308676012013
999
SCREW , Replaced By: A3959900501
999
SCREW , Replaced By: A0029908201
999
SCREW , Replaced By: A3169900014
999
SCREWM 14X14X22X40
999
BRACKET , UP TO CHASSIS 657239 EXCEPT FOR 500001-599999, Replaced By: A3523170240, +002A3529900030, +002N000125010518, +002N000934010014, +002N912004010102
999
SCREW , 034 UP TO CHASSIS A 004589
999
SCREW , Replaced By: N000960012082
999
SCREW LEAF SPRING TO CONSOLE AT CAB, FROM CHASSIS 781744 ALSO INSTALLED ON 500001-599999
999
SCREWM 14X14X18X32
999
SCREWM 14X14X27X45
999
WASHER CAB CONSOLE TO SIDE MEMBER
999
CONSOLE , Replaced By: A3453107263
999
SCREWM 16X18X18X40
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
STRUT RIGHT
999
CROSS MEMBERNO.3
999
CONSOLE LEFT
999
CONSOLE RIGHT
999
REINFORCEMENT
999
BRACKET , ON CAB 331
999
SCREWM 12X13X18X35
999
SCREWM 12X14X13X35
999
SCREWM 14X14X24X42
999
ANGLE RIGHT
999
SCREWM 14X15X15X32
999
SCREWM 14X15X21X38
999
SCREW PLATE TO SIDE MEMBER
999
SCREWM 16X17X22X42
999
SCREWM 12X13X21X38
999
SCREWM 14X15X27X44
999
SCREWM 14X15X17X34
999
SCREWM 14X15X29X46
999
SCREWM 14X15X19X36
999
SCREWM 12X13X15X32
999
SCREW , Replaced By: A0009906314
999
SCREWM 14X14X32X50
999
SCREWM 12X13X35X52
999
SCREWM 14X15X35X52
999
SCREWM 14X15X31X48
999
SCREWM 10X11X26.5X46
999
SCREWM 12X12X10X25
999
SCREW , Replaced By: A3229903101
999
SCREW , Replaced By: N308676016020
999
SCREWM 16X16X22X40
999
SCREW , Replaced By: N000961016118
999
SCREWM 12X12X11X26
999
SCREWM 12X12X13X28
999
SCREWM 16X16X20X38
999
SCREWM 16X16X30X48
999
SCREWM 16X16X32X50
999
SCREWM 14X14X18X34
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
SCREWM 18X18X23X45
999
SCREW , Replaced By: N000961018043
999
SCREWM 16X18X63X85
999
SCREWM 16X16X20X45
999
SCREWM 12X13X13X30
999
SCREWM 12X13X23X40
999
SCREWM 16X18X26X48
999
SCREWM 12X13X12X29
999
SCREWM 16X18X38X60
999
SCREWM 12X13X25X42
999
SCREWM 16X16X38X90
999
SCREWM 14X15X18X35
999
SCREWM 16X17X24X44
999
SCREWM 12X13X63X85
999
SCREWM 12X13X58X80
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER
999
FITTED SCREWM 10X11X14X28
999
FITTED SCREWM 10X11X24X40
999
FITTED SCREWM 18X19X57X85
999
FITTED SCREWM 10X11X25X38
999
FITTED SCREWM 18X19X25X45
999
FITTED SCREWM 18X19X38X60
999
FITTED SCREWM 18X19X33X55
999
RIVET SPRING CLAMP TO SPRING LEAF NO.4
999
SCREW , Replaced By: N304017008023
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010028
999
NUT , Replaced By: N304032010002
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673012002
999
NUT BRACKET TO SIDE MEMBER
999
NUT SHOCK ABSORBER TO CONSOLE AND TO CAB, UP TO CHASSIS 781743 EXCEPT FOR 500001-599999
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SCREW CABLE HARNESS MOUNTING
999
SCREW BRACKET TO SIDE MEMBER
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
NUT
999
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW CONSOLE TO FRAME
999
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
999
RIVET REINFORCEMENT TO SIDE MEMBER
999
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET10X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 10X38 MM
999
RIVET10X18 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 12X42 MM
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
RIVET BRACKET TO FRAME
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT STEERING SUPPORT TO FRAME
999
NUT CONSOLE TO SUPPORT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113014000
999
NUT , Replaced By: N910113016001
999
NUT TORSION BAR TO BEARING BRACKET,5 904661
