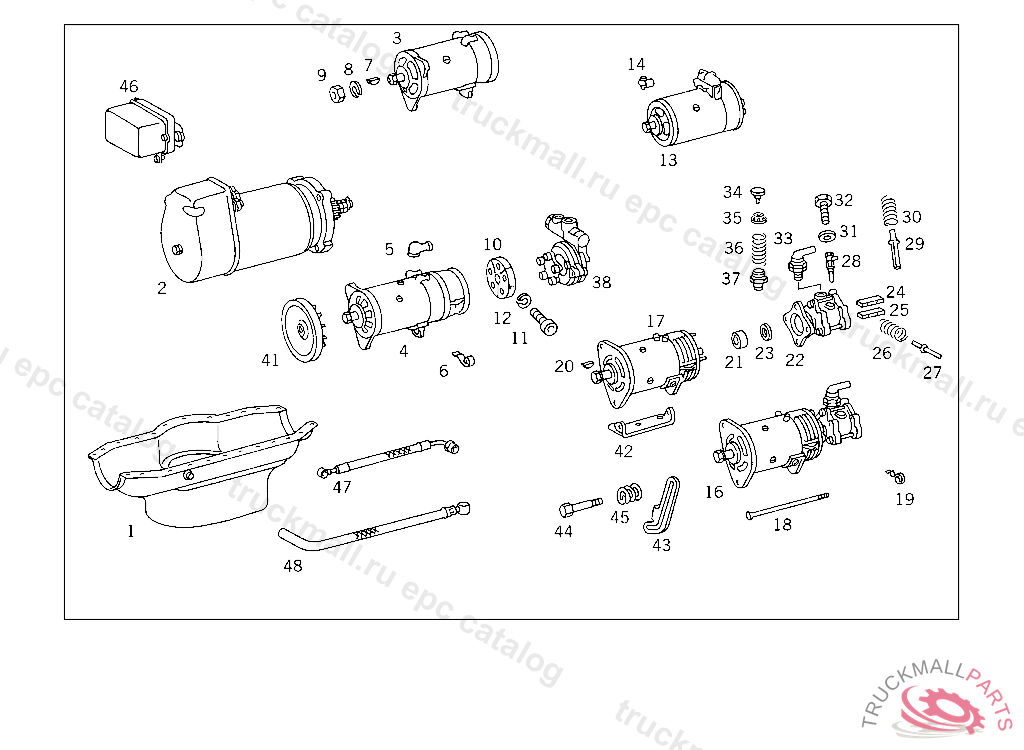

Поз.
Артикул
Описание
1
OIL PAN
2
STARTING MOTOR , Replaced By: A0011519601
3
ALTERNATOR12 V 38 A
4
ALTERNATOR12 V 35 A
5
BOOT , Replaced By: A0005463335
5
BOOT HEATER PLUGS
6
SPRING CARBON BRUSH, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
7
WOODRUFF KEY POWER STEERING PUMP
8
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
9
NUT BRACKET TO SIDE MEMBER,K 035196
9
NUT , Replaced By: N308673014001
10
COUPLING HALFTO 001 154 49 02, 000 154 80 01
11
SCREW
12
LOCK WASHERTO 001 154 49 02, 000 154 80 01
13
ALTERNATOR12 V 300 W
14
CLAMP
16
ALTERNATOR WITH VACUUM PUMP 12 V 300 W
17
ALTERNATOR LESS VACUUM PUMP
18
STUD
19
SPRING CARBON BRUSH, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
20
WOODRUFF KEY POWER STEERING PUMP
21
COUPLING HALF
22
PUMP VACUUM PUMP
23
SEAL RING
24
SLIDE PLATE
25
SLIDE PLATE
26
SPRING
27
PIN
28
VALVE
29
VALVE PART
30
SPRING
31
SEAL RING PNEUMATIC VALVE
31
SEAL RING , Replaced By: N007603010110
32
HOLLOW SCREW
33
VALVE SUCTION LINE
34
VALVE DISCTO 000 429 48 30
35
VALVE DISCTO 000 429 48 30
36
SPRING
37
FITTING
38
HYDRAULIC PUMP WITH FLEXIBLE COUPLING
41
PULLEY
42
SUPPORT ,000032
43
CLAMP ,000032
44
PIN ,000032
45
SPRING
46
REGULATOR AND CUT-OUT , Replaced By: A0011544706
46
REGULATOR AND CUT-OUT300 W/12 V,011743-012876 ON SPECIAL REQUEST, SHIELDED GENERATOR
47
HOSE OIL PRESSURE GAUGE
48
OIL LINE FROM BOOSTER VALVE TO CONNECTOR
999
ARMATURETO 001 151 41 01,001 151 38 01
999
CARBON BRUSH SETTO 000 151 33 01, 001 151 38 01
999
ARMATURE , Replaced By: A0001514315
999
SPRINGTO 001 151 38 01
999
ARMATURE
999
CARBON BRUSH SET
999
COVER PLATE WITH VENT
999
COVER PLATE LESS VENT
999
CARBON BRUSH SET SET4 PIECES, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
HOUSING
999
COVER
999
PISTON
999
CARTRIDGE
999
BRACKET
999
PIN
999
BRACKET , Replaced By: A0004660140
999
DRIVE SHAFT
999
BUSHING
999
BOOT , Replaced By: A0005463335
999
CLAMP
999
SEALING CORD
999
SCREW
999
SPRING
999
SPRING
999
LOCK
999
FITTING
999
ALTERNATOR24 V
999
REGULATOR AND CUT-OUT
999
REGULATOR AND CUT-OUT
999
REGULATOR AND CUT-OUT
999
SEALING CORD
999
V-BELT
999
SEAL RINGTO 001 151 38 01
999
SEAL RING
999
LOCK
999
OIL PAN
999
PULLEY
999
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
999
SCREW REAR FOGLAMP BLIND PLUG SOCKET TO REAR CROSS MEMBER COVER PLATE M 3X10
999
CYLINDRICAL HEAD. SCREW , 10/20 695198 50/60 696574
999
CYLINDRICAL HEAD SCREW. SCREW
999
WASHER , WITH BM 346.910,941,943,945 FOR L-VEHICLES UP TO ENGINE 016447 WITH BM 346.912,917,941,942,944,946,952 FOR LP-VEHICLES UP TO ENGINE 017592
999
WASHER
999
LOCK WASHER
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW TERMINAL D
999
SCREW , Replaced By: N304017010002
999
SCREWM 10 X 52
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N308673014001
999
TOOTHED WASHER
999
SEAL RING LINE CONNECTION
999
SEAL RING
999
SEAL RING VALVE TO VALVE,K 025179
999
NARROW V-BELT , Replaced By: A0039972992
999
SNAP RING
999
SCREW BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
CLAMP HOSE TO PRESSURE REGULATOR
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SCREW FITTING LUBRICATING LINE
999
HOLLOW SCREW LINE CONNECTION
