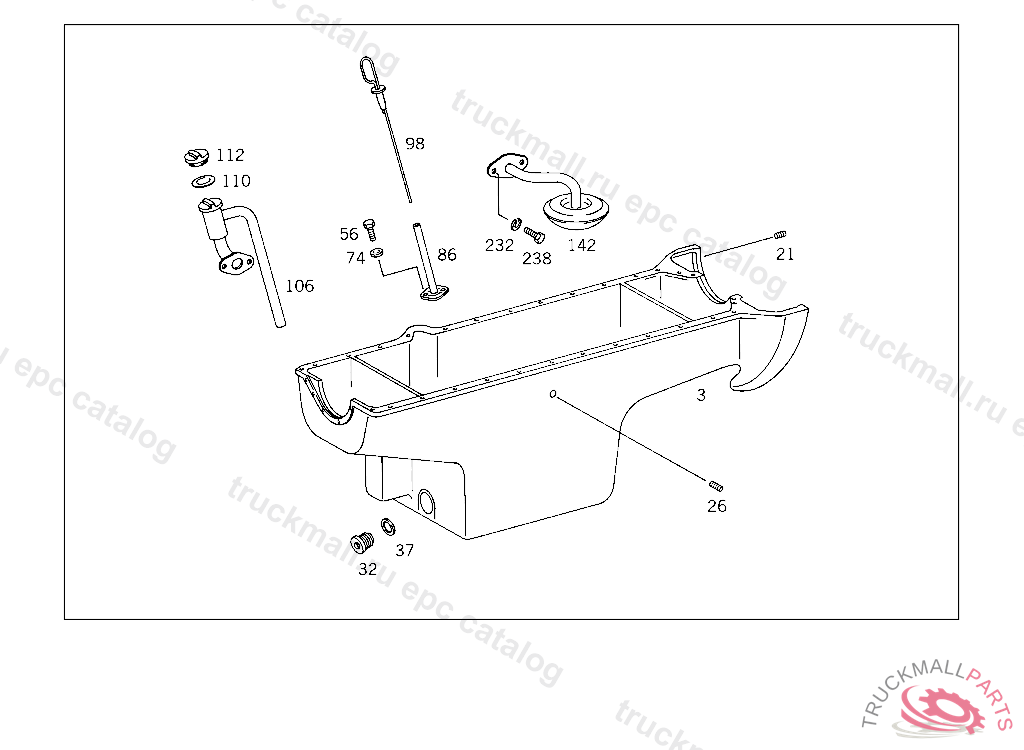

Поз.
Артикул
Описание
3
OIL PAN
3
OIL PAN
3
OIL PAN
21
THREADED INSERT
26
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
32
SCREW PLUG
37
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
56
SCREW OIL FILTER TO SUPPORT M 8X150
74
SEAL RING VALVE TO VALVE,K 025179
86
GUIDE TUBE ,000501 910,914,915 UP TO ENGINE 043950 ALSO INSTALLED ON 043994,043999,SEE FOOTNOTE 59, Replaced By: A3550100466, +001A3550101172
86
GUIDE TUBE , 910,914,915,951 FROM ENGINE 043951 EXCEPT FOR 043994,043999 CONTINUED,SEE FOOTNOTE 61 ON REPLACEMENT FOR 326 010 02 66,REWORK HOLE SPACING FROM 37MM TO 40MM
98
OIL DIPSTICK
106
OIL FILLER NECK WITH BREATHER PIPE
110
GASKET , Replaced By: A1020180380
110
GASKETTO 352 010 01 68
110
GASKET , Replaced By: A1020180080
110
GASKET
112
CAP OIL REFILLING
142
SUCTION PIPE
232
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
238
SCREW PIPE CLAMP
238
SCREW , Replaced By: N304017008021
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
OIL PAN
999
OIL DIPSTICK
999
SUCTION PIPE
999
DRIVE SHAFT
999
OIL PAN
999
PIN BRAKE CYLINDER AND ANGULAR LEVER TO OIL PAN
999
COVER
999
BREATHER PIPE
999
FLYWHEEL , Replaced By: A3550301005
999
OIL PUMP
999
HOUSING
999
SCREW ,058651
999
SCREW PLUG , Replaced By: A4039970230
999
SCREW PLUG AT TANK
999
CAP , Replaced By: A0000180702
999
OIL DIPSTICK
999
OIL PAN , 910,914,915,951 FROM ENGINE 043951 EXCEPT FOR 043994,043999 CONTINUED,SEE FOOTNOTE 61
999
GUIDE TUBE
999
OIL PAN
999
OIL PAN
999
CRANKCASE
999
FLYWHEEL WITH RING GEAR
999
PIN , 035612
999
SUCTION PIPE , Replaced By: A3551800852
999
SUCTION PIPE WITH RQV GOVERNOR
999
SCREW PLUG
999
WASHER , 034 UP TO CHASSIS A 004589
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK WASHER DELIVERY AND SUCTION LINES TO PIPE CLAMP,1401150112256208
999
HEX. HEAD. SCREW ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
999
SCREW BRACKET TO TRANSMISSION CASE
999
SCREW BRACKET TO SIDE MEMBER, 815770
999
SCREW COMPRESSED AIR ELBOW
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008045
999
SCREW , Replaced By: A0099900101
999
NUT , Replaced By: N304032008006
999
NUT
999
SEAL RING LINE CONNECTION
999
SEAL RING AT AIR COMPRESSOR
999
SCREW PLUG
999
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO BEARING BRACKET
999
NUT
999
SEAL. GASKET , Replaced By: A3661880880
