Поз.
Артикул
Описание

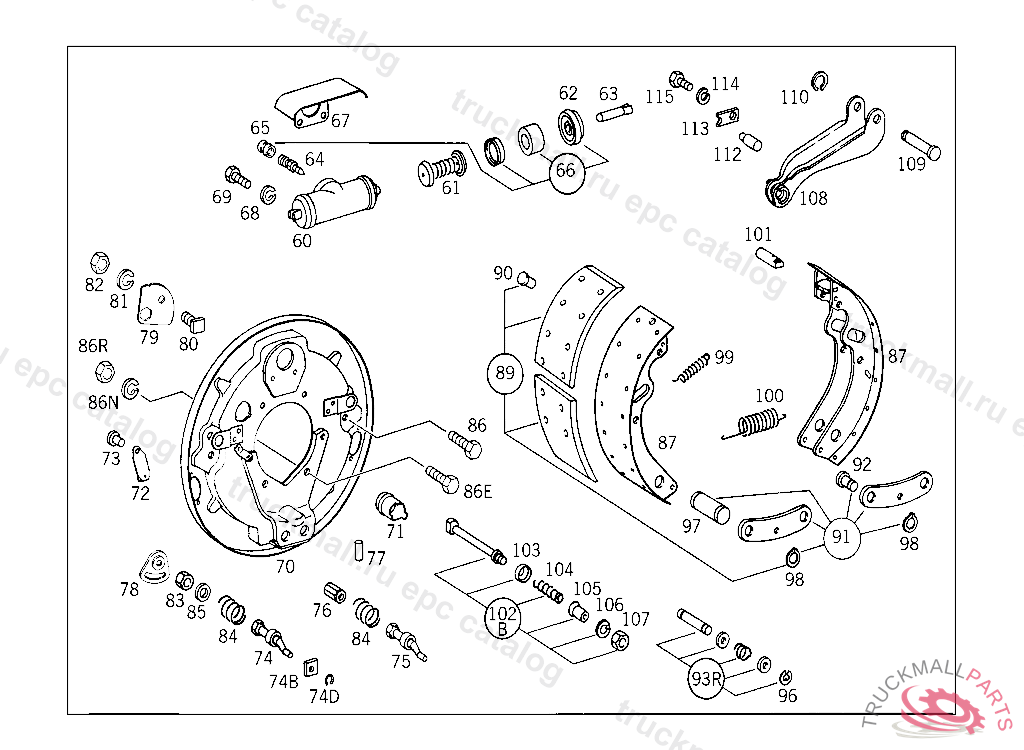

60
WHEEL BRAKE CYLINDER44.45 MM,TEVES
61
SPRING , FOR 002 420 77 18,003 420 78 18
62
PROTECTIVE CAP , Replaced By: A3454237087
63
THRUST PINTEVES
64
VALVE , Replaced By: A3075530107
64
VALVE CLUTCH SLAVE CYLINDER
65
PROTECTIVE CAP , Replaced By: A0004210887
65
PROTECTIVE CAP , Replaced By: A0004217187
65
PROTECTIVE CAP ,5 962906
65
PROTECTIVE CAP , Replaced By: A0004217187
66
REPAIR KITTEVES
67
PROTECTIVE PLATE , FOR 002 420 77 18,003 420 78 18
68
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
69
SCREW BRACKET TO SIDE MEMBER
70
BRAKE ANCHOR PLATE LEFT, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
71
PIPE SOCKET BRAKE ANCHOR PLATE
72
INSPECTION HOLE COVER
73
RIVET
74
ADJUSTING PIN , Replaced By: A3025860042
75
ADJUSTER , Replaced By: A3025860442
76
HEXAGONAL PIECE BRAKE ANCHOR PLATE TO REAR AXLE TUBE
77
GROOVED PIN BRAKE READJUSTMENT
79
LOCK BRAKE ANCHOR PLATE TO REAR AXLE TUBE
80
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
81
LOCK WASHER FITTING TO BRACKET
82
NUT STRAP TO SUPPORT
83
NUT , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
84
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
85
WASHER , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
86
SCREW , Replaced By: N308676012012
86
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
87
BRAKE SHOE , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
89
BRAKE LINING (PARTS KIT) 15.3 MM, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
89
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 15.30 MM,8X 341 423 42 10), UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
89
BRAKE LINING (PARTS KIT) (BRAKE LINING 15.30 MM)
89
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING) 15.30 MM
89
BRAKE LINING (PARTS KIT) (BRAKE LINING 16.30 MM)
89
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 16.30 MM
89
BRAKE LINING (PARTS KIT) (BRAKE LINING 16.30 MM)
89
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 16.30 MM
89
BRAKE LINING (PARTS KIT) (BRAKE LINING 17.30 MM)
89
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 17.30 MM
89
BRAKE LINING (PARTS KIT) (BRAKE LINING 17.30 MM)
89
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 17.30 MM
90
RIVET BRAKE LINING 15 MM
90
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 15 MM
91
REPAIR KIT , Replaced By: A3384200289
91
REPAIR KIT BRAKE SHOE SHACKLE, UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
92
PIN SHACKLE TO BRAKE SHOE
96
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
97
PIVOT PIN SHACKLE TO BRAKE SHOE
98
LOCK RING TRANSMISSION CASE,TOP
99
SPRING SHORT
100
SPRING LONG
101
PIVOT PIN BRAKE SHAFT TO BRAKE SHOE
104
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
105
FILLER
106
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
NUT
108
THRUST SHACKLE , Replaced By: A3834200389
108
SHACKLE , 029312 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
109
PIN THRUST SHACKLE TO BRAKE SHOE
110
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
112
PIN BRAKE SHAFT TO THRUST SHACKLE
112
PIN BRAKE SHAFT TO THRUST SHACKLE, 029312 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
113
LOCK BRAKE SHAFT TO THRUST SHACKLE
114
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
115
SCREW , Replaced By: N304017008039
115
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW BRACKET TO SIDE MEMBER
999
PIN
999
PIN STRAP TO CONSOLE
999
TURNBUCKLE , Replaced By: A3859960034
999
GLAND , Replaced By: A0019901967
999
TOOTHED WASHER HANDLE TO RATCHET ROD
999
WASHER , Replaced By: N007349013005
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
WASHER CONSOLE TO FRAME
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW LINE MOUNTING
999
SCREW LINE MOUNTING M 6X16
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
GREASE NIPPLE
999
SNAP RING
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING LINE CONNECTION
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
T-FITTING
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING CONNECTION "2"
999
FITTING ,4 667210
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
SCREW , Replaced By: N304017010055
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
SCREW STRAP TO BRACKET
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW EXHAUST BRAKE SEPARATION POINT
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017010050
999
SCREW , Replaced By: N000933008134
999
RIVET
999
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
WASHER , Replaced By: N000433013010
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
WASHER
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN STRAP TO CONSOLE
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
999
COTTER PIN LEVER TO ROD
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN
999
SCREW , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW , Replaced By: A0029903712
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW ,374026
999
UNION NUT LINE CONNECTION
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER,5 314334 TO BE ADAPTED DURING ASSEMBLY
999
ADHESIVE FOIL GUIDE SIGN
999
GROMMET LINE MOUNTING 19/13 MM
999
NUT FROM BRAKE SHAFT TO BRAKE LEVER
999
BRACKET , Replaced By: A3812711640
999
BRACKET DELIVERY AND SUCTION LINES
999
CLAMP , Replaced By: A6739950001
999
CLAMP , Replaced By: A3609951201
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP LINE MOUNTING
999
WASHER ANTE-FREEZE DEVICE TO STRAP
999
SHIM BEARING BRACKET TO FRAME
999
CONSOLE SPRING LOAD ACCUMULATOR BRAKE CYLINDER
999
CLAMP , Replaced By: N916016008200
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
ANGLE WIRE CABLE TO ENGINE
999
SPACER TUBE , Replaced By: A3604270253
999
LEVER RIGHT,2 068748
999
LEVER , Replaced By: A3604260711
999
LEVER , Replaced By: A3604260611
999
LEVER AT BRACKET, 674067
999
BRAKE LEVER HAND BRAKE
999
RUBBER STRIP , Replaced By: A0009870814
999
REPAIR KIT , Replaced By: A3584200182
999
CONSOLE , FROM IDENT NO. 782539 ALSO INSTALLED ON:500001-599999
999
BASE AIR RESERVOIR
999
CONSOLE AIR RESERVOIR
999
BASE STRAP
999
STRAP , Replaced By: A3464305140
999
LOCK BRAKE SHOE ADJUSTMENT,1 239645
999
BRAKE ANCHOR PLATE RIGHT, UP TO CHASSIS 910369 ALSO INSTALLED ON 500000-501414 FROM CHASSIS 501456-599999 AND FROM CHASSIS 910370 SEE UNIT MICROFICHE 744.300
999
BRAKE ANCHOR PLATE
999
REPAIR KIT BRAKE SHOE MOUNTING BOLT
999
ROD REAR
999
SCREW , Replaced By: N900170012019, +001N913001012000
999
SCREW , Replaced By: A3029900804
999
SCREW , Replaced By: A3544230171
999
REPAIR KIT , Replaced By: A3124201178
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3534200019, +002A3534232810, +016A3079900197
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3524200019, +002A3534232710, +016A3079900197
999
BRAKE SHOE , Replaced By: A3534200019
999
BRAKE SHOE , Replaced By: A3534200819
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
NUT , Replaced By: A3589900051
999
PIPE LINE FROM BRAKE VALVE,CONNECTION "V1",TO PRESSURE GAUGE
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
SHIM , Replaced By: A3604750484
999
BRACKET , TO 001 429 60 44
999
BRACKET BRAKE MASTER CYLINDER
999
LEVER , Replaced By: A3524301323
999
BRACKET , Replaced By: A3524202486
999
LEVER , Replaced By: A3604260711
999
LEVER , Replaced By: A3604260611
999
LINE , Replaced By: A3404204529
999
LINE , Replaced By: A3404204829
999
BRACKET , 656999
999
LINE , Replaced By: A3404202429
999
LINE , Replaced By: A3404203929
999
BEARING BRACKET , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999,673430,673630,673576
999
BEARING BRACKET , UP TO CHASSIS 674067 WITH THE EXCEPTION OF 673430,673432,673497,673550,673576,673628,673629,673630,673631,673890,673916,673917 ,673918,673921,673922,673927
