Поз.
Артикул
Описание

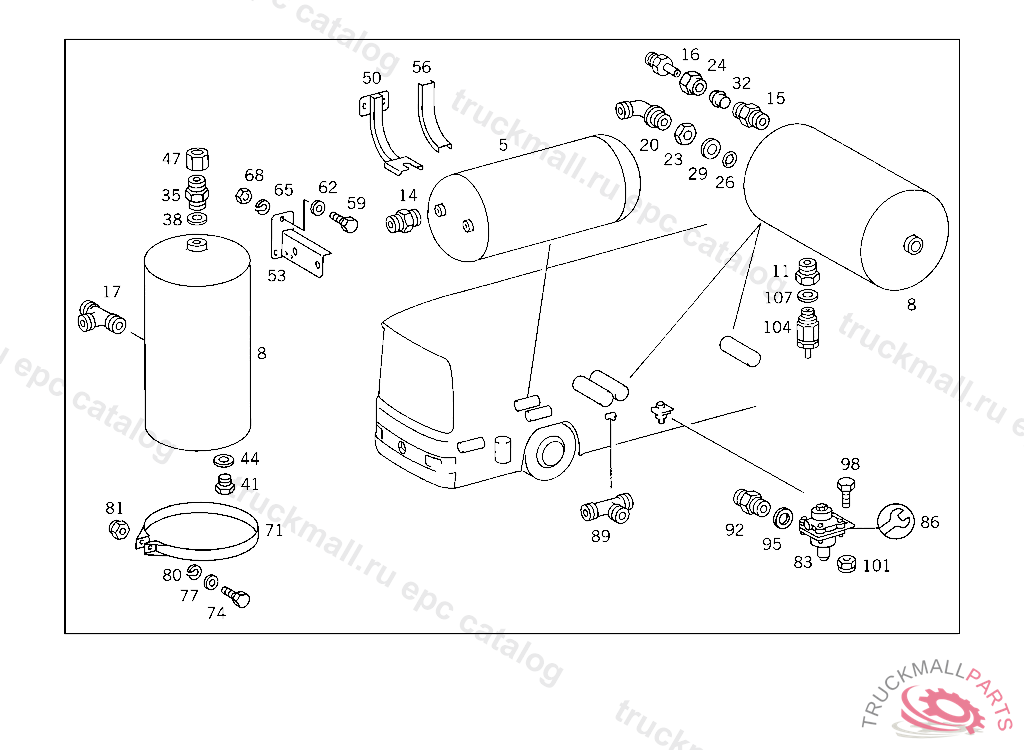

5
RESERVOIR WET AIR RESERVOIR 10 L
5
RESERVOIR WET AIR RESERVOIR 10 L, TO BE ORDERED ONLY FROM MB-T
5
RESERVOIR10L,206 MM,8.5 BAR
5
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
8
RESERVOIR WET AIR RESERVOIR 20 L
8
RESERVOIR WET AIR RESERVOIR 20 L
8
RESERVOIR WET AIR RESERVOIR 20 L
8
RESERVOIR WET AIR RESERVOIR 20 L
8
RESERVOIR WET AIR RESERVOIR 20 L
8
RESERVOIR WET AIR RESERVOIR 20 L, TO BE ORDERED ONLY FROM MB-T
8
RESERVOIR WET AIR RESERVOIR 20 L, TO BE ORDERED ONLY FROM MB-T
8
RESERVOIR WET AIR RESERVOIR 20 L, TO BE ORDERED ONLY FROM MB-T
8
RESERVOIR WET AIR RESERVOIR 20 L, TO BE ORDERED ONLY FROM MB-T
8
RESERVOIR WET AIR RESERVOIR 20 L, TO BE ORDERED ONLY FROM MB-T
8
RESERVOIR COMPRESSED AIR,5 295503
8
RESERVOIR COMPRESSED AIR,5 295503
8
RESERVOIR COMPRESSED AIR,5 295503
8
RESERVOIR COMPRESSED AIR,5 295503
8
RESERVOIR COMPRESSED AIR,5 295503
8
RESERVOIR , Replaced By: A0034321201
11
SCREW RESERVOIR TO BRACKET M 22X1.5X50
14
FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
15
FITTING AT AIR RESERVOIR
16
FITTING RELAY VALVE,CONNECTION: "10",950459
17
T-FITTING INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
20
ELBOW FITTING AT AIR RESERVOIR TO 003 432 02 01
20
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
23
NUT CHECK VALVE TO AIR RESERVOIR
24
UNION NUT LINE CONNECTION, Replaced By: N000000006239
26
O-RING CHECK VALVE TO AIR RESERVOIR
29
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
SEAL CONE LINE CONNECTION
32
GLAND , Replaced By: A0019901967
35
FITTING AT AIR RESERVOIR
35
FITTING AIR RESERVOIR TO BRACKET
38
SEAL RING LINE CONNECTION
41
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
44
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
44
SEAL RING LINE CONNECTION
47
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
50
CONSOLE AIR RESERVOIR
53
CONSOLE AIR RESERVOIR
56
RUBBER SECTION AIR RESERVOIR TO 373 430 00 11
59
SCREW BRACKET TO CROSS CONNECTION STRUT
59
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
62
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER TRAILER PLUG SOCKET TO BRACKET
65
LOCK WASHER RAIL TO BATTERY SUPPORT
68
NUT
68
NUT BATTERY CASE
71
STRAP AIR RESERVOIR TO SUBSTRUCTURE
71
STRAP AIR RESERVOIR TO SUBSTRUCTURE
74
SCREW BRACKET TO SIDE MEMBER
74
SCREW , Replaced By: N304017010002
74
SCREW EXHAUST PIPE TO BRACKET
77
WASHER RADIATOR TO RUBBER MOUNTING
77
WASHER GROUND CABLE
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
LOCK WASHER FUSE
81
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
86
REPAIR KIT DRAIN VALVE
89
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
92
FITTING LINE CONNECTION, Replaced By: N000000006446
95
SEAL RING LINE CONNECTION
98
SCREW PIPE CLAMP
98
SCREW , Replaced By: N304017008021
101
NUT BRACKET TO SIDE MEMBER
104
VALVE (DRAIN VALVE)
104
VALVE DRAIN, Replaced By: A0004322107
104
VALVE. DRAIN VALVE DRAIN
104
VALVE , Replaced By: A0004322407
104
VALVE DRAIN, Replaced By: A0004322407
107
SEAL RING LINE CONNECTION
