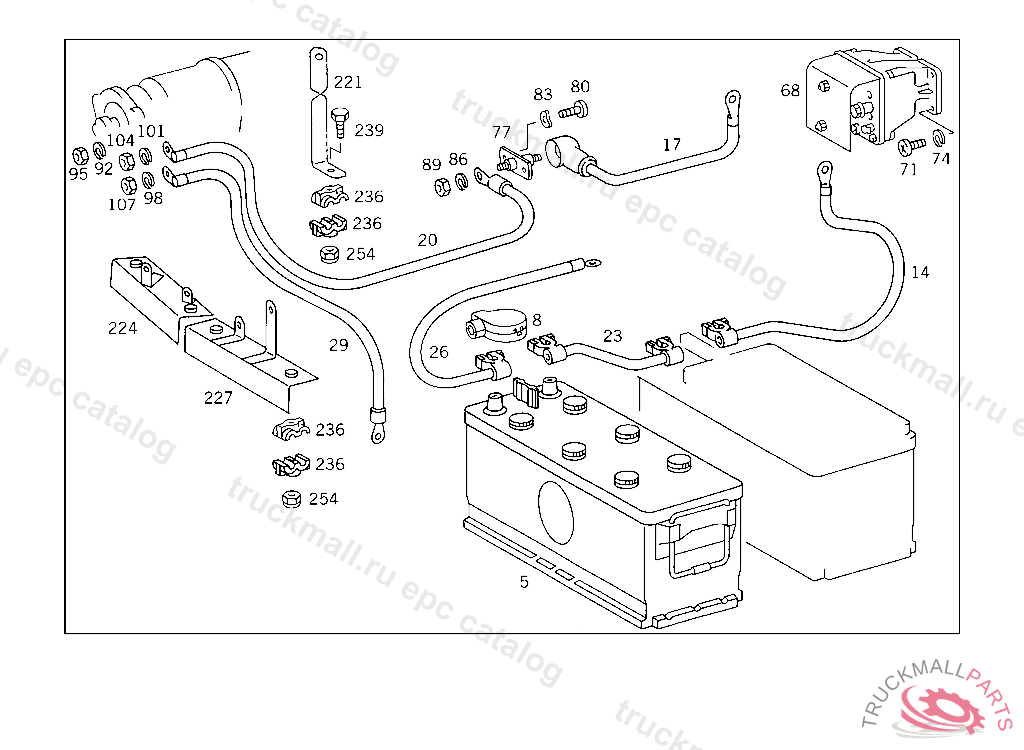

Поз.
Артикул
Описание
5
BATTERY , Replaced By: A0025413701
8
BOOT , Replaced By: A0005464635
8
BOOT , Replaced By: A0005464635
68
RELAY (BATTERY MASTER SWITCH)
71
SCREW JUNCTION BOX TO BRACKET
74
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
NUT SPRING-LOADED PUSH ROD
95
NUT BALL PIVOT TO LEVER
98
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
LOCK WASHER FITTING TO BRACKET
104
NUT STRAP TO SUPPORT,5 149419
107
NUT BATTERY CABLE
107
NUT BRACKET TO SUPPORT AND TO END PIECE
254
NUT OIL TANK TO BRACKET
999
POS.CABLE FROM BATTERY TO RELAY
999
GROUND STRAP FROM BATTERY I TO BATTERY II
