Поз.
Артикул
Описание

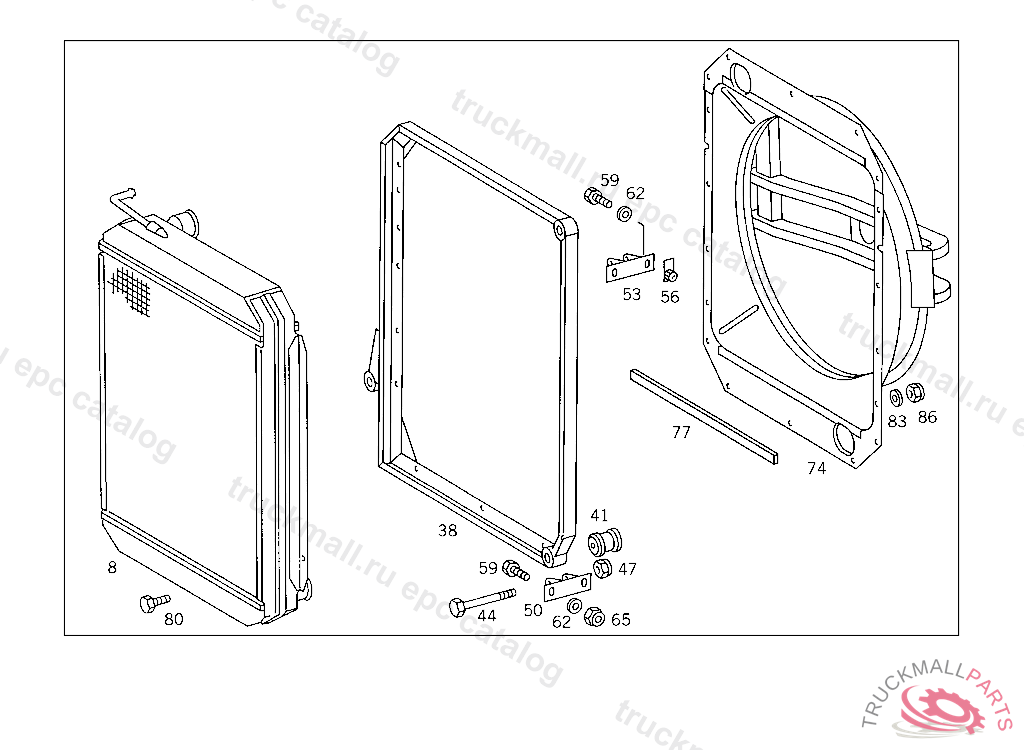

8
RADIATOR
38
SUPPORT RADIATOR BASE FRAME,000475
41
BUFFER BEARING BRACKET TO BRACKET
44
SCREW
44
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
47
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
47
NUT , Replaced By: N910113012003
50
STAY , UP TO CHASSIS 002229,FROM CHASSIS,SEE STANDARD VERSION
53
STAY BEARING BRACKET FOR BASE FRAME
56
BRACKET , Replaced By: A3184923441
59
SCREW END PIECE TO EXHAUST PIPE M 10X25
62
WASHER RADIATOR TO RUBBER MOUNTING
62
WASHER , Replaced By: N000125010532
65
NUT , Replaced By: N910113010000
74
SUPPORT FAN
77
GASKET FAN,000475002229
80
SCREW CLAMP TO BRACKET AND TO PIPE
83
WASHER , Replaced By: N000125008443
86
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
NUT , Replaced By: N913004008001
