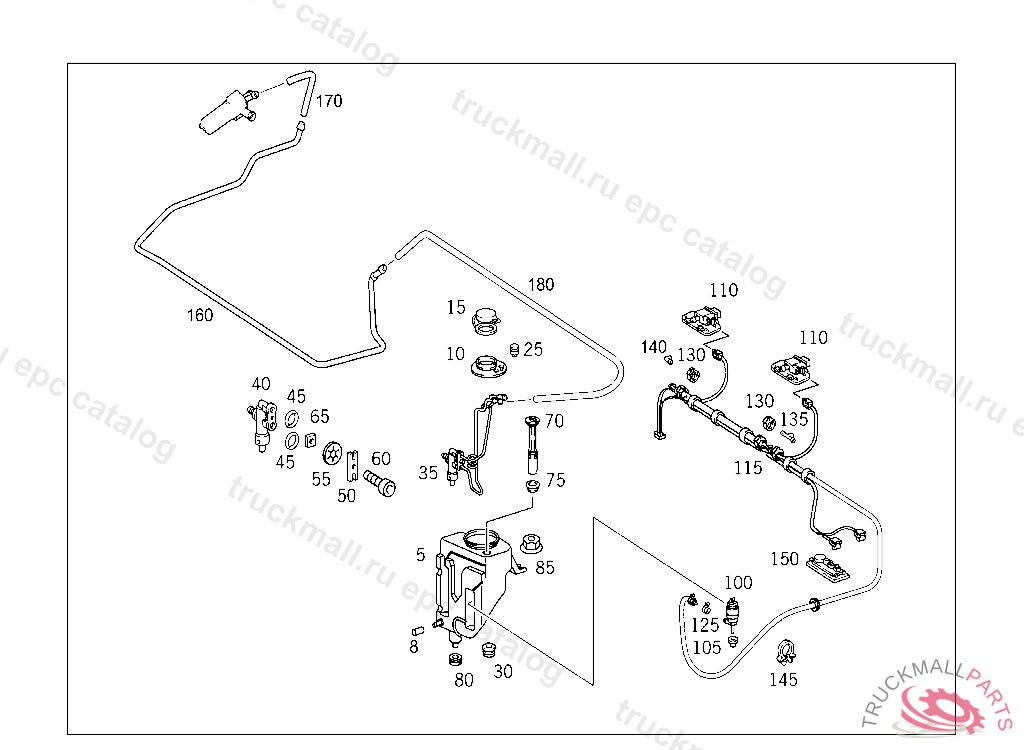

Поз.
Артикул
Описание
5
RESERVOIR. DASHPOT PANE WASHER SYSTEM
8
PROTECTIVE CAP FITTING,CHARGE PRESSURE SENDER UNIT
10
COVER
15
FILLER CAP PANE WASHER, F 194663
15
FILLER CAP , Replaced By: A2028609369
25
GROMMET
30
PLUG TO PLUG THE HOLES USED FOR HEADLAMP WASHER 19 MM
35
HEATER PANE WASHER, HEATED TO A 2108691220
40
VALVE , F 184896
45
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
50
CONNECTION , F 184896
55
TOOTHED WASHER , F 184896
60
SCREW BEARING BRACKET TO TRANSMISSION
65
NUT , F 184896
70
SENDER UNIT WINDSHIELD WASHER WATER LEVEL, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
75
GROMMET
80
GROMMET BRAKE CABLE TO REAR AXLE
85
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
100
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
100
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
105
GROMMET CENTRIFUGAL PUMP CONNECTION
110
NOZZLE LEFT, B 12924320000331 X 04135920000412
110
NOZZLE ENGINE HOOD
115
HOSE PANE WASHER, HEATED, B 12924220000331 X 07063020010928
115
HOSE PANE WASHER, NOT HEATED, B 12924220000331 X 07063020010928
115
HOSE HEATED SCREEN WASH SYSTEM, B 12924320000331 X 04135920000412
115
HOSE PANE WASHER, NOT HEATED, B 12924320000331
125
CLAMP
125
CLAMP
130
LOOM TIE
135
CONNECTOR
140
CONNECTOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 131644 F 047890, Replaced By: A1248690024
145
CLAMP
150
PLATE ,F 084208
160
PIPELINE RETURN, PANE WASHER WATER HEATING
160
PIPELINE RETURN, PANE WASHER WATER HEATING, B 49890020020215
170
HOSE , B 14973520000331 X 07063120010928
170
HOSE RETURN, PANE WASHER WATER HEATING
180
HOSE FEED, HEATED WINDSHIELD WASHER,B 655336C 096886 TO BE ADAPTED DURING ASSEMBLY
180
HOSE RETURN, PANE WASHER WATER HEATING, Replaced By: A2108320894
