Поз.
Артикул
Описание

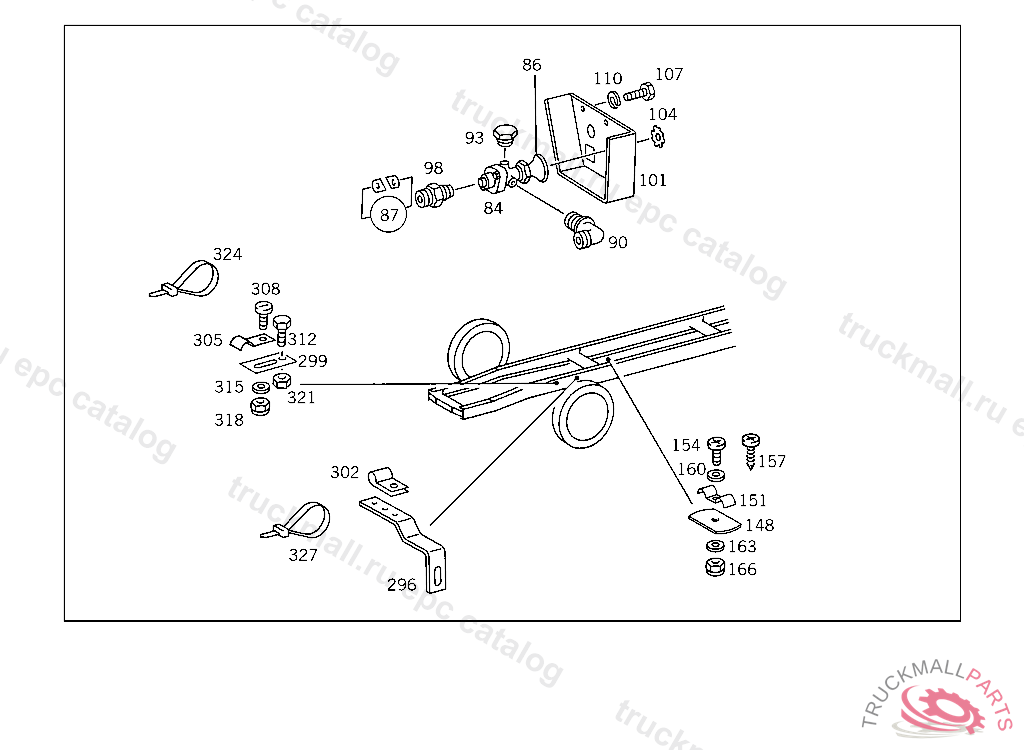

84
VALVE PARKING BRAKE
86
HANDLEKNORR
87
REPAIR KIT PARKING BRAKE
90
FITTING PARKING BRAKE VALVE
93
SCREW PLUG PARKING BRAKE VALVE
98
CONNECTOR THREE-WAY VALVE
101
BRACKET PARKING BRAKE VALVE
104
TOOTHED WASHER TWO-WAY VALVE TO BRACKET
107
SCREW BRACKET TO WINDOW SILL GIRDER
110
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
148
BRACKET , Replaced By: A3184280240
151
CLAMP
154
SCREW FUEL LINE TO BRACKET
157
SHEET METAL SCREW , Replaced By: N007981004258
160
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
163
WASHER , Replaced By: N000433005304
166
NUT , Replaced By: N913004006001
296
BRACKET FUEL LINE
299
BRACKET AT CROSS MEMBER
302
CLAMP LINE MOUNTING
305
CLAMP BRAKE HOSE BRACKET
308
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
312
SCREW REAR EXHAUST PIPE TO MUFFLER
315
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
315
WASHER GROUND CABLE
318
NUT , Replaced By: N913004006001
321
NUT , Replaced By: N910113010000
324
LOOM TIE LINE MOUNTING
327
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
999
SEAL RING42.52X2.62 MM,WABCO
999
SEAL RING82.22X2.62 MM,WABCO
999
SEAL RING , Replaced By: A0179979048
999
SEAL RING74.20X5.70 MM,WABCO
999
CUPTO 001 431 65 14
999
PROTECTIVE CAP ,4 390315
999
REPAIR KIT RELAY VALVE WABCO
999
REPAIR KIT
999
SPRING ,4 390315
999
VALVE SEATWABCO
