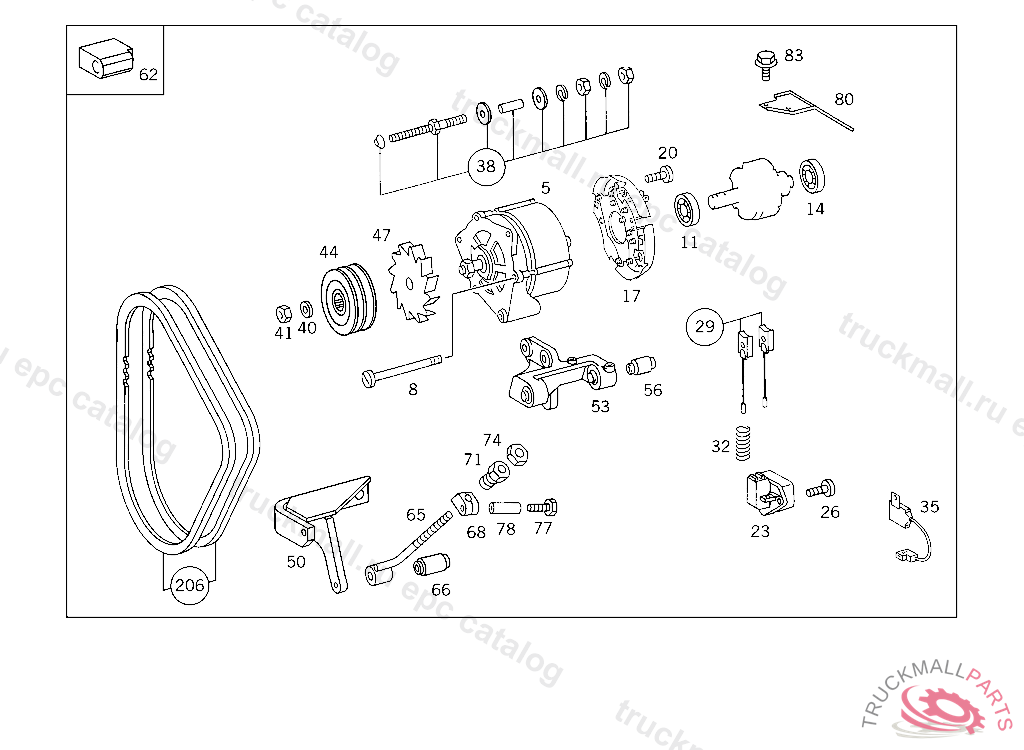

Поз.
Артикул
Описание
5
ALTERNATOR28V 10/80A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
ALTERNATOR28V 20/65A
8
SCREW
8
SCREW
11
BALL BEARING , Replaced By: A0079816625
11
BALL BEARINGTO 007 154 27 02, 009 154 07 02
14
BALL BEARINGTO 007 154 27 02, 009 154 07 02
14
BALL BEARING , Replaced By: A0089811225
17
RECTIFIER
17
RECTIFIER , Replaced By: A0011542116
20
SCREW T-FITTING TO BRACKET M4X25
23
REGULATORTO 007 154 27 02
26
SCREW REGULATOR MOUNTING TO 009 154 07 02
29
CARBON BRUSH SETTO 009 154 07 02
29
CARBON BRUSH SET , Replaced By: A0001548114
32
SPRING
35
CONDENSER
38
TERMINAL TERMINALS: B+, B-, D+, W
40
WASHER PULLEY TO ALTERNATOR
41
NUT WEAR INDICATOR
44
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
44
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
47
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
50
BRACKET ALTERNATOR, FROM ENGINE 357744 YEAR OF MANUFACTURE 1994
53
BRACKET ALTERNATOR
56
BUSHINGTO 355 150 03 72,366 150 13 72
56
BUSHINGTO 366 150 06 73
62
BRACKET CLAMPING BOLT TO BRACKET
65
CLAMPING BOLT FOR V-BELT TENSIONING
65
CLAMPING BOLT (CLAMPING BOLT)
65
CLAMPING BOLT (CLAMPING BOLT)
65
CLAMPING BOLT , Replaced By: A3551500372
66
BUSHING
66
BUSHINGTO 355 150 03 72,366 150 13 72
68
CLAMPING PIECE TIGHTENER PULLEY
71
NUT TIGHTENER PULLEY TO LEVER
74
NUT BRACKET TO SIDE MEMBER M12X1.5
74
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
77
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
78
SPACER TUBE CLAMPING SHACKLE TO WATER PUMP
80
COVER PLATE
83
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
206
V-BELT TOOTHED,SET2 PIECES 12.5X1693 MM
206
V-BELT SET2 PIECES 13X1350
999
NUT STRAP TO SUPPORT
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW BRACKET TO SIDE MEMBER
999
BRACKET BRACKET TO ALTERNATOR SUPPORT
999
SUPPORT ALTERNATOR
