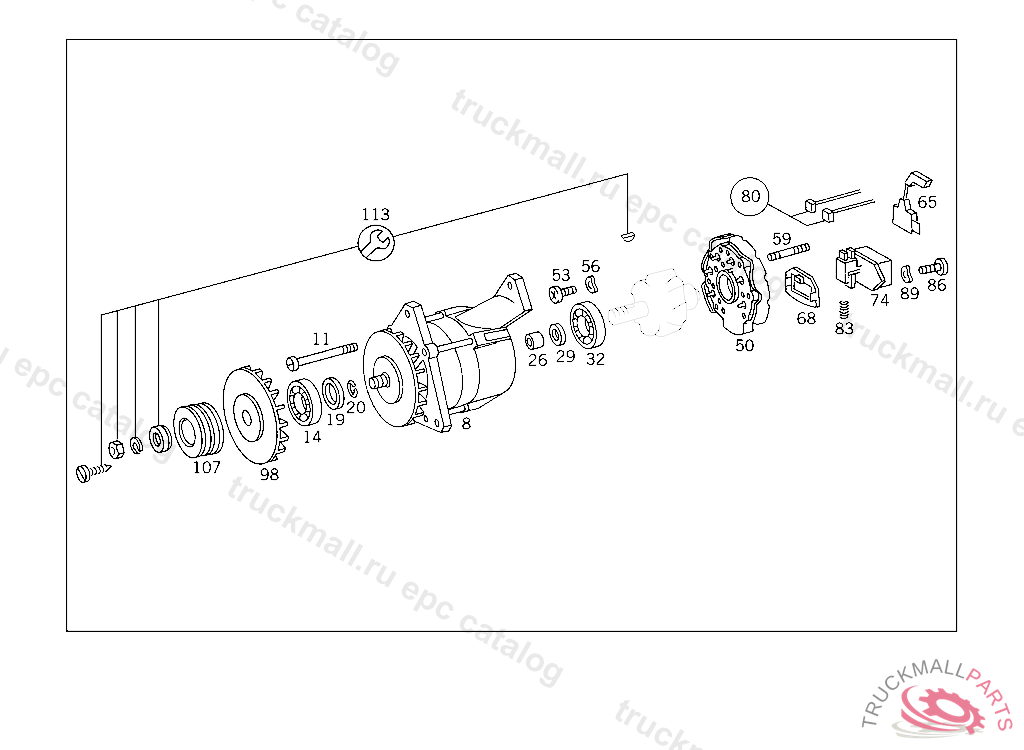

M 366 LAG - 376.924 - 15 ELECTRICAL EQUIPMENT
Поз.
Артикул
Описание
8
ALTERNATOR
11
SCREW
14
GROOVED BALL BEARING DRIVE END BEARING 005 154 45 02/84 02
19
SEAL RING , NOT USED
20
SNAP RING
26
SPACER RING
29
SEAL RING
32
CYLINDR. ROLLER BEARING
50
RECTIFIERTO 005 154 45 02,006 154 86 02
53
SCREW
56
SPRING WASHER ALTERNATOR CONNECTION D+
59
STUD
65
CONDENSER
68
GASKET
68
GASKET
74
REGULATOR AND CUT-OUT
80
CARBON BRUSH SETTO 008 154 78 02
83
SPRING
86
SCREW , Replaced By: N007985004130
89
SPRING WASHER ALTERNATOR CONNECTION D+
98
FAN
107
PULLEY
113
REPAIR KIT ROTOR TO 007 154 28 02
