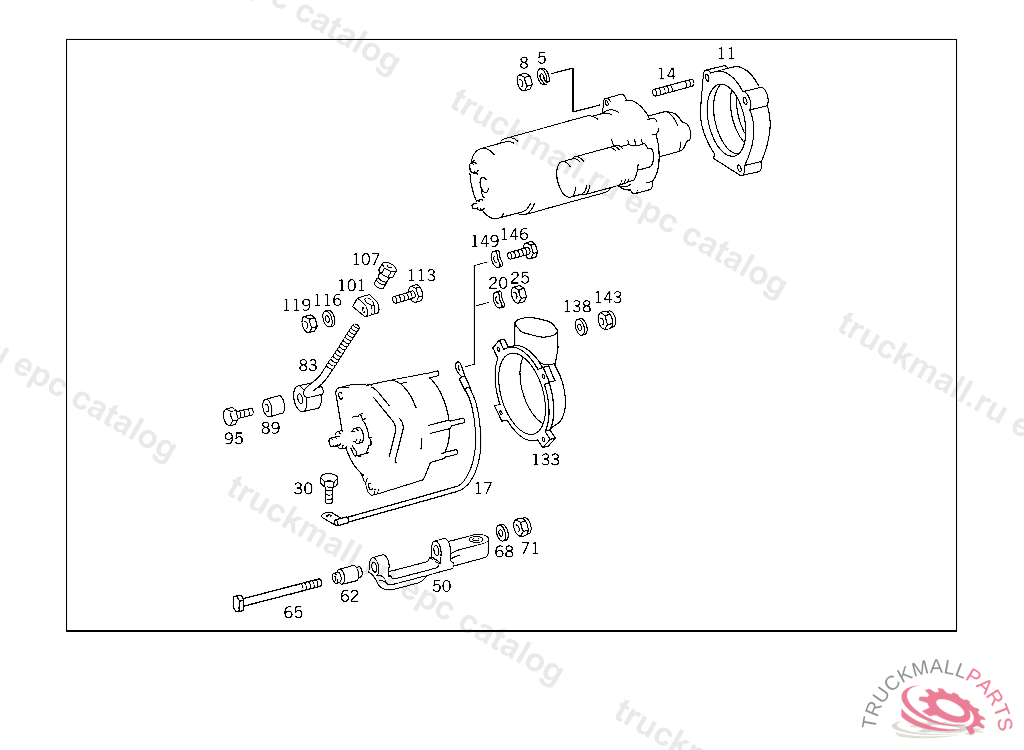

Поз.
Артикул
Описание
11
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE
14
STUD BOLTTO 345 251 03 01
17
GROUND STRAP ,396803
20
SPRING WASHER , Replaced By: N000137008204
25
NUT COVER TO CASE
30
SCREW SUPPORTING ARM TO ENGINE
30
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X1.5X115
50
BRACKET ALTERNATOR
62
BUSHING
65
BOLT. SCREW SUPPORT TO ALTERNATOR
83
CLAMPING BOLT (CLAMPING BOLT)
89
BUSHINGTO 355 150 03 72,366 150 13 72
89
BUSHING
95
SCREW CLAMPING BOLT TO CYLINDER CRANKCASE M 10X38
101
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
107
NUT TIGHTENER PULLEY TO LEVER
113
SCREW BRACKET TO FRAME
