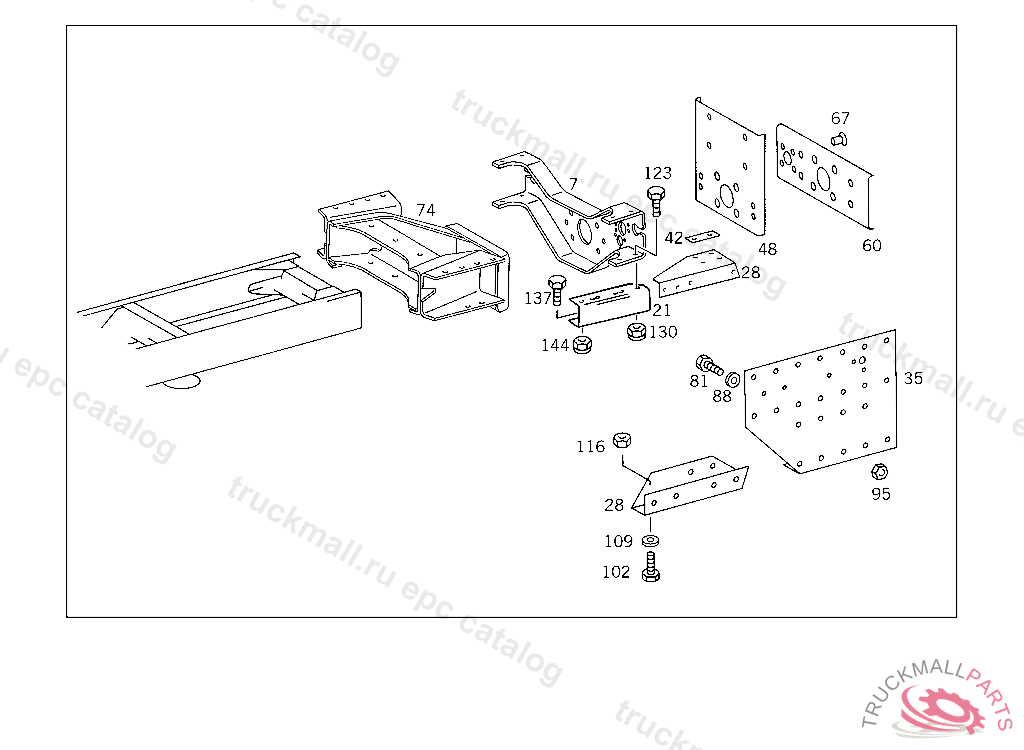

Поз.
Артикул
Описание
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER BOTTOM,5 199637
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER
7
CROSS MEMBER , Replaced By: A3853100246
7
CROSS MEMBER , Replaced By: A3803100046
21
SIDE MEMBER
28
GUSSET PLATE ,5 199637
28
GUSSET PLATE ,5 199637
35
REINFORCEMENT RIGHT
35
REINFORCEMENT LEFT
42
SHIM GUSSET PLATE TO CROSS MEMBER,5 199637
48
REINFORCEMENT
60
REINFORCEMENT
67
RIVET FRAME TRUSS TO SIDE MEMBER
67
RIVET REAR CROSS MEMBER 10X38 MM
67
RIVET REAR CROSS MEMBER 12X42 MM
74
STRUT REAR CROSS MEMBER TO SIDE MEMBERS
81
SCREW MOUNTING TO CONSOLE M 14X35
81
SCREW STEERING SUPPORT TO FRAME M 14X55
81
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
81
SCREW BRACKET TO FRAME M 12X35
81
SCREW , Replaced By: N308676014008
81
SCREW , Replaced By: N308676012016
81
SCREW REINFORCEMENT TO SIDE MEMBER M 14X55
88
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
95
NUT STEERING SUPPORT TO FRAME
95
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
95
NUT , Replaced By: N910113014000
95
NUT , Replaced By: N910113012003
102
SCREW , Replaced By: N308676014012
102
SCREW , Replaced By: N308676014008
102
SCREW CROSS MEMBER TO REINFORCEMENT M 20X1.5X45
102
SCREW SUPPORT TO SIDE MEMBER M 14X45
102
SCREW MOUNTING TO CONSOLE M 14X35
109
WASHER CROSS MEMBER TO REINFORCEMENT
109
SHIM CROSS MEMBER TO REINFORCEMENT
116
NUT STEERING SUPPORT TO FRAME
116
NUT CROSS MEMBER TO REINFORCEMENT
116
NUT , Replaced By: N913004020003
116
NUT , Replaced By: N910113014000
123
SCREW , Replaced By: N308676012011
123
SCREW , Replaced By: N308676012026
123
SCREW , Replaced By: N308676012012
123
SCREW , Replaced By: N308676012031
123
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
123
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
123
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
123
SCREW CONSOLE TO SIDE MEMBER
123
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
130
NUT SUPPORT TO SIDE MEMBER
137
SCREW EXHAUST PIPE TO BRACKET
137
SCREW BRACKET TO SIDE MEMBER
137
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
137
SCREW , Replaced By: N308676014020
137
SCREW , Replaced By: N304017010002
137
SCREW BRACKET TO SIDE MEMBER
144
NUT , Replaced By: N910113014001
144
NUT , Replaced By: N910113010000
144
NUT STRAP TO BRACKET
144
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
CROSS MEMBER (REAR CROSS MEMBER)
999
REINFORCEMENT RIGHT
999
REINFORCEMENT LEFT
999
GUSSET PLATE BOTTOM RIGHT
999
GUSSET PLATE BOTTOM LEFT
999
CROSS MEMBER , Replaced By: A3853100246
999
CROSS MEMBER REAR,4 276784
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
